Home > Products > YuChai Marine Engine > 420HP Marine Diesel Engine
420HP Marine Diesel Engine
US$ 1,000 - 50,000
/ Set
1 Set(Min. Order)
- Confirm by Customer
- T/T Money Gram
You May Like
Product Details
| Condition | New | Engine | 4 Stroke | |
| Engine Capacity | 1 - 2L | Fuel Type | Diesel | |
| Cylinders | 6 | Engine Position | Inboard | |
| Dimensions (L x W x H) (mm) | 2072X1105X1644 |
Product Description
1. Technology parameters 6 cylinder diesel engines marine
inboard diesel engines

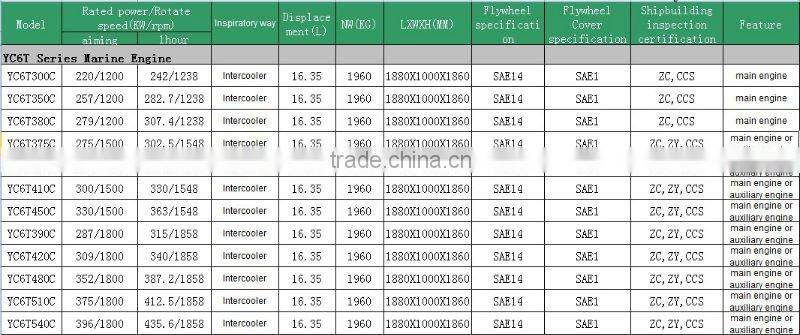

| YC6T series technical parameters | ||||||
| Model | YC6T390C | YC6T420C | YC6T480C | YC6T510C | YC6T540C | YC6T380C |
| Type | 6 cylinders ,Vertical in line water cooled four-stroke direct-injection | |||||
| Number of cylinders bore*stroke | 6*145*165mm | |||||
| Intake way | Turbo and charge air cooled | |||||
| Displacement (L) | 16.35 | |||||
| Compression ratio | 15.5:1 | |||||
| Continuous Power/Speed (Kw/r/min) | 287(390)/1800 | 309(420)/1800 | 352(480)/1800 | 375(510)/1800 | 396(540)/1800 | 279(380)/1200 |
| One-hour Power/Speed (Kw/w/min) | 315(429)/1858 | 340(462)/1858 | 387(528)/1858 | 413(561)/1858 | 436(594)/1850 | 307(418)/1238 |
| Min.specific fuel consumption | 195(g/kw.h) | |||||
| Specific oil consumption | <1.0(g/kw.h) | |||||
| Oil Capability (L) | 52 | |||||
| Min.steady speed (r/min) | 700 | 540 | ||||
| Rotation direction | counterclockwise | |||||
| Starting | Electric motor | |||||
| Net Mass (kg) | 1960 | |||||
| Overall dimensions (mm) | 1880*1000*1860 | |||||
| Reduction gearbox to be matched | 300 J300 D300 | |||||
| Certificate | ZC ZY CCS | |||||
| Model | YC6T375C | YC6T400C | YC6T410C | YC6T450C | YC6T300C | YC6T350C |
| Type | Vertical in line water cooled four-stroke direct-injection | |||||
| Number of cylinders bore*stroke | 6*145*165mm | |||||
| Intake way | Turbo and charge air cooled | |||||
| Displacement (L) | 16.35 | |||||
| Compression ratio | 15.5:1 | |||||
| Continuous Power/Speed (Kw/r/min) | 276(375)/1500 | 294(400)/1500 | 300(410)/1500 | 330(450)1500 | 220(300)/1200 | 257(350)/1200 |
| One-hour Power/Speed (Kw/w/min) | 304(413)/1548 | 323(440)/1548 | 330(451)/1548 | 363(495)/1548 | 242(330)/1238 | 283(385)/1238 |
| Min.specific fuel consumption | 195(g/kw.h) | |||||
| Specific oil consumption | <1.0(g/kw.h) | |||||
| Oil Capability (L) | 52 | |||||
| Min.steady speed (r/min) | 675 | 540 | 540 | |||
| Rotation direction | counterclockwise | |||||
| Starting | Electric motor | |||||
| Net Mass (kg) | 1960 | |||||
| Overall dimensions (mm) | 1880*1000*1860 | |||||
| Reduction gearbox to be matched | 300, J300 D300 | |||||
| Certificate | ZC ZY CCS | |||||
| Features of the engine | ||||||
| YC6T was coalesces advance diesel technology from Germany,Japan,USA by YuChai,And in the light of the ship requires special use development of a new generation of power,Is all kinds of ship ideal matching power. | ||||||
| Reliable And Durable | ||||||
| Bace on engine development,YuChai 6T Follow strict mechanical development validation norms; All the research and development of product of all pass depth cold and hot shock test,high temperature,high cool test,The crankshaft fatigue test of more than ten validation,Up to 20000 hours bench test durability | ||||||
| The machine adopts cast iron, higher strength | ||||||
| The whole of the crankshaft forging steel, improve the fatigue strength and wear resistance | ||||||
| High strength alloy connecting rod, movement is more reliable | ||||||
| Cold oil in the way the pistons, a ring cooling technology, reduce the temperature of the piston, machine oil consumption, improve the piston reliability | ||||||
| The cylinder head is a cylinder with a cover four valve structure, convenient maintenance: cylinder head bolts are cloth, stress even | ||||||
| The gas distribution system, high camshaft decorate, short and thick push rod, roller's column, high reliability | ||||||
| From casting to assembly advanced equipment and the quality control means to ensure higher quality | ||||||
| Fuel-efficient save money | ||||||
| AVL four valve technology, greatly increased in, exhaust circulation area, more uniform atomization, burning more fully | ||||||
| P pump, P mouth, the injection pressure higher, ability to work more strong, injector and combustion chamber reasonable matching, mixing, fuel atomization best quality | ||||||
| Hall Seth/federal supercharger economic condition wide | ||||||
| Greatly reduce mechanical loss more than 15%, pump gas loss more small, costs reduced | ||||||
| And compared with power engine, fuel consumption reduce 10-15% | ||||||
| Safety and Comfort | ||||||
| Can choose fresh water cooling exhaust pipe, make the engine room temperature is lower | ||||||
| Can choose electricity gas double energy startup, meet the chemical and other special ships safety requirements | ||||||
| AVL four valve technology, effectively reduce the engine exhaust noise | ||||||
| Rear gears and advanced point line mesh technology, transmission machinery noise more small | ||||||
| Yuchai marine engines include nine series, i.e.YC6C,YC6T,YC6M,YC6A,YC6B,YC6108,YC6105,YC4D and YC4F, with a power coverage | ||||||
| of 32 to 880KW featuring with lower fuel consumption,smaller vibration,lower noise,higher reliability and stronger power. | ||||||
| They are used as the ideal power for speedboats,cargo ships ,passenger ships and fishing vessels. | ||||||
| Yuchai diesel engine products for power generator & gensets include several series,such as YC6C,YC6T,YC6M,YC6A,YC6B,YC6J | ||||||
| YC6G,YC4D,YC4F which are the ideal matching power for gensets with capacity of 24-600KW | ||||||
| The fully new T series dieesel engine is designed by YuChai Machinery Co.Ltd. Itself to satisfy the need. of the marketFEV, | ||||||
| the famous engine technology corporation in German,comblined with the advanced designing ideal,technology and the experience | ||||||
| of Yuchai,it is developed reliably.This series diesel engine has characteristics such as wide power range,low emissions,low | ||||||
| BSFC, low noise,high reliability and universal applicability. | ||||||
| YC6T series marine diesel engine is redesigned based on the YC6M series vehicle diesel engine in light of operation require | ||||||
| ment and structure feature of the marine diesel engine.The reformed engine has the advantages such as high reliability,large | ||||||
| power output and good fuel economy.It becomes the ideal power for freight and passenger ship. | ||||||
(1)AVL four valve technology, greatly increased in, exhaust circulation area, more uniform atomization, burning more fully
P pump, P mouth, the injection pressure higher, ability to work more strong, injector and combustion chamber reasonable matching, mixing, fuel atomization best quality
(2)Hall Seth/federal supercharger economic condition wide
(3)Greatly reduce mechanical loss more than 15%, pump gas loss more small, costs reduced
And compared with power engine, fuel consumption reduce 10-15%

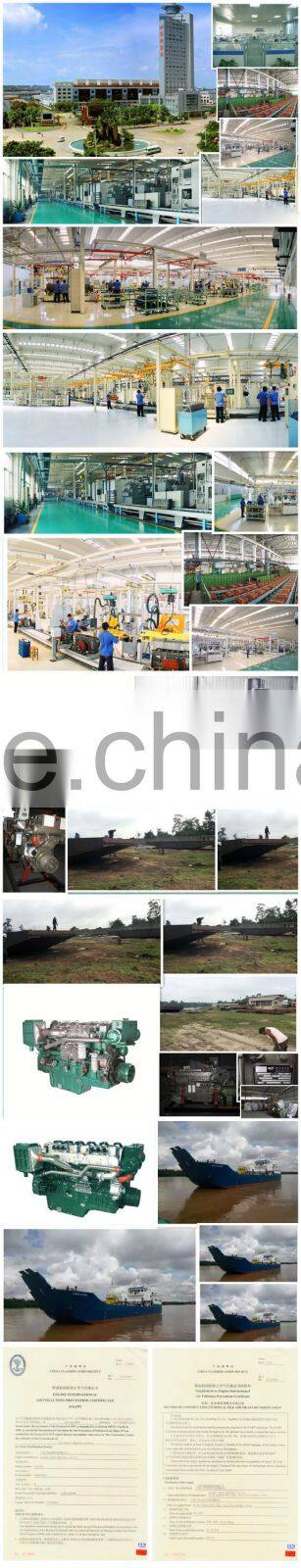

2.Production process
