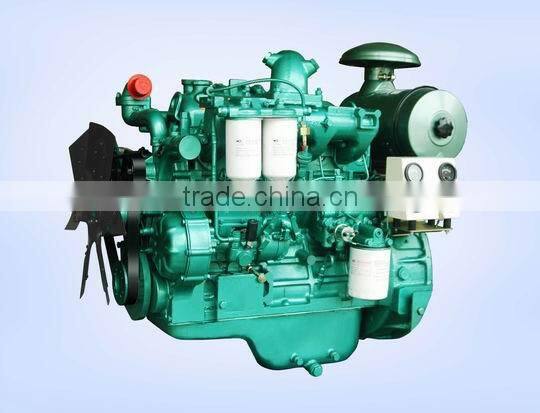

4 Cylinders Diesel Engine for Gen Set
US$ 2,000 - 5,500
/ Set
1 Set(Min. Order)
- ShenZhen GuangDong China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Usage | Other, Genset, Pump, machinery | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Other, 4-6 | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Guangxi, China | |
| Brand Name | Yuchai | Model Number | YC4D | |
| Dimension(L*W*H) | 870*670*800 | Weight | 370kg | |
| Certification | CE BV ISO and so on | Warranty | 1200 hours | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
4 Cylinder Diesel Engine 8-250 KW power,low fuel oil consumption,compact size,green environment,less vibration,1500 RPM
Features & Benefits
1.Cooperated with FEV, German
2.Cylinder and cylinder head made of alloy cast iron, integrated crankshaft, sliding bearing, smaller bulk, high reliability and light weight, overhaul interval is over 10000 Hours
3. I type intensified pump, high injection pressure, low fuel consumption
4.Optional electronic speed governing pump
5.Seal technology for piston ring, low oil consumption
6.Perfect G-drive for 20-50 KW generator sets
| Description | Technical specification | ||||||||
| Model | YC4108D | YC4108ZD | YC4D75D | YC4108ZD | |||||
| Type | Vertical,in-line,water-cooled,four stroke | ||||||||
| Intake way | Natural aspiration | Turbo-charging | |||||||
| Combustion chamber type | Direct injection, ω-shape port combustion chamber | ||||||||
| No. of cylinder | 4 | ||||||||
| Cylinder diameter mm | 108 | ||||||||
| Piston stroke mm | 115 | ||||||||
| Displacement L | 4.214 | ||||||||
| Compression ratio | 17:01 | 17.5:1 | |||||||
| Net weight kg | 360 | 370 | |||||||
| Sustained power/speed (KW / r / min) | 40/1500 | 44/1800 | 50/1500 | 55/1500 | 55/1800 | 66/1800 | |||
| Speed and power in 1 hour r/min | 44/1500 | 48/1800 | 55/1500 | 60.5/1500 | 58/1800 | 72.5/1800 | |||
| L Oil capacity | 11~13 | ||||||||
| Crankshaft rotation direction | Anticlockwise | ||||||||
| Fuel consumption g/(kW·h) | ≤208 | ≤205 | |||||||
| Oil consumption ratio g/(kW·h) | ≤1.8 | ||||||||
| Noise limit dB(A) | ≤108 | ≤109 | |||||||
| Size | 870×670×780 | 870×670×800 | |||||||
| Cold start | Easily started at -5°C without any cold start auxiliary device. Can be started at -30°C with cold start auxiliary device. | ||||||||
| (m) | 1000 | ||||||||
| Applicable altitude | |||||||||
New Engine for Genset!!! 4 Cylinder Diesel Engine
Advanced Technology Cooperated with FEV, Germany.
Professional & Global Service Certificated Quality
