100L Red Copper Beer Equipment , Supply Bars,pubs Draft Beer

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Haolu	Model Number	HL-100
Processing Types	Other, wheat & barley	Voltage	110-380V
Power(W)	10-30KW	Dimension(LWH)	According to your need
Weight	1000-3000KG	Certification	CE & ISO
Warranty	One year	After-sales Service Provided	Engineers available to service machinery overseas

1 high quality of the brewing equipment
2 competitive price
3 highly automatic
4 material: sus 304 or red copper

Welcome your inquiry

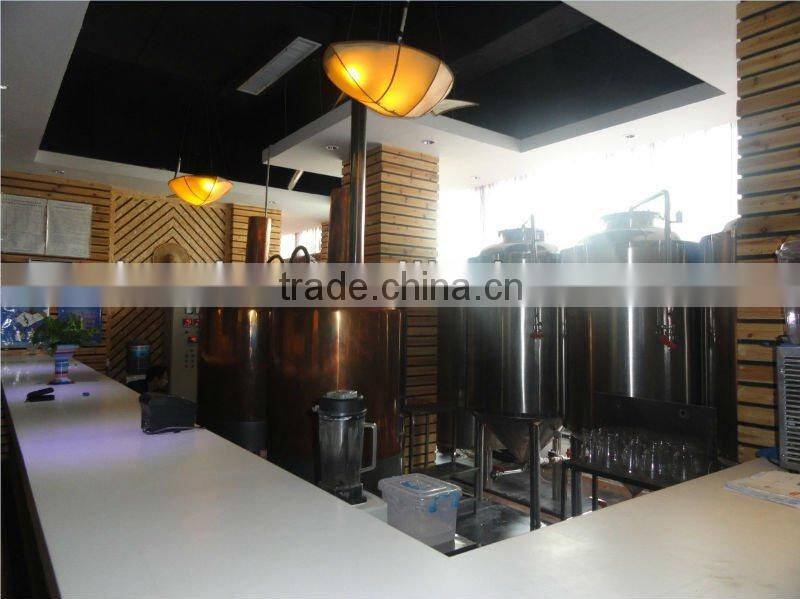

Our beer equipment can be used in restaurant, hotel, pub,

micro brewery, laboratory room, home or other places

based on your practical demand. We have bottle filing

machine or keg filling machine for optional.

Technical specification

Outside surface	RED COPPER,THK:1.5mm-3mm
Inner surface	S.S.304,THK:2mm-4mm
Top shape	Seal head or conical head
Heating method	Natural gas/electricity/LPG/direct fire
Insulation layer	Protected by rock wool,THK:70-100mm
Polishing	≤0.4µm
Manhole	Side upward
Spral ball	In the center of the inside tank
Agitator	Raking system connected into a top reducer
Chimney	On the top of the tank

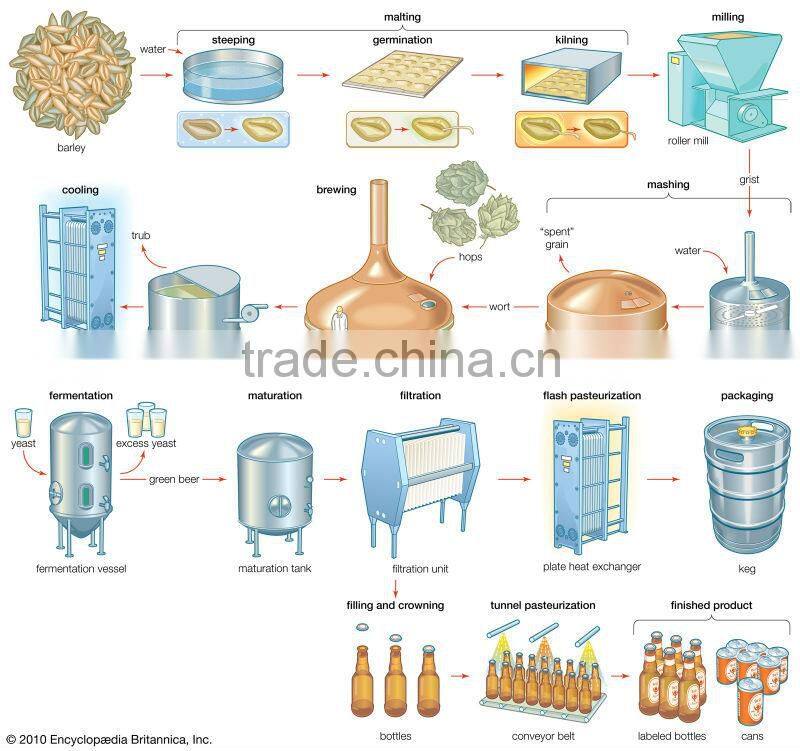

Working process of this beer equipment :

Item : Equipment list		Name
Milling System	01	Malt Miller
Saccharification System	01	Boil spin heavy pot (red copper)
	02	Saccharification filter slot (red copper)
	03	Saccharification wort pump
	04	Saccharification pipelines and valves
	05	Plate heat exchanger
	06	Platinum resistance temperature instrument
Fermentation System	01	Fermentation tank
Fermentation System	02	Fermentation pipelines and valves
	03	Platinum resistance Temperature instrument
Refrigeration System	01	Glycol ice water tank
	02	Refrigerating Unit
	03	Ice water circulating pump
	04	Ice water pipelines and valves
	05	Platinum resistance Temperature instrument
Washing and sterilization System	01	Washing pump
	02	Alkali liquor washing tank
	03	Alkali liquor washing tank
Control System	01	Saccharification Control
	02	Fermentation Control
	03	Refrigeration Control
	04	Washing Control
Accessory	01	&25 Hose
	02	&38 Wired hose
	03	Iron shell thermometer
	04	Stainless steel four- way valves
	05	Stainless steel reducing nipple
	06	Butterfly pads
	07	Brix plan with temperature
	08	Inflatable head
	09	Bad rake exit
	11	Measuring cylinder

After- Sale Service guaranty:

1) Assistant customer and in designing and planning plant rooms

2) Free installing and testing at job site.

3) One engineer service one client, 24 hours service line.

4). Free 1 years guarantee, lifetime warranty

5). The equipment are checked at your site by our engineer
