Home > Products > optical seamless splicing > 49'' Optical Seamless Splicing LCD Video Wall new technology

49'' Optical Seamless Splicing LCD Video Wall new technology

FOB Price

US$ 1 - 2,250 / Unit

1 Unit(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	User(or OEM)_Floor Standing Video Wall
Model Number	US-PJ4901HD-Floor Standing Video Wall	Type	Other, DID-lcd video wall
Application	Indoor	Panel Size	49'' DID LCD Panel
Max Resolution	1920x1080	Viewing Angle	178°
Pixel Pitch	0.5593(H)*0.5593(V)	Color	8Bit,16.7M
Contrast Ratio	3000:1	Brightness	450cd/㎡
Response Time	<=8ms	Input Voltage	AC100~240V 50 /60 HZ

Product Description

49''Optical Seamless Splicing LCD Video Wall new technology

Product Description

Features of LCD VIDEO WAll :

1. Ultra-narrow border design of the current width of only 2.65mm at present

2. Full-screen high definition display, up to 1080P

3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.

5. Long life, stable operation, no burns, injuries, low maintenance costs

A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.

6.Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.

LCD Video Wall Screen (SAMSUNG DID panel)
Specifications
Model No.					US-PJ4901
Panel Size					49'' Samsung DID LCD Screen(super narrow bezel 5.3mm)
Aspect Ratio					16:9
Max Resolution Support					1920x1080
Color					8Bit,16.7M
Brightness (nits)					450cd/m2
Contrast					3000:1
Visual Angle (H/V)					178°
Response Time					<=8ms
Life(hrs)					>60,000(hrs)
lcd video wall_Input and output
DVI					1
HDMI					1
D-15 RGB Input(VGA)					1
YUV/YPbPR					1(3xBNC)
S-(YC)					1(2xBNC)
Composite Video Input/(AV)					3(3xBNC)
Composite Video Output					2(2xBNC)
AUDIO INPUT					1
Split Screen					Support Picture in Picture(PIP/POP/PAP)
lcd video wall_Power
Power Supply					AC100V~240V
Maximum Power Consumption					250W
Standby Power Consumption					<=3W
lcd video wall_Temperature
Working Temperature					0°C~50°C
Working Humidity					20%-80%
Dimension					1024x578.6x123.3mm

Video Wall Controller(Built-in each Screen)
Model No.	US-P817W
Input	CVBS	1*BNC port, support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
	VGA	1*D15 port, support SVGA/XGA/WXGA
	HDMI	5*BNC ports, support SVGA/XGA/WUXGA
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
	CVBS	support PAL/NTSC all formats
	DVI	1*DVI-I port, support SVGA/XGA/WUXGA
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	ADD Code
Engineering software	XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
Working temperature	0~70 ℃
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	307×283×55(mm)
Weight	About 3.5KG

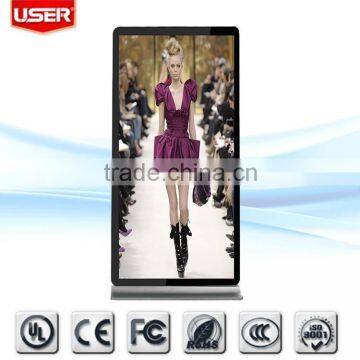

LCD Wall Picture show

LCD Screen Brand

why choose us?

The reason why choose us?

_{1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.}

_{2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.}

_{3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.}

4, Samples are always available for checking quality and can be dispatched to you very quickly.

_{6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.}

7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning

8. User'S Alibaba Trade Assurance Limit: US $223,000 (Still rising....)

_{9. Warranty (1-3 year)}
