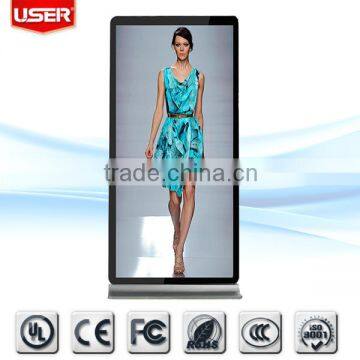

USER-PLS Optical Seamless splicing floor stand digital signage with dual lcd screen
- Shenzhen
- Credit Card
You May Like
-
USER-PLS Super Thin Indoor Advertising lcd Display With Seamless Splicing
-
free size lcd 3g wifi advertising screens for bus,Supermarket,shopping malls
-
55'' 2*2 Optical Seamless Splicing LCD Video Wall
-
49'' Optical Seamless Splicing LCD Video Wall new technology
-
wall mount 32 inch lcd advertising player
-
WALL mounted tft commercial touchscreen lcd advertising screen
Product Details
Place of Origin | Guangdong, China | Brand Name | US-Seamless splicing digital signage | |
Model Number | US-Seamless splicing digital signage | Type | Other, Seamless splicing digital signage | |
Application | Indoor | Panel Size | 83" /99" | |
Max Resolution | 1920x1080 | Viewing Angle | 178 | |
Pixel Pitch | 0.63(H)*0.63(V) | Color | 8Bit,16.7M | |
Contrast Ratio | 4000:1 | Brightness | 500 nits / 800nits | |
Response Time | <=6ms | Input Voltage | AC100~240V 50 /60 HZ |
Product Description
USER-PLS Optical Seamless splicing floor stand digital signage with dual lcd screen
Click the next picture to learn similar products.
USER-PLS Optical Seamless splicing floor stand digital signage with dual lcd screen
Model No . | USER2-83-2 | USER2-99-1 | |
Diagonal screen size | 83" | 99" | |
Max Resolution | 3840*1080 | 3840*1080 | |
(mm) Pixel Pitch | 0.53×0. 53 | 0.63×0. 63 | |
(mm)Visible area | 2047×570 | 2420×682 | |
LCD type | TFT-LCD | TFT-LCD | |
Display Parameter | Display Color | 16.7M | 16.7M |
Brightness | 450cd/M | 500cd/M | |
Contrast | 125.0006944 | 125.0006944 | |
view angle | 178/140 | 178/140 | |
Response time | 5ms | 5ms | |
Display mode | 32:9 | 32:9 | |
audio output | 2X10W | 2X10W | |
Technical | 0MM optical seamless splicing | 0MM seamless splicing | |
Best viewing distance | 1.5-15m | 1.5-15m | |
Electric parameters | Power supply | AC100~240V 50/60Hz | AC100~240V 50/60Hz |
Max Power consumption | <=420W | <=480W | |
Standby | <=3W | <=3W | |
Working environment temperature | 0℃~35℃ | 0℃~35℃ | |
Working environment | Humidity | 20%~90% | 20%~90% |
Gross weight | 95Kg | 115Kg | |
Dimension | 2356 x738 x127mm (do not include stand base ) | 2440 x840 x146mm (do not include stand base ) | |
2460 x920 x480mm (include stand base ) | 2560 x1020 x480mm (include stand base ) | ||
Customized | Yes | Yes | |
Installation | Wall mount ,floor standing | Wall mount ,floor standing |
This Big Size advertising player is made by four pieces LCD screens with true zero optical Bezel by adopting the USER-PSL optical seamless processing technology,
which makes images appear richer, more natural and perfect. It can be widely used in commercial advertising, brand chain, product marketing, financial institutions, hotel,and wedding studio,etc.
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $323,000 ( Still rising )
8, Warranty (1-3 year)
Shenzhen USER Special Display Technologies Co., Ltd. established in 2003, is a high-tech enterprise specialized in development, production and marketing of the special displays. The company can customize special displays of 5-82 inches according to customer need. Headquarter is at Bao’an Shenzhen. The company has established a nationwide network of sales and efficient after-sales service system in china.
As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are divided into several series: CCTV LCD monitor, Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, Multimedia kiosk, large size high definition data LCD display, LCD video wall, video wall processor, digital signage and so on.
USER’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. providing cost-effective products and customer-oriented services, USER has become the ODM / OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2009, "USER" was awarded "the most competitive brand". Any inquires are warmly welcome!
