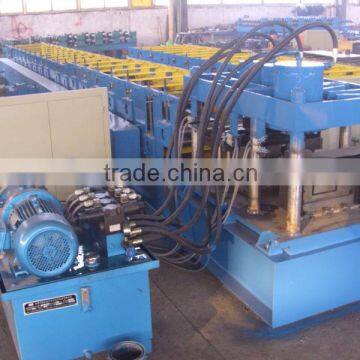

18 stand Two rows guide rail roll forming machine

Two raws guide rail roll forming machine

Guide rail roll forming machine

The production flow of equipment

Decoiling — leveling — feeding(servo)— Punching — roll forming —Revising— hydraulic cutting — product packing manual

The structure of equipment

1, Hydraulic decoiler

lSingle unrolling machine, one side can put material

lAdopt automatic hydraulic system

lCoil weight (Max):2500kg

lCoil dia (Max):1800mm

lCoil Width (Max.):300mm

lPower:3KW

2, feeding and leveling

lfeed into unit oriented wheel(can adjust right and left)

linto feeding roller, dia is 80mm,material 45# steel, quenched 48°-52°, chromed

lleveling is three rollers over four rollers, quenched and chromed

lpower: 4kw

3. sevro feeding machine

Function:feeding

structural features:adopt sevro motor to feeding in Multistage, which can input ten different lengths. Liquid crystal touch screen is easy to set the datas. Auto-induction system is connected with the punch machine which is controlled it.

Power: 3kw

4. punching

lusing punching machine

lworking pressure:63T

lworking speed: 30 times per minuter

5. roll forming

lmain motor power: 18.5kw

lDecelerating motor: BWD14-43-18.5kw, made in Shanghai or Changzhou

ladopt cold system when roll forming

ldrive: by one inch double chain

lThe thickness of the sheet: 2.0-2.5mm galvanized steel

lmain shaft dia: 76mm   material: NO.45forge steel

lroller material: GCR15 quenched 58°-60°,chromed

lroll station:16 stations

lTiming by transducer:5m--8m/min(including punching time)

lTransducer: Panasonic made in Japan. 380V 50HZ

lComputer: PLC

lComputer operating panel: touching screen

lStructure:cast iron

lBearing: brand of HRB,type:6212-RZ

 Revising station:1 station

material: ASTM52100 polished and coated with chrome HRC58-62°

lThe logo & the nicking on two sides and jag on the edge, which are the material of Cr12 quenched to HRC55°-60°(details see the drawing) The logo will appear every 500-600mm.

6. cutting

lhydraulic cut:5.5kw

lknife material: Cr12,quenched 58°-62°

lmachine needs two sets of cutters

lworking pressure:25mpa

lworking journey: 80mm

7. the Outside size:

l18~24m long*1.7m wide*1.5m high

8. Run out table

lJointed by 60mm*40mm tube

lsize:1.5m long*0.8m wide*0.6-1m high
