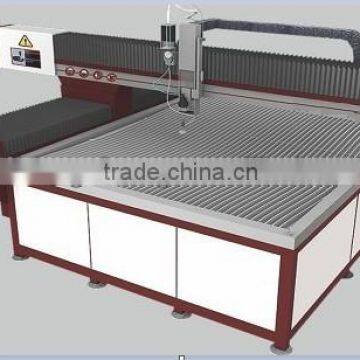

Water jet Cutting machine

Specifications

We adopt the famous NAIKY controlling system and MITSUBISHI AC servo digit driving system and AC servo motor.

- 17”LCD liquid crystal display

- DNC on-line working function

- Functions of returning arbitrary point, bending, and circular arc working auto deceleration.

- Function of cutting figure imitation display.

- 80GB memory hard disk

- MITSUBISHI AC servo driver and motor.

-1GB memory card

- Multilingual function(Chinese English ,etc.,)

- Drive-by-wire and hand-hold controller,(according to requests)

1.1.3Chief technical parameter

- structure:Fly arm

- size(X×Y):1600mm´2600mm

- X-axis:1500mm

- Y-axis:2500mm

- Z-axis:150mm

- repeatability:0.025mm

- X,Y speed:0-15m/min

- cutting accuracy:±0.1mm

power:380VAC, 50Hz , 3 phase 4 wire system (can be customized)

1.1.4Transmission system

- We adopt HIWIN (Taiwan) lead rail and gear rack to ensure accuracy

durable and quality.

1.1.5Prevention system

- Over travel auto spacing function and soft spacing function

- Unique prevention design: new mazy protection and z-axis totally enclosed professional design prevent sand and water from eroding the guide screw and lead rail.

1.1.6Lubrication system

- We adopt auto mass lubrication system to make oil reach every oil site on time and also make table steadier and easier.

1.1.5 Chief technical parameter

- Max pressure:380MPa

- Max flow rate: 3.7l/min

- Power:30KW/40HP

- Power:380VAC, 50Hz ,3 phase
