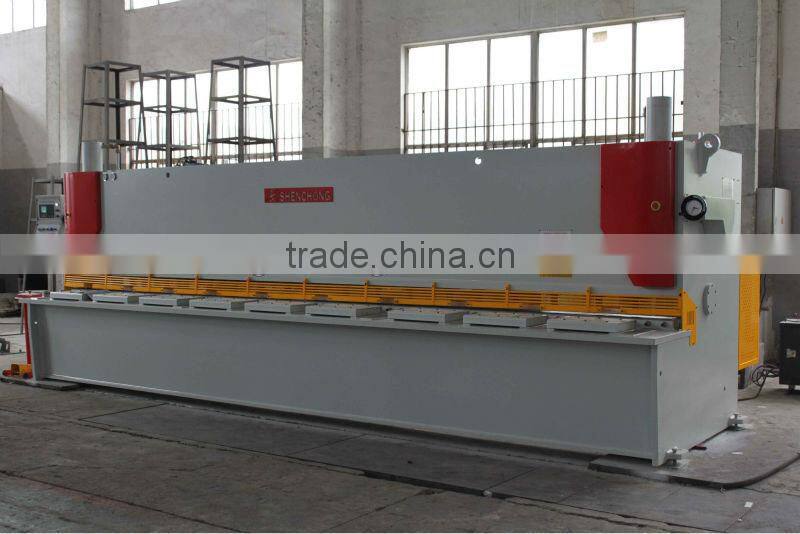

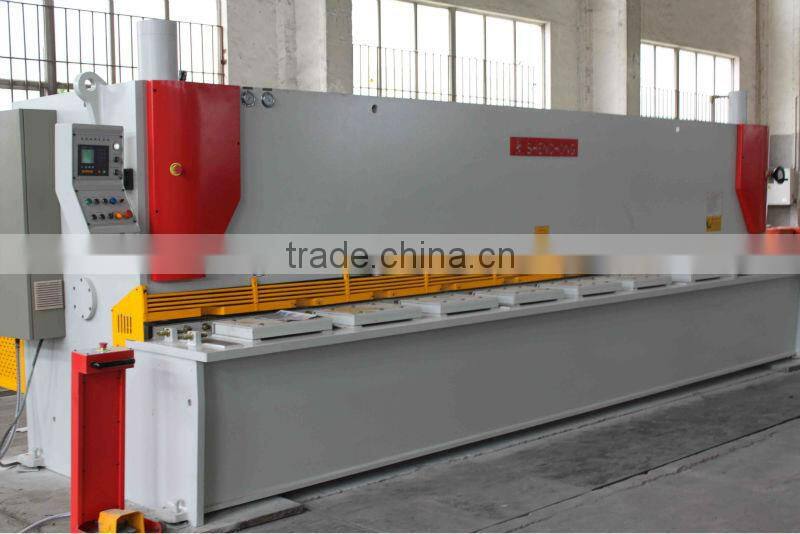

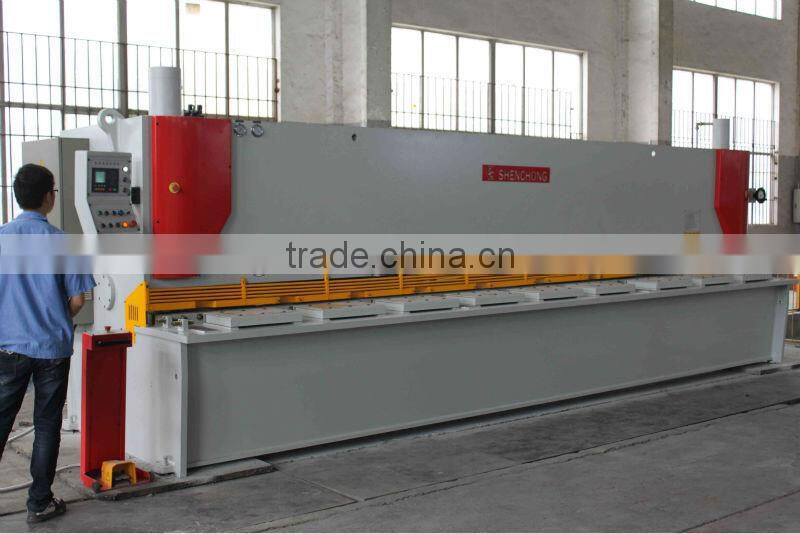

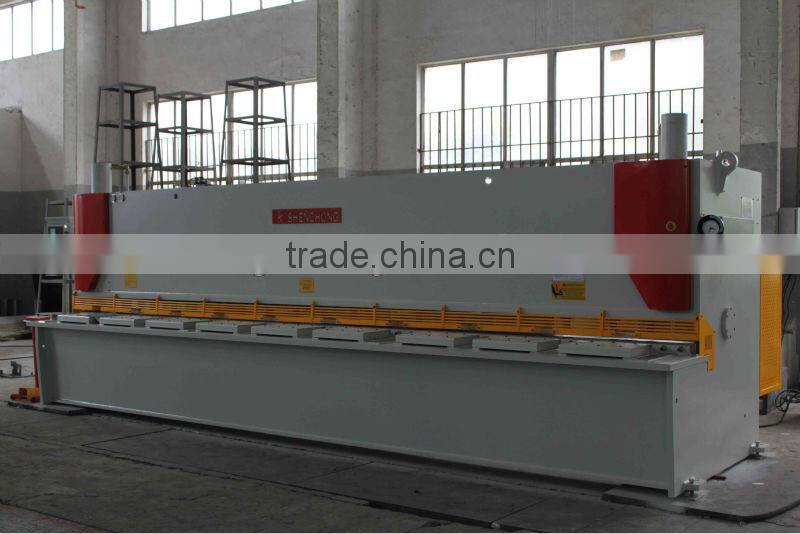

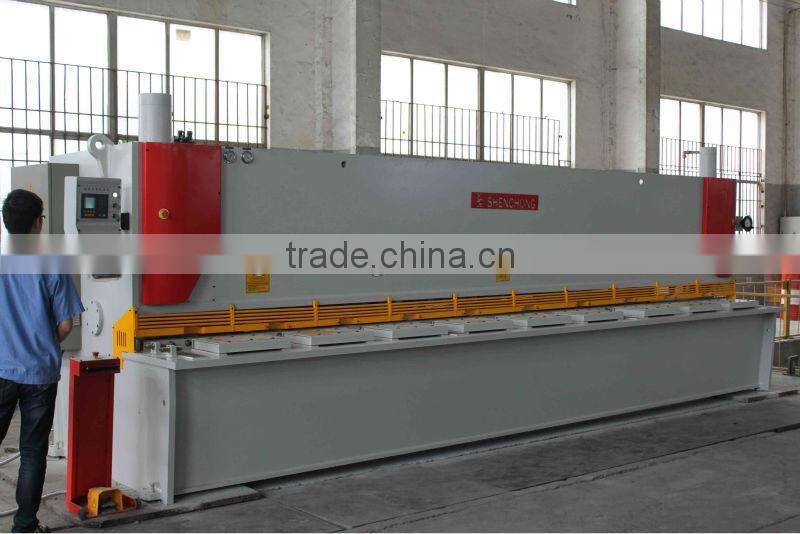

Sheet metal shearing machine QC11K-6X6000mm,shearing machine,cutting machine
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
E10 system Hydraulic Guillotine Shearing Machine QC11Y-40X2500
-
Hydraulic Shearing Machine QC11Y-12X2500 hydraulic guillotine shearing machine with copper plate for door frame
-
QC11Y-40X4000 hydraulic steel plate guillotine shearing machine
-
QC11Y-8X3200 hydraulic guillotine shearing machine/cutter
-
hydraulic shearing machine, hydraulic guillotine shear QC11K-12X5000
-
hydraulic shearing machine, guillotine, cutting machine QC11Y-4x3200
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SC | Model Number | QC11K 6X6000 | |
| Voltage | 100/110/115//220/230/240 V | Rated Power | 11 kw | |
| Dimension(L*W*H) | 6650*1980*2380 mm | Weight | 16.5 Ton | |
| Certification | CE, ISO9001:2000,SGS | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The Main Structure Character:
Welded steel plate construction, eliminate internal stress by heat treatment, with high strength and good righty. Advanced integrate hydraulic system with an excellent reliability.
Rapidly, accurately and conveniently adjust the blade clearance with the hand wheel.
Feature and Advantages:
1. Hydraulic driven, welding blade body, whole machine structure welding with good rigidity and strength.
2. Gas return structure moves smooth and swift, hydraulic return is available, with lower noisy and stable working performance.
3. Cutting stroke could be adjusted when cutting different length plate, both up and bottom blade have 4 usable edges.
4. Plate clamping fixture uses independent hold down cylinder. There is plastic pad on the bottom of each cylinder to protect the plate being scratched.
5. CNC controller is close loop control system, fast speed, high accuracy, good stability; guarantee the accuracy of back gauge movement. Furthermore, the system has the function of compensation and auto inspection and so on.
6. Ball screw on the back gauge, moving without gap.
CNC system:E21S
Technical parameter
Specification | QC11K-6X6000 |
Max. Shearing Thickness | 6mm |
Max. Shearing length | 6000mm |
Depth Of Throat | 80mm |
Max. Length of Back Gauge | 750mm |
Reak angle adjustment | 0.5°~1°30’ |
Stroke Number | 8/Min |
CNC control system | E21S |
CNC axes | 4 (back gauge, cutting stroke, cutting clearance , cutting angle) |
Main Motor Power | 7.5KW |
Overall dimension | 6650*1980*2380 mm |
Weight | 15.2 TON |
Hydraulic Shear Machine QC11Kseries Technical parameter
