Home > Products > Industrial LCD Monitor > 10.4'' Embedded industrial LCD monitor

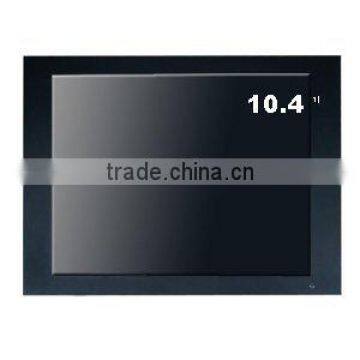

10.4'' Embedded industrial LCD monitor
- Shenzhen
- Credit Card
You May Like
Product Details
| Application | Other, Embedded | Screen Size | Other, 10.4'' | |
| Brand Name | USER | Model Number | US-I041E | |
| Place of Origin | Guangdong, China | Response Time | 8ms |
Product Description
Specifications
with resolution:800x600, steel case,contrast: 350:1, response time:8 ms10.4'' industrial LCD monitor( embedded)
Model:US-I1041E | |
Panel size | 10.4'' |
Display area | 800mm(W)×600mm(H) |
Display mode | 4:3 |
LCD Type | TFT-LCD |
Maximum resolution | 800×600 |
Display color | 262M |
Pixel Pitch(mm) | 0.264(H)×0.264(V) |
Brightness(nits) | 350cd/m2 |
Contrast | 350:1 |
Visual angle(up/down/left/right) | 60/60/45/45 |
Response time | 8ms |
Field frequency | 50Hz60Hz70Hz |
Installation | Embedded |
Input and output | |
Composite video input | 1 (BNC×1) |
Y,Pb,Pr/Y,Cb,Cr input | 1 (BNC×1) |
S-video | 1 |
D-15 pin RGB input | 1 |
Video | |
Color system | PAL/NTSC/SECAM |
OSD display( Screen menu display) | |
Menu language(option) | Chinese/English/France/ Germany /Italy/Spanish/ Portuguese/ Dutch/Poland |
Power | |
Power supply | DC12V/2.6A |
Maximum power consumption | 15W |
Standby power consumption | <1W |
Body dimension(Lx W XH) | 280mm×232mm×48mm |
