Home > Products > CCTV LCD Monitor(Professional) > 8" cctv lcd monitor

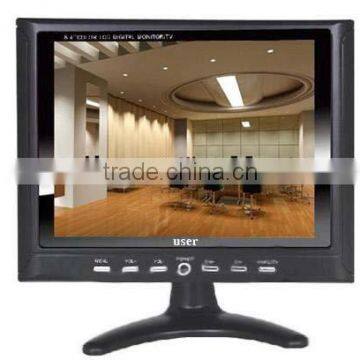

8" cctv lcd monitor
US$ 90 - 120
/ Piece
50 Pieces(Min. Order)
- shenzhen
- Credit Card PayPal
You May Like
Product Details
| Products Status | Stock | Application | Desktop | |
| Screen Size | Other, 8.9" | Response Time | 8ms | |
| Brightness | 250cd/m | Interface Type | YPBPR, Other, YPBPR, VGA, BNC | |
| Contrast Ratio | Other, ≤ 300:1 | Resolution | Other, 800*600 | |
| Widescreen | No | Panel Type | TFT | |
| Pixel Pitch | 0.068*0.203 | Brand Name | user | |
| Model Number | US-M0801P | Place of Origin | Guangdong, China |
Product Description
Specifications
8" tft lcd monitorreslution: 800*600
color: 16.7M
visual angle: 140/150
| Specification model | US-M8001P | ||||||||
| Panel size | 8″TFT-LCD | ||||||||
| Display area(mm)/mode | 166(W)×125.5(H) 4:3 | ||||||||
| Maximum resolution | 800x600 | ||||||||
| Display color | 16.7M | ||||||||
| Pixel Pitch(mm) | 0.068(H)×0.203(V) | ||||||||
| Brightness (nits) | 300cd/m2 | ||||||||
| Contrast | 300:1 | ||||||||
| Visual angle | 140°/150° | ||||||||
| Response time | 5ms | ||||||||
| Horizontal frequency | 30-75KHZ | ||||||||
| Vertical frequency | 56-75KHZ | ||||||||
| Life(hrs) | >60,000(hrs) | ||||||||
| Input and output | |||||||||
| Composite video input | 1(BNC×1) | ||||||||
| Y,Pb,Pr/Y,Cb,Cr input | Optional | ||||||||
| S-video | No | ||||||||
| D-15 pin RGB input | 1 | ||||||||
| S-video input | Optional | ||||||||
| Composite video output | Optional | ||||||||
| Video | |||||||||
| Color system | PAL/NTSC/SECAM | ||||||||
| OSD display( screen menu display) | |||||||||
| Menu language | Chinese/English( multiple language option required) | ||||||||
| Power | |||||||||
| Power supply | DC12V 2A | ||||||||
| Maximum power consumption | <15W | ||||||||
| Standby power consumption | <1W | ||||||||
| Temperature | |||||||||
| Working temperature | 0°C~50°C | ||||||||
| Storage temperature | -20°C~60°C | ||||||||
| Working humidity | 85% | ||||||||
| Storage humidity | 85% | ||||||||
| Appearance | |||||||||
| Body dimension(Lx W x H)mm | 189.6×148.7×43 | ||||||||
| Panel color/appearance | White, black, customized | ||||||||
| Panel material | Metal case | ||||||||
| Net wihgt | 1.1kg | ||||||||
| Installation | wall-mounted,desktop (optional) | ||||||||
