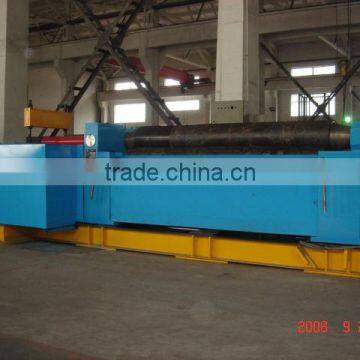

professional supplier Hydraulic Rolling Machine SW11X-B-20X3000

Mechanical level down 3 roller rolling machine Struct function

Its top roller can lift and two bottom rollers can move horizontally separately or synchronously. Every bottom roller perform functions of bottom roller and side roller in turn, become two types non-symmetrical three-roller rolling plate machine, which can finish pre-bend and roll of thin sheet and thick plate at the same time. It is convenient to roll taper work piece.

Feature and advantage:

1. The machine consist of bottom base, up and bottom roller stand, main drive system, electrical system and so on. Bottom base and machine stand is welding structure, strictly control the welding quality and has steps of eliminating the inner force, to promise the machine have enough strength and rigidity under working condition, eventually guarantee the accuracy of the work piece.  Movement of bottom roller driven and upper roller vertical moving are controlled by electric. All operation adopts centralize electric control, easy for operation.

2. Working components Upper roller sits in two oilless self-lubricating bearings, locate at inside of the stand, make vertical movement driven by worm wheel on both sides.

 a. High accuracy pre-bending function

     On certain extence, upper roller can pre-bending the job directly with high accuracy.

 b. Excellent rolling work piece

     Vertical movement of upper roller and horizental movement of bottom roller work together to make continuous bending, make ideal job, either thin or thick plate. :

Technical parameter:

Hydraulic Rolling Machine SW11X-B series Technical parameter
