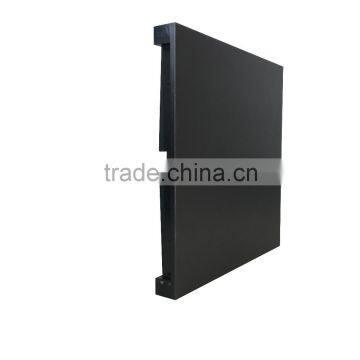

Indoor Small Pitch COB LED Display _O

FOB Price

USD $1 - $20,000 / Square Meter

5 Square Meters(Min.Order)

Supply Ability 80 Square Meter / Square Meters per Month
Port Dalian/Shenzhen/Ningbo/Qingdao/Lianyungang
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jilin, China	Brand Name	CEDAR
Model Number	CD-P1.25/1.5/1.875/2.5-IM	Usage	Indoor
Tube Chip Color	Full Color	Display Function	Video
Pixels	Other, 1.25mm~2.5mm	Screen Dimension	Customized

Product Description

Models & Parameters

Parameters		NP2.5-IM	NP1.875-IM	NP1.5-IM	NP1.25-IM
Pixel	Pixel Setting	RGB LED COB	RGB LED COB	RGB LED COB	RGB LED COB
	Pixel Pitch(mm)	2.5	1.875	1.5	1.25
	Pixel Density(Pixel/m²)	160000	284444	444444	640000
Module	Module Resolution (W/Pixel × H/Pixel)	48 × 48	64 × 64	80 × 80	96 × 96
Module	Module Size (W/mm × H/mm)	120 × 120	120 × 120	120 × 120	120 × 120
Cabinet	Cabinet Resolution (W/Pixel × H/Pixel)	192 × 192	256 × 256	320 × 320	384 × 384
	Cabinet Size(W/mm × H/mm)	480 × 480	480 × 480	480 × 480	480 × 480
	Material	die-casting aluminum	die-casting aluminum	die-casting aluminum	die-casting aluminum
	Cabinet Weight (kg/Pcs)	6.5	7	7	7
	Cabinet Area (m²)	0.2304	0.2304	0.2304	0.2304
	Screen Weight (kg/m²)	29	32	32	32
	Cabinet Flatness (mm)	≤0.2	≤0.2	≤0.2	≤0.2
	Maintenance	rear	rear	rear	rear
Optical Paramaeters	Dot by Dot Calibration	support	support	support	support
	Brightness (cd/m²)	≥600 (calibrated@9300K)	≥600 (calibrated@9300K)	≥600 (calibrated@9300K)	≥600 (calibrated@9300K)
	Brightness Adjustment	manually, automatically or remotely	manually, automatically or remotely	manually, automatically or remotely	manually, automatically or remotely
	Color Temperature (K)	3000 — 10000 adjustable	3000 — 10000 adjustable	3000 — 10000 adjustable	3000 — 10000 adjustable
	Horizontal FOV ( °)	160	160	160	160
	Vertical FOV ( °)	160	160	160	160
	Contrast	6000:1	6000:1	6000:1	6000:1
	Brightness Uniformity	≥ 95%	≥ 95%	≥ 95%	≥ 95%
Electrical Parameters	Peak Power Consumption (W/m²)	600	600	600	600
	Average Power Consumption (W/m²)	200	200	200	200
	Input Voltage (V)	AC110~240V(50-60Hz)	AC110~240V(50-60Hz)	AC110~240V(50-60Hz)	AC110~240V(50-60Hz)
System Process	Drive Mode	constant current (1/32 scan)	constant current (1/32 scan)	constant current (1/20 scan)	constant current (1/32 scan)
	Frame Rate (Hz)	60	60	60	60
	Refresh Frequency (Hz)	>1500	>1500	>1500	≥ 1200
Applications	Lifespan (h)	100000	100000	100000	100000
	Ingress Protection	Front IP54	Front IP54	Front IP54	Front IP54
	Operation Temperature (℃)	0 ~ 40℃	0 ~ 40℃	0 ~ 40℃	0 ~ 40℃
	Storage Temperature (℃)	-10 ~ 60℃	-10 ~ 60℃	-10 ~ 60℃	-10 ~ 60℃
	Operation Humidity(RH)	10% ~ 90%, with no condensation	10% ~ 90%, with no condensation	10% ~ 90%, with no condensation	10% ~ 90%, with no condensation
	Storage Humimdity (RH)	10% ~ 90%, with no condensation	10% ~ 90%, with no condensation	10% ~ 90%, with no condensation	10% ~ 90%, with no condensation
Others	Support on-site dot-by-dot calibration
	Support on-line signal dual direction backup
	Available for being controlled by Cedar RTM Software
	Available for different signal format, such as AV,S-Video,VGA,DVI,HDMI,SDI,DP
	Parameters can be customized
