MJQ6128G vertical panel saw for sell
- Shunde/Guangzhou/Shenzhen/Hongkong
You May Like
Product Details
| Condition | New | Type | Other, Table Panel Saw, table panel saw, panel saw for sell | |
| Use | Other, Woodworking, woodworking/wood cutting | Style | Vertical | |
| Place of Origin | Guangdong, China | Brand Name | Xinnianhua/Sunnywei | |
| Model Number | MJQ6128G | Usage | woodworking | |
| Voltage | 380v 50hz 3ph | Power(W) | 5.5kw | |
| Dimension(L*W*H) | 2900*3050*1150mm | Weight | 900kg | |
| Certification | CQC |
Product Description
Specifications
MJQ6128G vertical panel saw1.with scoring saw
2.max processing length:2800mm
3.adjustable angle:90-45
4.main power:5.5kw

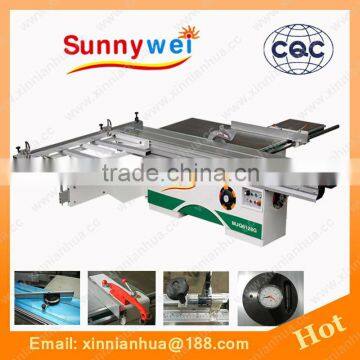

MJQ6128G vertical panel saw
USE AND APPLICABILITY RANGE OF THE MACHINE:
The machine is suitable for precisely cutting off materials of the laminating board,flake board,MDF board,plyboard and woodbased panel board and the plastic board,bakelite plank,PVC,aluminium alloy etc.
It is the necessary precision panel equipment in the composite furniture manufacture and architecture decoration line
MAIN SPECIFICATION AND TECHINOLOGY PARAMETER MJQ6128G
Slide worktable max distance | 3000mm |
Max processing length | 2800mm |
Max processing thickness | 65mm |
45°tilting max processing thickness | 55mm |
Main saw blade dimension(max) | Φ305×Φ30mm |
Groove- saw blade dimension | Φ120×Φ22mm |
Main saw arbor rotary speed | 4000,5000r/min |
Groove- saw arbor rotary speed | 9000r/min |
Main electronic motor power | 5.5KW(7.4HP)/380V 50HZ 3PH |
Groove-electronic motor power | 0.75kw(1HP)/380V 50HZ 3PH |
Weight of machine | 900kg |
Overall dimension(L×W×H) | 3050×3080×1150mm |
Dust-collecting mouth external diameter | Φ100(4")mm |
Strengths:
1.steel bearing double-slide,copper pulley structure with high precision ,the error of straigthness on whole distance of travel is less than 0.15mm
2.high quality of the spindle bearing and lifting system
3.movable slide worktable ,high precision
4.safty and long service time
5.stable running,easy to operate,working exactly
6.self-developed high quality saw blade,glossy,neat
7. light- weight and reliable spindle bearing and lifting system
Thank you for your attention!!!
