Home > Products > Shrink Packaging Machine > ST 6030AF Without Tray Automatic Sleeve Sealing And Shrinking Packer Quality Choice
ST 6030AF Without Tray Automatic Sleeve Sealing And Shrinking Packer Quality Choice
- Shanghai/Ningbo
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Function | Filling, Wrapping | |
| Application | Other, pop-top cans,beet,mineral water,wood,steel,ceramics,electric appliance | Packaging Type | Cans, Bottles, Film | |
| Packaging Material | Plastic, Metal, Glass, Wood | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 220V | |
| Power | 2KW | Place of Origin | Zhejiang, China | |
| Brand Name | JIUYI | Model Number | ST030AF | |
| Dimension(L*W*H) | 2750*1530*1970 | Certification | CE |
Product Description
Specifications
1.high quality2.suitable for large quantity products
3.ensure the excellent effect of shrinkiing

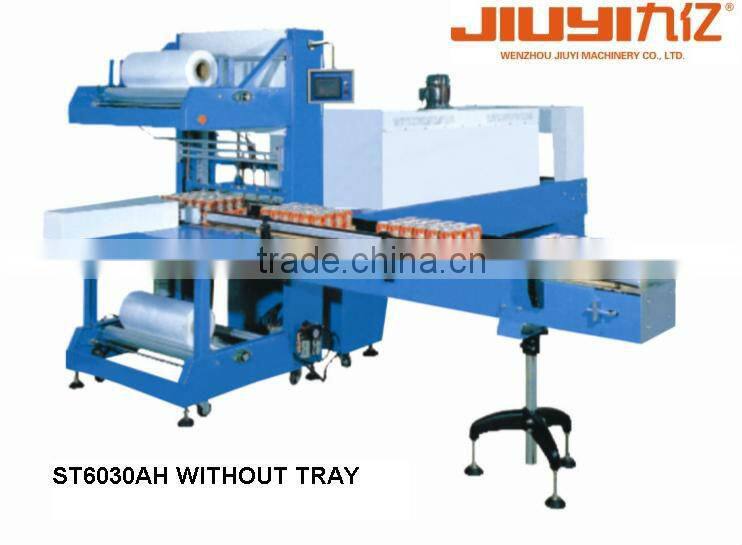

ST 6030AF Without Tray Automatic Sleeve Sealing And Shrinking Packer
Features:
Used to shrink large quantity products such sa pop-top cans,beer and mineral water etc,and used in wood,steel,ceramics,electric appliance and computer industries.Specially designed for shrinking some big and heavy products packed with PE flim.
The conveying belt can be made of rollers,or Teflon mesh belt,or S/S mesh belt according to different requirement.
Can finish the shrinking in a short time even for a big product,and it is smooth and compact after the shrink,convenient for piling,and ensures the product quality and needs for long distance transportation,uses films such as PE,PVC and POF etc.
Top bottom side tunnel fixed the stainless steel heater to heater to heat tunnel quickly and prolong the usage life .Up and down large power fan system and super cooling system to ensure the excellent effect of shrinking.
Technical parameter:
Model | ST6030AF SEALING MACHINE | SM6540 Shrinking tunnel |
Horizontal Height and length of infeed Conveyor | 850±50mm/2000mm | |
Max packing dimension(mm) | L500×W300×H300 | W650×H400×L Unlimited |
Minium packing size | 280×100×100mm | |
Packing Speed | 8-12pcs/minute | 15m /min |
Voltage | 220V/50Hz | 380V/50Hz |
Rated Power | 2KW | 24KW |
Sealing time/Shrink time/Temperature | 0.5-1.5S/0-0.6S/0 -250 °C | |
Width/Thickness of the Film | MA×600mm /0.04 -0.12mm | |
Dimension | L2750×W1530×H1970mm | L3200×W950×H1580mm |
Gross weight | 600kg | 400kg |
Air pressure of working | 4-8Mpa | |
Shrink film | PE POF PVC | PE POF PVC |
