2015 Centrifugal Counter-clockwise Clear Water Hydraulic Water Pump with Hydraulic Motor

                                                                                                                             ——————Kingdom of water truck parts

COMPANY PROFILES

                   Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year  2002.

  Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.

           Centrifugal Counter-clockwise Clear Water Hydraulic Water Pump with Hydraulic Motor

Features:

Material: aluminum material specifically so that the water pump is light weighted and easy to manufacture

Parts: the shaft is made of stainless steel; the impeller is manufactured within the tolerance of 0.001”; the bearing and mechanical seal are of the first-class quality

Fine Property: every part within the pump is carefully designed so that they can work together well and guarantee fine property

Quiet: the water pump makes low noise during work because of our thoughtful design.

Parameter: water pump

 WP-CW ( Clockwise Direction )

Rotate Speed: 1450rpm-3000rpm

 Flow Rate:  ≤3000l/min / 800 gl/min

 HEAD:  ≤50m / 175 feet

 Pressure: ≤0.5Mpa / 75psi

  Inlet/Outlet Connection Type: Victaulic Type Grooved Suction and Discharge (clamping system)

  Inlet: 4.00 inches

 Outlet:  3.00 inches

 Outlet Angle Adjustable: (30° 45° 60° 90° 120° 180° 270° etc.)

  Max. Operating Temp:  60°C (140°F)

  Impeller Diameter: 230mm (9 inches)

 Shaft Diameter: 31.7mm (1-1/4 inches)

 Applications:  Flooded Suction, Irrigation, Fire,  Marine

 Dimension (length x width x height) :595mm * 495mm * 48mm

  Net Weight/Gross Weight: 19kg/33kg

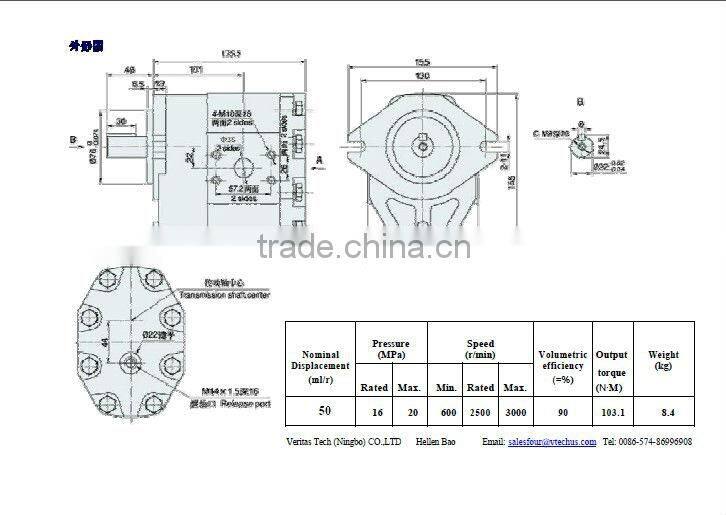

hydraulic motor parameter:

1. Nominal Displacement (ml/r) : 50

2. Pressure(MPa): rated-16; Max-20

3.Speed: Min-600; Rated-2500; Max-3000

4.Volumetric efficiency:  at least 90%

5. Output torque (nm): 103.1

6.Weight (KG):8.4
