4'x3' Water Truck Pump
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Veritas | |
| Model Number | WP9070B230 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Other, Manual/motorized/hydraulic | Standard or Nonstandard | Nonstandard | |
| Fuel | Other, hydraulic motor or engine | Pressure | Low Pressure | |
| Application | Other, irrigation,fire,water supply,flood suction,tank filling |
Product Description

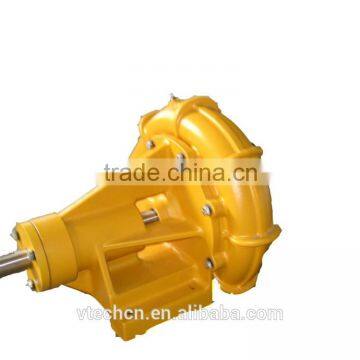

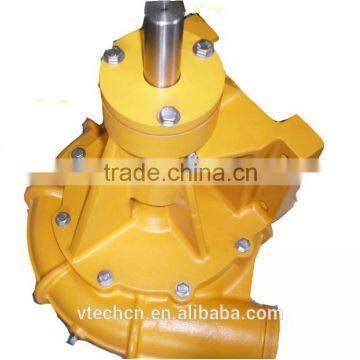

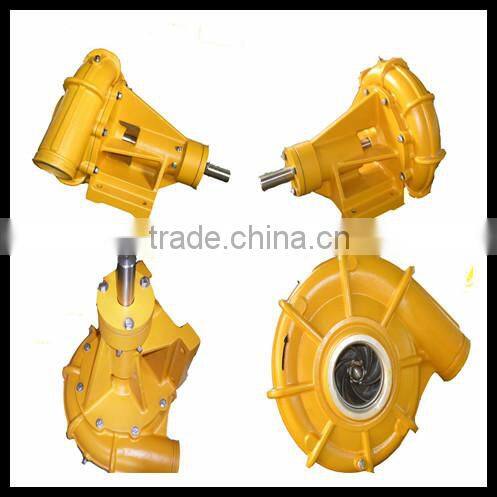

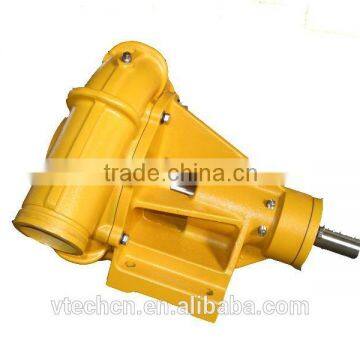

Aluminum centrifugal water pump
Parameter

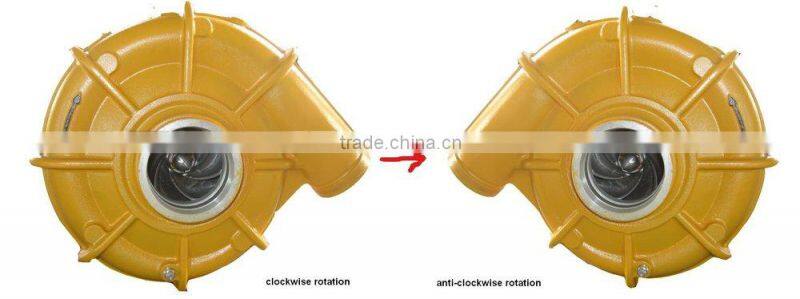

Part # | WP-CCW ( Counter-Clockwise Direction ) |
Part # | WP-CW ( Clockwise Direction ) |
Rotate Speed | 1450rpm-3000rpm |
Flow Rate | ≤3000l/min / 800 gl/min |
Head | ≤50m / 175 feet |
Pressure | ≤0.5Mpa / 75psi |
Inlet/Outlet Connection Type | Victaulic Type Grooved Suction and Discharge (clamping system) |
Inlet | 4.00 inches |
Outlet | 3.00 inches |
Outlet Angle | Adjustable (30° 45° 60° 90° 120° 180° 270° etc.) |
Max. Operating Temp | 60℃ (140°F) |
Impeller Diameter | 230mm (9 inches) |
Shaft Diameter | 31.7mm (1-1/4 inches) |
Applications | Flooded Suction, Irrigation, Fire, Marine |
Dimension (length x width x height) | 493mm * 450mm * 360mm |
Net Weight/Gross Weight | 19kg/33kg |
Features
ü Material: aluminum material specifically so that the water pump is light weighted and easy to manufacture
ü Parts: the shaft is made of stainless steel; the impeller is manufactured within the tolerance of 0.001”; the bearing and mechanical seal are of the first-class quality
ü Fine Property: every part within the pump is carefully designed so that they can work together well and guarantee fine property
ü Quiet: the water pump makes low noise during work because of our thoughtful design

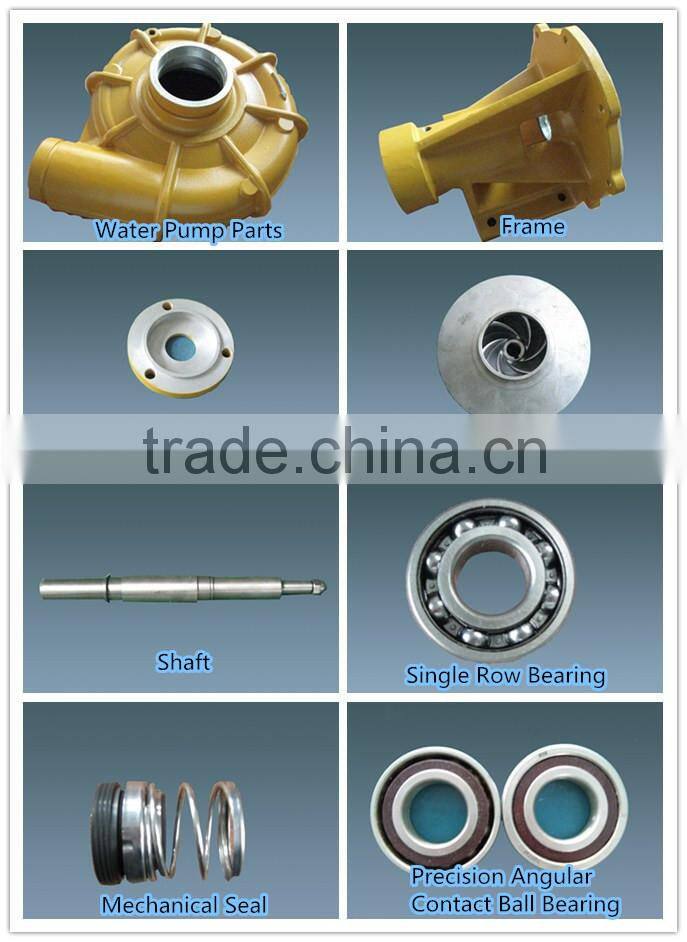

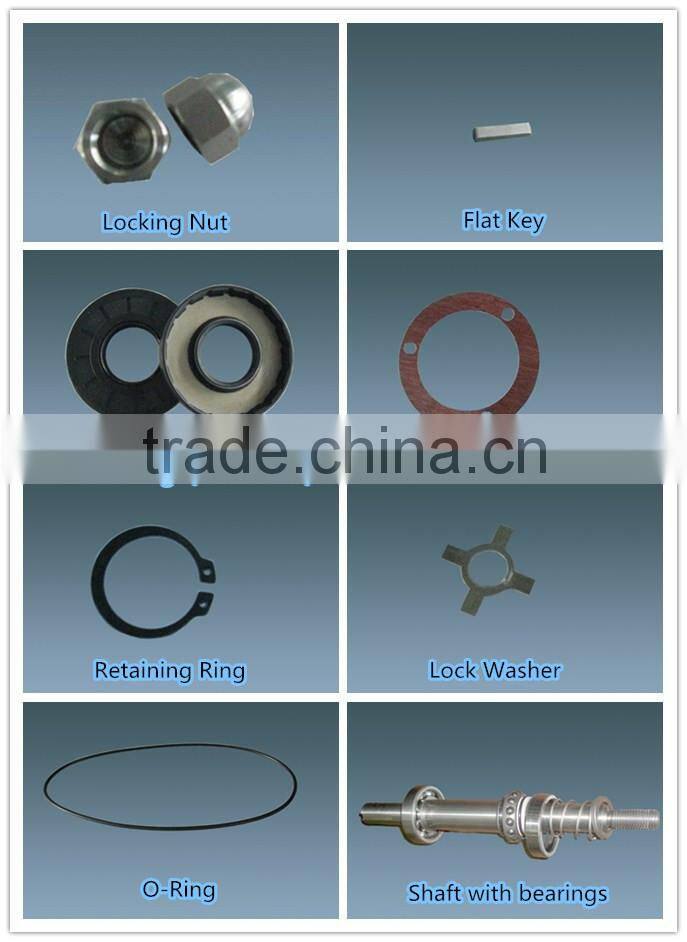

PARTS
We have profesional technoligy design team,
we can customized the product by your demand,welcome to visit our website .
Plese contact us. O(∩_∩)O
Introduction of Veritas Tech
Veritas Tech, registered in Texas, USA with its operational center in China manufactures water truck parts, including water pumps, valves, hose reels, control systems, water cannons, clamps, spray heads and other fittings.
Additionally, thanks to its strong engineering and manufacturing capabilities,
Veritas Tech can provide you with water truck parts per your specifications, designs or ideas.
