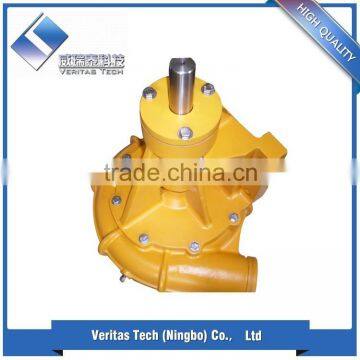

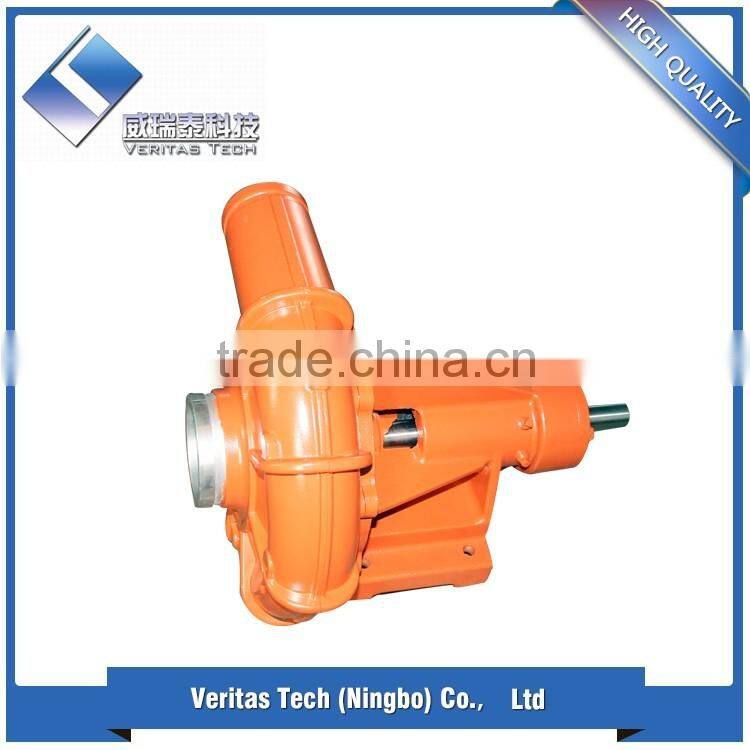

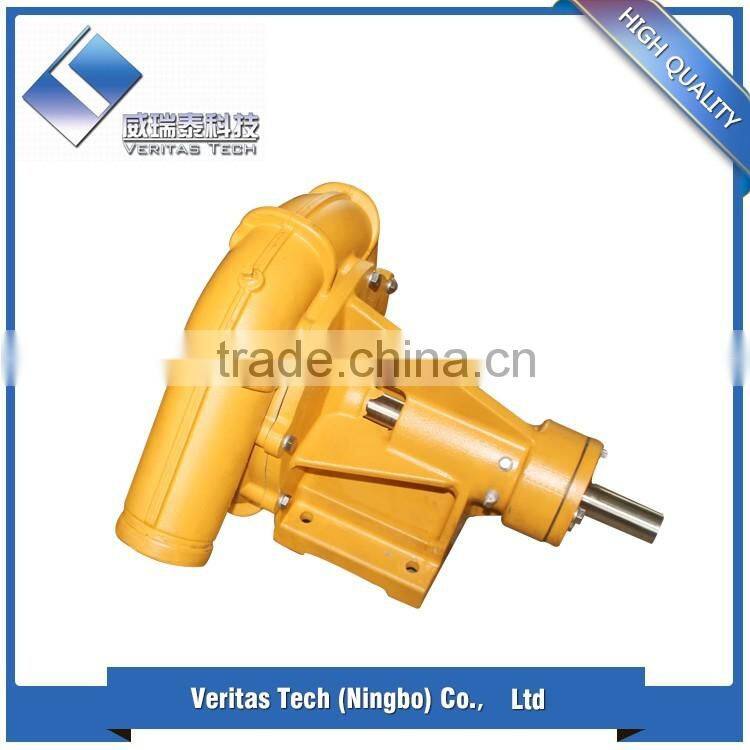

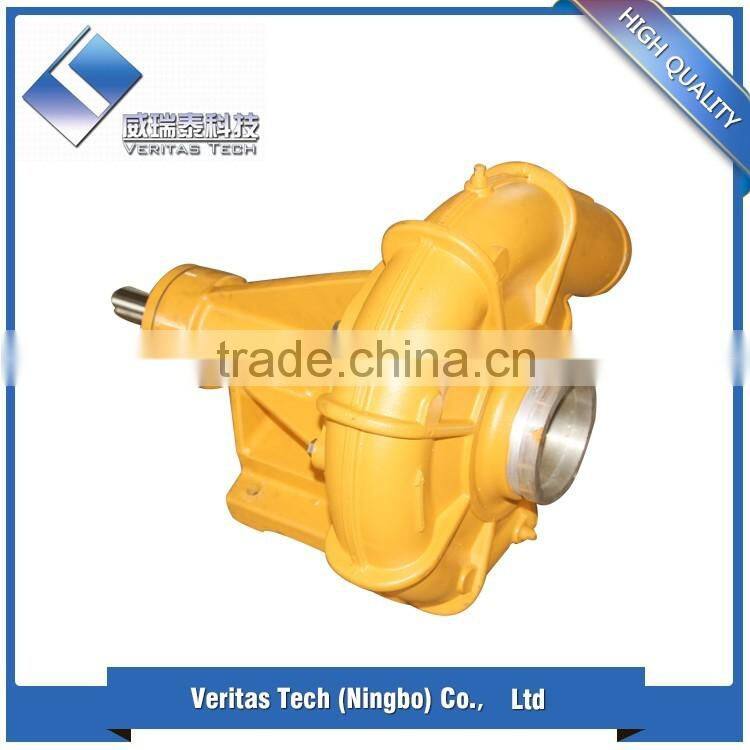

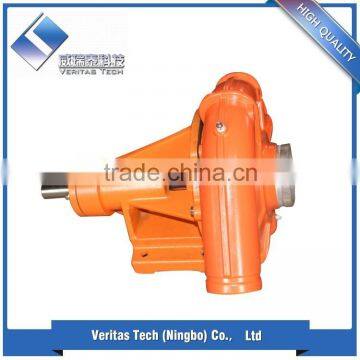

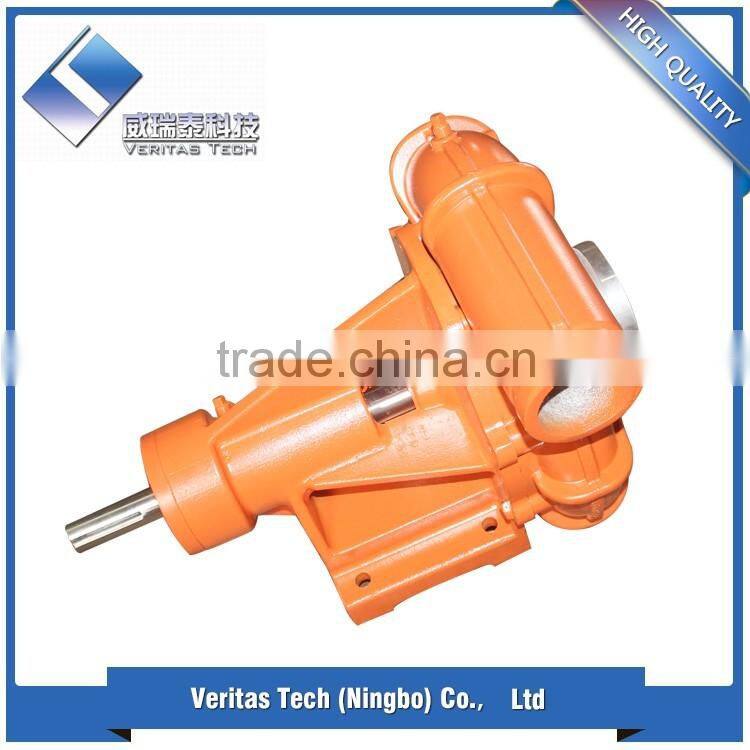

2016 Water Truck Parts Water Pump WP0602 Used for Water Irrigation Made in China
- Ningbo/Shanghai
- Credit Card
You May Like
-
2016 Hot Product Hose Reel WP0602 Water Hose Reel Manual and Electric
-
Rewindable and Durable Auto1" or 1.5'' Hose Reel (Mounting on Rear of Water Truck)
-
2016 New Arrival Air Operated Spray Head Kits- Side Spray Nozzle+90 Degree Elbow(polished)+air Inline Valve
-
90 Degree Polished or Machined or Painted Aluminum Camlock Elbow
-
3inch or 4inch Clamp Coupling for Pipe Fittings
-
2 Inch or 2.5inch Pipe Thread Used in a Water Truck or Water Cannon Polished Aluminum Hose Nozzles
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Veritas Tech | |
| Model Number | WP0602 of water pump | Theory | Centrifugal Pump | |
| Structure | Gear Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, water trucks water pump |
Product Description
Material:Aluminum
Parts: the shaft is made of stainless steel; the impeller is manufactured within the tolerance of 0.001”; the bearing and mechanical seal are of the first-class quality
Fine Property: every part within the pump is carefully designed so that they can work together well and guarantee fine property
Quiet: the water pump makes low noise during work because of our thoughtful design
Part # | WP-CCW ( Counter-Clockwise Direction ) |
Part # | WP-CW ( Clockwise Direction ) |
Rotate Speed | 1450rpm-3000rpm |
Flow Rate | ≤3000l/min / 800 gl/min |
Head | ≤50m / 175 feet |
Pressure | ≤0.5Mpa / 75psi |
Inlet/Outlet Connection Type | Victaulic Type Grooved Suction and Discharge (clamping system) |
Inlet | 4.00 inches |
Outlet | 3.00 inches |
Outlet Angle | Adjustable (30° 45° 60° 90° 120° 180° 270° etc.) |
Max. Operating Temp | 60℃ (140°F) |
Impeller Diameter | 230mm (9 inches) |
Shaft Diameter | 31.7mm (1-1/4 inches) |
Applications | Flooded Suction, Irrigation, Fire, Marine |
Dimension (length x width x height) | 493mm * 450mm * 360mm |
Net Weight/Gross Weight | 19kg/33kg |
Payment term: L/C,T/T,WESTERN UNION
Trade term: EXW or FOB Ningbo
Packing detail:
Neutral packing, export standard carton.
Min.Order: One carton for stock parts
Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year 2002.
Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings. Veritas Tech is ISO9001:2010 certificated.
Highly respecting the intellectual properties, quality control and business management of high standard make Veritas Tech your reliable partner.
Advantage:
1. We are small enough to care what you care
2. We are strong enough to implement the right technology for you
3. We are capable to run the factory lean
4. We are localized enough to minimize the manufacturing costs
5. We are efficient enough to resolve all logistics issues
Engineering Service
1. Samples→ Measurements →Drawings →Review →Manufacture →Assembly
2. Ideas →Analyses →Drawing →Review →Manufacture →Assembly
Engineering Services Flow Chart
