Universal Coupling---DCI pipe joint for pipe fitting
- Qingdao port
- T/T
You May Like
Product Details
| Material | Iron | Technics | Casting | |
| Type | Coupling | Place of Origin | Shandong, China | |
| Model Number | DN200 | Brand Name | Three-dimensional or SW | |
| Connection | Male | Shape | Equal | |
| Head Code | Other, Round |
Product Description
Specifications
1.DN50-2000mm,K12,PN10/16/252.ISO2531,EN545,EN598,BS4772
3.Fusion Bonded Epoxy Coating
4.DCI pipe universal coupling

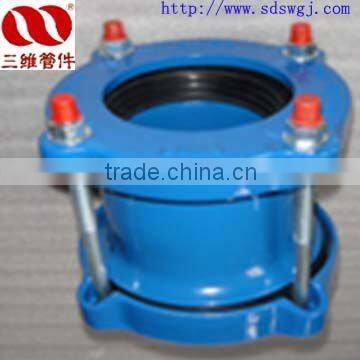

Universal coupling -- DCI pipe joint for pipe fitting
1. Size:DN50- DN2000mm,K12,PN10/16/25
2. Standard: ISO2531/EN545 EN598,BS4772
3. Pipe/body and retainer:ductile iron GGG500-7,450-10
3. Gasket ring: EPDM/NBR
4. Bolt/nut: Carbon Steel Grade 4.8 with Zinc Coating , Epoxy Coating or Dacromet Coatin
Tie Rods : Carbon Steel Grade 4.8 with Zinc Coating , Epoxy
Coating or Dacromet Coating ; Or Stainless Steel upon customers request .
Gaskets material : For water or Gas : NBR Grade A .
for drinking water : EPDM rubber to BS2494:1990 type W .
for drinking water and sewage : SBR Grade F .
Body Coating : Fusion Bonded Epoxy Coating inside and outside ,
or bitumen painting upon customers request
Ductile Iron Universal coupling
contact name: Lucy Lee
Company:ZHUCHENG THREE-DIMENSIONAL PIPELINE CO.,LTD
Add: Baichihe Industrial Park, Zhucheng City, Shandong Province,China.
Tel: +86-536-6511319, +86-536-6511112
Fax: +86-536-6511319, +86-536-6511112
Mob:+86-15653682109 LUCY LEE SKYPE:lucy.lee255
Website: http://swgj.en.china.cn
