Home > Products > CNG-2 composite cylinder > CNG-2, diameter 406mm,100L, 20mpa, CNG tank, CNG cylinder for vehicle, CNG cylinder

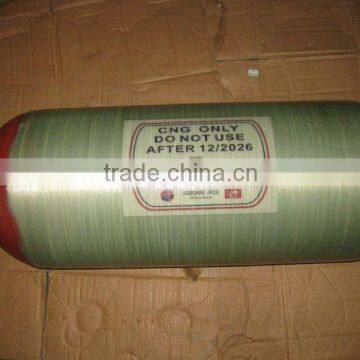

CNG-2, diameter 406mm,100L, 20mpa, CNG tank, CNG cylinder for vehicle, CNG cylinder
- NingBo
- T/T Credit Card
You May Like
-
CNG-2, diameter 406mm,90L, 20mpa, CNG tank, CNG cylinder for vehicle
-
CNG-2, diameter 406mm,90L, 20mpa, CNG tank, Gas cylinder
-
CNG-2, diameter 406mm,90L, 20mpa, CNG tank, type 2 for Gas cylinder
-
CNG-2, diameter 406mm,90L, 20mpa, CNG tank, CNG cylinder
-
CNG-2, diameter 406mm,90L, 20mpa, CNG tank, composite steel cylinder
-
CNG-2, diameter 406mm,90L, 20mpa, CNG tank, Gas cylinder for vehicle
Product Details
| Material | Steel | Use | CNG | |
| Pressure | High | Place of Origin | Zhejiang, China | |
| Brand Name | tianen | Model Number | CNG2-G-406-130-20B |
Product Description
CNG cylinder for vehicle
Specifications
1.ISO11439 standard
2.34CrMo4 CNG cylinder
3.WP/TP:200/300bar
4.For natural gas powered motorcycle
5.ISO BV,ECER110
CNG cylinder for motorcycle, work pressure 200/300bar
Standard: Strictyly manufactured according to ISO11439:2000;
Test: Hydrostatic test, UT test etc that required by ISO standard will be applied to each cylinder;
ISO11439 CNG cylinder for vehicle series:
OD(mm): 232, 267, 325, 356, 406;
Water capacity(L): 20, 25, 28, 34, 40, 50, 52, 55, 60, 65, 70, 75, 80, 90, 100, 110, 113, 130, 140, 145, 160, 198 etc;
Composite cylinder can be provided as well.
Company:Founded in 1953
Monthly export quantity:20,000pcs
Clients from: CIS, Latin Amercia, Asia, Europe, middle east, Africa etc
| Type: CNG2-G-356-65-20B Manufacturer: Zhejiang Tianen Pressure Vessel Co., Ltd. Nominal Outer Dia.(mm):356 Volume(L): 65 Length(mm): 860 Weight(kg): 56 Nominal working Pressure(MPa): 20 |
CNG Cylinder type II | ||||||
Serial No. | Type | Nominal Outer Dia. (mm) | Volume (L) | Length (mm) | Weight (kg) | Nominal working Pressure (MPa) |
1 | CNG2-G-325-50-20B | 325 | 50 | 810 | 42 | 20 |
2 | CNG2-G-325-60-20B | 325 | 60 | 930 | 51 | 20 |
3 | CNG2-G-325-65-20B | 325 | 65 | 995 | 56 | 20 |
4 | CNG2-G-325-70-20B | 325 | 70 | 1060 | 58 | 20 |
5 | CNG2-G-325-80-20B | 325 | 80 | 1200 | 66 | 20 |
6 | CNG2-G-325-90-20B | 325 | 90 | 1330 | 74 | 20 |
7 | CNG2-G-325-100-20B | 325 | 100 | 1460 | 82 | 20 |
8 | CNG2-G-325-110-20B | 325 | 110 | 1590 | 90 | 20 |
9 | CNG2-G-325-120-20B | 325 | 120 | 1720 | 98 | 20 |
10 | CNG2-G-356-65-20B | 356 | 65 | 860 | 56 | 20 |
11 | CNG2-G-356-70-20B | 356 | 70 | 912 | 58 | 20 |
12 | CNG2-G-356-75-20B | 356 | 75 | 965 | 61.5 | 20 |
13 | CNG2-G-356-80-20B | 356 | 80 | 1020 | 62 | 20 |
14 | CNG2-G-356-90-20B | 356 | 90 | 1146 | 74 | 20 |
15 | CNG2-G-356-100-20B | 356 | 100 | 1256 | 82 | 20 |
16 | CNG2-G-356-110-20B | 356 | 110 | 1366 | 89 | 20 |
17 | CNG2-G-356-120-20B | 356 | 120 | 1476 | 96 | 20 |
18 | CNG2-G-356-200-20B | 356 | 200 | 2356 | 155 | 20 |
19 | CNG2-G-406-80-20B | 406 | 80 | 840 | 76 | 20 |
20 | CNG2-G-406-90-20B | 406 | 90 | 925 | 85 | 20 |
21 | CNG2-G-406-100-20B | 406 | 100 | 1020 | 88 | 20 |
22 | CNG2-G-406-110-20B | 406 | 110 | 1090 | 90 | 20 |
23 | CNG2-G-406-120-20B | 406 | 120 | 1170 | 97 | 20 |
| |
If you have any questions, please feel free to contact me, and I will do my best to cooperate with you.
