Home > Products > Gasoline Water Pump > KINGCHAI Power Machinery 5.5Hp Honda Mini Gasoline Engine Water Pump WP20

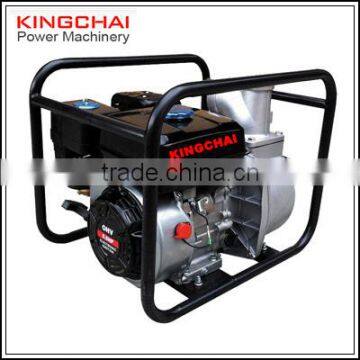

KINGCHAI Power Machinery 5.5Hp Honda Mini Gasoline Engine Water Pump WP20
- NINGBO/SHANGHAI PORT
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
KINGCHAI Power Machinery Spare parts 3Inch Gasoline Water Pump 4inch
-
KINGCHAI Power Machinery Price of Small Petrol Water Pump
-
Kingchai Honda Gasoline Engine Water Pump 2inch/3inch WP20/WP30
-
High Quality Domestic Use Garden Pump Gasoline Water Pump 5.5HP/6.5HP
-
Hot Sale Home Use Gasoline Water Pump 1inch 1.5inch,2inch,3inch 4inch Dubai Prices
-
China Kingchai High Quality 3inch Agriculture Pump CE Gasoline Water Pump
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KINGCHAI | |
| Model Number | WP20/WP30/WP40 | Theory | Mixed Flow Pump | |
| Structure | Piston Pump | Usage | Water | |
| Power | Other, 5.5Hp | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Other, water |
Product Description
KINGCHAI Power Machinery 5.5Hp Honda Mini Gasoline Engine Water Pump WP20
- Specificatioin:
Gasoline Water Pump | |||||
Type | WP10 | WP15 | WP20 | WP30 | WP40 |
Outlet Size(mm) | 25 | 40 | 50 | 80 | 100 |
Inlet size(mm) | 25 | 40 | 50 | 80 | 100 |
Speed (rpm) | 6500 | 3600 | 3600 | 3600 | 3600 |
Displacement Q.max(m3/h) | 8 | 21 | 36 | 60 | 108 |
Lift H.max(m) | 20 | 20 | 26 | 28 | 28 |
Suction(m) | 7 | 7 | 7 | 7 | 8 |
Engine Model | KC1E40F | KC154F | KC168F | KC168F | KC173F |
Engine Type | 2-stroke | 4-stroke | |||
Bore×Stroke(mm) | 40×34 | 54×38 | 68×45 | 68×45 | 73×58 |
Displacement(cm3) | 43 | 87 | 163 | 163 | 242 |
Compression Ratio | 7.7:1 | 7.7:1 | 8.5:1 | 8.5:1 | 8.2:1 |
Max Power Output(HP/rmp) | 1.5/6500 | 2.5/3600 | 5.5/3600 | 5.5/3600 | 8/3600 |
Max Torque(N·m/rpm) | 1.8/5000 | 4.2/2800 | 11/2500 | 11/2500 | 17/2500 |
Ignition System | C.D.L | Non-contact transistorized ignition(TCI) | |||
Start Model | Recoil an hand -operated | ||||
Air Cleaner | semi-dry | semi-dry | semi-dry | semi-dry | semi-dry |
Fuel Tank Capacity(L) | 1.2 | 1.6 | 3.6 | 3.6 | 6.0 |
Fuel Consumption(g/Kw.h) | 610 | ≤450 | ≤450 | ≤450 | ≤392 |
Oil Capacity(L) | / | / | 0.6 | 0.6 | 1.1 |
Packing Dimensions (mm) | 390×300×340 | 450×345×360 | 480×385×415 | 505×385×460 | 620×445×555 |
N.W/G.W(Kg) | 10 | 17.5 | 22.5 | 25 | 45 |
loading quantity in 20′ | 684 | 480 | 360 | 330 | 180 |
loading quantity in 40′ | 1404 | 1020 | 720 | 690 | 380 |
loading quantity in 40′HQ | 1638 | 1190 | 864 | 828 | 380 |
-Features & Picture
1. Adopt OHV engines 2. Close in structure and convenient in operation 3. Low noise,less oil consumption, light weight and large discharge 4. No need power source, safe in using, being the ideal selection of agricultural irrigation and industrial-use water 5. One year warranty
- Orther gaoline generator productions
-Factory & Workshop
- Packaging & Shipping
-Certificate
-Contact Information:
-FQA:
1.Q:Are you a factory or trading company? A: We are a factory.2.Q:Where is your factory located? A: Our factory is in Yongkang City, Zhejiang Province, China.
we have one offce in Taizhou city, which is near Ningbo & Shanghai.
3.Q:What is the material of your products
A: Iron,Steel,plastic,etc.
only new material can be used for our products
4.Q:How about quality control in your factory? A:"Quality is first, Customers are friends".
Yongkang Fushitong people are always paying great attentions to quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
5.Q:How about guarantee?
A: It's within three months after goods is discharged in the destination.
During that period,if some breakdown easily spare parts need to change,my factory offers free.
For example, fuel cock,spark plug,starting hand,etc.
