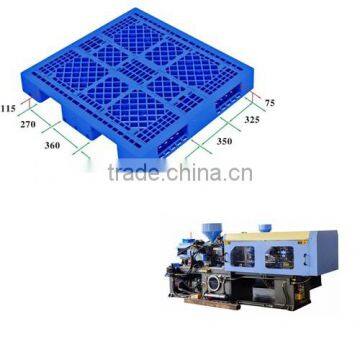

plastic pallet injection molding machines 1180ton
- 30 Set / Sets per Month
- Shanghai Port
- T/T
You May Like
Product Details
Condition | New | Type | Other, pallet injection | |
Style | Horizontal | Brand Name | LONG SHENG | |
Model Number | LSF1180 | Place of Origin | Jiangsu, China | |
Plastic Type | Thermoplastic | Automatic | Yes | |
Injection Weight | 5005g | Injection Rate | 930g/s | |
Clamping Force | 11800kn | Opening Stroke | 1150X1100mm | |
Power(W) | 68kw | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Standard Export Packing
Product Description
plastic pallet injection molding machines 1180ton
1.Precision,
2.Fast,
3.Energy saving,
4.Stable and super long life plastic machine
INJECTION UNIT |
| Unit | LSF-1180 | ||
A | B | C | |||
Screw Diameter | Mm | 110 | 120 | 130 | |
Screw L/D Ratio | L/D | 22 | 20.2 | 18.6 | |
Short Size | Cm3 | 4619 | 5500 | 6452 | |
Injection weight | G | 4203 | 5005 | 5871 | |
Injection Rate | g/s | 785 | 930 | 1010 | |
Plasticizing capacity | g/s | 150 | 173 | 192 | |
Injection Pressure | Mpa | 174 | 146 | 125 | |
Screw Speed | Rpm | 0-110 | |||
CLAMPING UNIT | Clamp Force | KN | 11800 | ||
Space Between Tie Bars | mm | 1150X1100 | |||
Toggle Stroke | mm | 1200 | |||
Max. Mold Height | mm | 1200 | |||
Min. Mold Height | mm | 500 | |||
Ejector Stroke | mm | 320 | |||
Ejector Tonnage | KN | 215 | |||
Ejector Number | P | 21 | |||
OTHERS | Max. pump Pressure | Mpa | 16 | ||
Pump motor powder | Kw | 45+45 | |||
Heater Power | Kw | 68 | |||
Machine Dimension(L*W*H) | M | 12X2.8X3.3 | |||
Machine Weight | T | 56 | |||
| Oil Tank volume | L | 1950 |
ADVANTAGES:
(1) Energy saving
(2) High speed system response with short moulding cycles
(3) Significant working life of the hydraulic oil and hydraulic components, thereby reducing frequency of maintenance and maintenance costs
(4) The extra oil filtration requirements are met by special imported filter components
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- To provide EUROMAP robot interface.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
Packaging Detail: | Plastic injection molding machine in wooden pallet |
Delivery Detail: | 15-45days after receiving TT deposit or L/C at sight |
Good Quality: Strict quality control system .Good reputation in the market.
Fast Delivery: High efficiency forwarder,quality ,quantity and timely shipment.
Good Service: Our company provide one-stop service
Founded in 2001,Changzhou Longsheng Machinery Co.Ltd
Is a professional manufacturer of plastic pallet injection molding machines ,
With all those advantages and leading technology implementation,LSF series injection molding machines are extremely suitable for the injection molding processing of many different types of plastic productssuch as precision electronics, telecommunication equipment, home appliances, toys, auto parts and so on.
Company Profile

Changzhou Longsheng Machinery Co., Ltd. (Longsheng) is located at Zhonglou Science and Technology Industry Park of Changzhou. We mainly produce and sell plastic injection molding machines, with high technology and reliable quality. Our products are selling well all over the world. We compare price with the same quality, while comparing quality with the same price, and compare service with the same quality and price, so as to improve our management. We always integrate optimized designs with manufacture and good sales service together. We utilize 24 hours networking for sales services. All lifecycle services for products and smile are our characteristics. Ways to success start from Longsheng. With strong capability, Longsheng is devoted to building a brand name - Longsheng Machinery Series. The clamp force of our machines ranges from 600KN to 16800KN, and shot weight ranges from 63g to 10,000g. Our plastic injection molding machines are widely applied in the areas of automobile, mechanical, chemical, and electrical industries, daily supplies, and toys. With good quality, professional services and sincere credit, Longsheng can go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefits. We can try to create a prosperous future with our customers as we always do.
