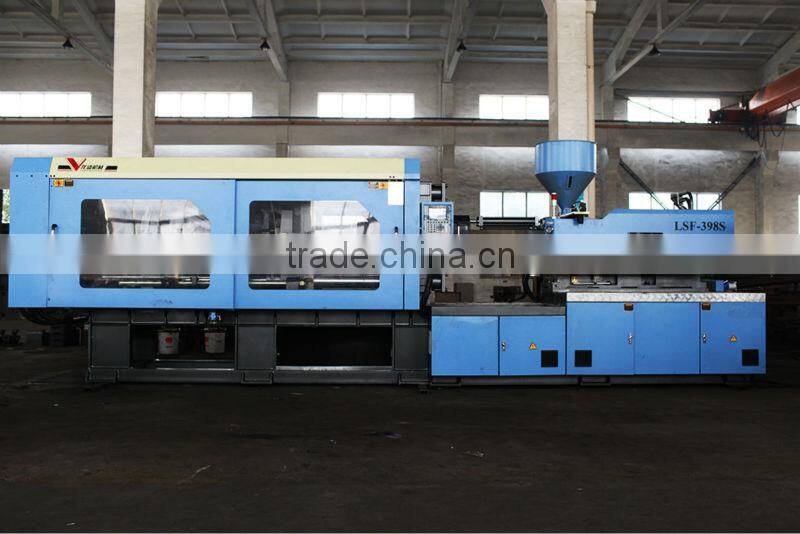

Pet Perform Machine 398ton
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Horizontal | Brand Name | LONGSHUN | |
| Model Number | LSF398 | Place of Origin | Jiangsu, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 1500g | Injection Rate | 356g/s | |
| Clamping Force | 3980KN | Opening Stroke | 760mm | |
| Power(W) | 30KW | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
standard packing.
Product Description
About Longsheng Machinery
- We are professionally making pet perform machine 398ton for 15 years, we have rich experiece engineer team who can design and make professional injection machine according to your real production need. We also supply technology service, fast after sales response, training and commission the macines in your factory .
- Emplyee: 200
- Stable quality, durable machine
- Faster service, caring& good after sales service team
parameters of pet perform machine 398ton
.
item | unit | pet perform machine 398ton | ||
A | B | C | ||
screw diameter | mm | 70 | 75 | 80 |
screw L/D ratio | L/D | 21.4 | 20 | 18.8 |
theoretical shot size | cm3 | 1385 | 1590 | 1809 |
injection weight | g | 1260 | 1447 | 1646 |
Injection rate | g/s | 310 | 356 | 405 |
Plasticizing capacity | g/s | 60 | 65 | 70 |
Injection pressure | Mpa | 195 | 158 | 139 |
Screw speed | rpm | 0-165 | ||
Clamp force | KN | 3980 | ||
Space between tie bars | mm | 720*720 | ||
Toggle stroke | mm | 700 | ||
Max. mold height | mm | 760 | ||
Min. mold height | mm | 280 | ||
Ejector stroke | mm | 200 | ||
Ejector tonnage | KN | 110 | ||
Ejector number | p | 13 | ||
Max.pump pressure | Mpa | 16 | ||
Pump motor power | KW | 37 | ||
Heater power | KW | 24.8 | ||
Machine dimension | m | 7.3*2.0*2.2 | ||
Machine weight | t | 16 | ||
Clamping Unit:
1. Optimized Platen Design with high rigidity and enlarged space between tie bars
2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds
3. New ejection system design with longer ejection stroke, bigger space and better rigidity
4. Hydraulic drivien gear-type mold height adjustion mechanism
5. Relocation of mechanical safety interlock for easier operation
6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit:
1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process
2. High Speed & Pressure injection structure can improve the injection speed
3. Twin nozzle cylinder ensures more even & stable structure
4. Specilized screw barrel design for various appliance
Hydraulic System:
1. The double proportional compound valve control system pressure & flow, highly sensitive & stable
2. Imported high quality Pump, low in noise, long in lifespan & stable in performance
3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving
4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision
5. High performance hydraulic valve, less failure, fast switch, convenient maintenance
6. Low pressure mold protect system, which is more suitable for the precise mould
7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
Electrical System:
1. Control by double CPU, the system with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control
2. 8.4" display screen with resolution 800*600, user friendly screen & optional choose of language
3. Equiped with USB(2.0) port & ethernet(100-base T) ports
4. 32 Points input & output, entendable and trouble spot can be replaced easily
5. Linder transducer's resolution is 1/65535, more precise in control
6. 120 technological parameters access can be stored & uploaded with an ordinary USB drives
7. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient.
Servo Controller Part:
1. High Precise Control
The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3%
2. High sensitive response
Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, LSF series is more faster in speed with shorter cycle time and high efficient in production
3. Low noise
Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop
4. Energy Saving
Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 30-80% energy, and achieve first-class energy efficency
5. Water cooling saving
The system condition prevent high pressure uploading without any power output, leads to the water cooling saving
Service for installation, training and dispatching the technician
- if user require dispatching our technical for the new machine installation or operation training, the user will afford the fee for our engineer’s round-trip ticket ,board and lodging during installation ,and salary(100USD/day), we will run the machine and train the workers in buyer place until everything is satisfying .
Packaging Detail: Plastic film, wood pad,
Delivery Detail: 30 days (it is subject to confirmation.)
Company Profile
Changzhou Longsheng Machinery Co., Ltd. (Longsheng) is located at Zhonglou Science and Technology Industry Park of Changzhou. We mainly produce and sell plastic injection molding machines, with high technology and reliable quality. Our products are selling well all over the world. We compare price with the same quality, while comparing quality with the same price, and compare service with the same quality and price, so as to improve our management. We always integrate optimized designs with manufacture and good sales service together. We utilize 24 hours networking for sales services. All lifecycle services for products and smile are our characteristics. Ways to success start from Longsheng. With strong capability, Longsheng is devoted to building a brand name - Longsheng Machinery Series. The clamp force of our machines ranges from 600KN to 16800KN, and shot weight ranges from 63g to 10,000g. Our plastic injection molding machines are widely applied in the areas of automobile, mechanical, chemical, and electrical industries, daily supplies, and toys. With good quality, professional services and sincere credit, Longsheng can go along with new and old clients, to realize the complementary of each other's advantages, resource sharing and mutual benefits. We can try to create a prosperous future with our customers as we always do.
