16" Variable Speed Al.Table Scroll Saw Machine
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Shandong, China | Brand Name | ALLWIN | |
| Model Number | SSA16LVR | Voltage | 120V/230V | |
| Power(W) | S1:90W(S2: 5 Min. 125W) | Dimension(L*W*H) | 670 * 325 * 400MM | |
| Weight | 14.5KG | Certification | CSA/CE/RoHS | |
| Warranty | 2 Years | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
US$2M PLI Covered
3,300 ~10,000rpm PTO Shaft Speed
500~1650SPM Cutting Speed
405mm Cutting Width & 50mm Depth
Flexible Light

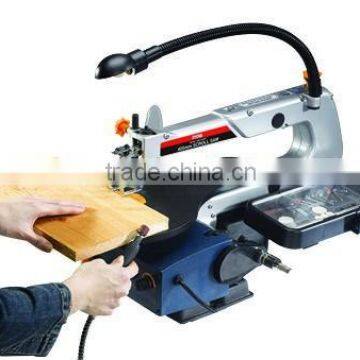

16"(405mm) Scroll Saw w/ Light & Flexible Shaft
Model No.: SSA16LVR
US$2M PLI Worldwide Warranty Covered!
Features:
1. 3300~10,000RPM PTO Flexible Shaft;
2. 500 ~ 1650SPM Variable Cutting Speed;

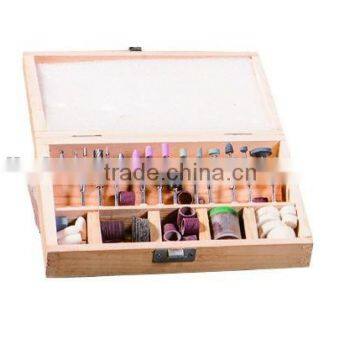

3. 100pcs Tool Box Kit;
4. 12V,10W Flexible Work Light;
5. Table Slots & Miter Gauge Help for Striaght Cutting;
6. Blade Safety Guard
7. Flexible Work Light
8. Table Side Tilt & Fixing;
Spec.:
| Spec | Model | SSA16LVR |
| Motor(S1) | hp | 1/8 |
| w | 90 | |
| Working Speed(SPM) | -50Hz | 550 ~ 1650 |
| -60Hz | ||
| Rotary Shaft Speed | -50Hz | 3,300 ~ 11,000 |
| -60Hz | ||
| Work Table Size | in. | 10" x16" |
| mm | 254 x 415 | |
| Max Cutting Depth | in. | 2" |
| mm | 50 | |
| Max Cutting Size | in. | 16“ |
| mm | 405 | |
| Work Part Size | in. | 5” |
| mm | 127 | |
| Base Material | Cast Iron | |
| Work Table Material | Al. | |
| Safety Approvals | CSA/CE/RoHS | |
Factory Tour:

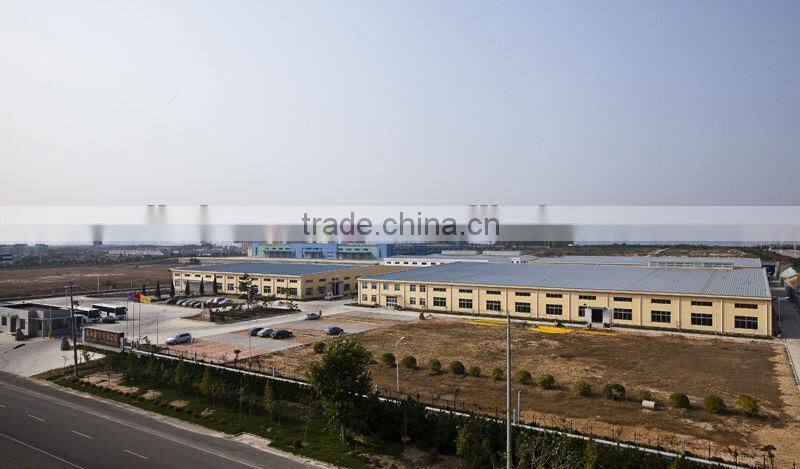

1, New Power Tool Factory @ 66600 SQM Land Space

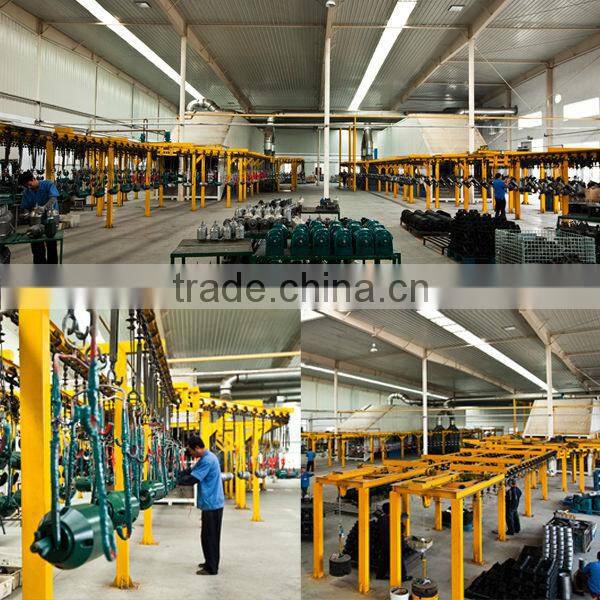

2, 4 LEAN Semi-automatic Motor Assembly Lines
3, Painting/Powder Coating Workshop
4, High Efficiency Lean Assembly Lines

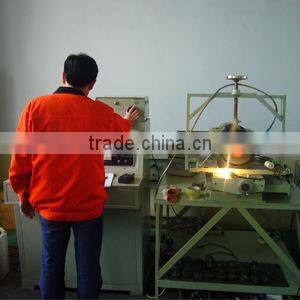

5. Life Testing & Pkg Drop Test
6, Ready Stocks
