Industrial Professional Garage Storage Shelving
- DALIAN
- T/T
You May Like
-
Stackable Collapsible Pet Preforms Wire Container Used for Storage
-
Supermarket Warehouse Folding Cargo Pallet Trolley
-
Industrial Stackable Foldable Storage Metal Wire Mesh Containers
-
Metal Steel Row Spacer of Storage Racking System
-
Warehouse Storage Heavy Duty Upright Metal Post Feet Protector
-
Large Collapsible Welded Metal Steel Wire Mesh Storage Containers
Product Details
| Place of Origin | Liaoning, China | Brand Name | HML | |
| Model Number | Step Beam | Type | Boltless / Rivet Shelving | |
| Material | Other, Steel, Mild Steel | Feature | Corrosion Protection | |
| Use | Tool Rack | Certification | Other, BV | |
| Weight Capacity | 680 kg | Width | 460 | |
| Height | 1840 |
Product Description
Industrial professional garage storage shelving
Specifications
| PRODUCT INFORMATION | STEP BEAM(EL08004) | |
| Description: | Bolt-free design assembles in minutes. Tough powder-coat finish resists rust and scratches. | |
| Product specification: | Band steel 5 shelves(MDF) L*W*H:122*46*184cm | |
| Each shelf holds up to 1500lbs(680kg) | ||
| Certification: | BV | |
| Container Size: | 20'FT | |
| QTY: | 280 sets | |
| Carton Size: | HxWxL:125*51*13.5 cm | |
| N.W/G.W(kg) | 52.5kg/54.5kg | |
| Delivery Day: | Three Weeks | |
| The Thickness of Steel: | POST:1.2mm BEAM:1.2mm MDF:15mm | |
Main Features
1. Post: concealed slot angle post
2. Beam: double rivet Z
3. Shelf material: 15mm particle board
4. Adjustable shelving
5. Corrosion-resistant
6. Easy to assemble
7. Dual assembly options, shelf or workbench
8. Large shelves for bulky items
9. No nuts or bolts
10. The most commonly used, of all storage systems for palletized goods. Low cost. Easy installation and simple to adjust.
11. Compatible with most types of handling equipment.
12. Less storage density compared to other storage systems
More about shelving :
Using Scope:
Widely used in office,house,warehouse, storage of goods on display and demonstration.
Notes:
During the installation process, in order to prevent scratches and deformation of equipment,please use the rubber hammer
The actual weight is no higher than the rated load,meanwhile,acidic,alkaline and other corrosive liquids contacts and avoided so as not to affect the lifetime
Customized Service
We build and sell all kind of storage systems: Please inform system rack manufacturer the listed questions in your inquiry for quick quotation:
1.The dimension of your warehouse
2.Loading capacity of each layer
3.Size of shelf ( L/W/H )
4.Quatity of layers/bays
5.RAL color you want
6.The path of the transportation
You can send us your CAD drawing we will give you a quick online quote, or you just tell us your tridimensional dimension of your warehouse
we can design and draw drawings for you within 48 hours

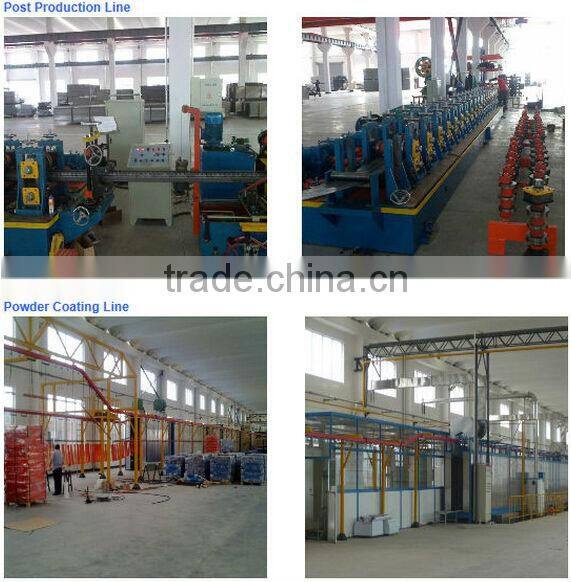

Skilled and highly controlled working process
With over 20 years metal products manufacturing experience.
Dalian Huameilong Metal Products Co.Ltd , established in 1993,one of the largest manufacturers of transportation security facilities,
material handling equipments and welded wire mesh products in North China.We have already past the ISO 9001:2000 and B&V international well-known certification.
Corporate Culture: Quality is enterprises’ life and motivation and should be guaranteed by whole workers
1, What is the material being used for your products?---Mild steel Q235, Q195
2, How is the goods being packed?Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?---Electro galvanized ,hot dip galanized, painting or powder coating is available.
5, What is the loading capacity?--- In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldnt find the right model from the products list, is custom size available?---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don' have drawing or picture available for th custom products, could you design it for me?---Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)
10 What is the minimum quantity I can order?
---1x20'GP - qty is variable depend on the size.
11 What is your average production lead time?---2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
---3~10 years warranty in case thatA) Proper handling during operation, correctly forklift handling while stacking/un-stackingB) Overloading is prohibitedC) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
13 What happen in case any quality problem is identified after arrival?
---We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
