Forged Steel Bar Cr12 Steel Round Bars

Forged steel bar Cr12 Steel round bars

1.Specification of Cr12 Steel

           Round bar

Diameter(mm)

Length (mm)

20~800

3000~5800

                Plate

Thickness(mm)

Width (mm)

Length (mm)

Max:800

205~810

2000~4000

The size can be customed!

2.Equivalent grade of Cr12 Steel

AISI/ASTM

GB

DIN

JIS

BS EN ISO

D3

Cr12

1.208

SKD1

X210Cr12

3.Chemical composition(%) of Cr12 Steel

C

Si

Mn

Cr

S

P

2.00-2.30

≤0.40

≤0.40

11.50-13.00

≤0.03

≤0.03

4.Heat treatment of Cr12 Steel

Isothermal annealing:

- Heat to 850°Chold for 1/2 hour to 1 hour;

- Furnace cooling to 770°C and hold at temperature for at least 10 hours;

-Cool by 10°C /h to 720°C;

-Cooling in air.

Stress relieving:

   To be carried out after machining and before the final heat treatment.

-Heat to 650-700°C, hold for 4/6 hours:

-Furnace cooling to 330-350°C;

-Cooling in air.

Hardening:

-Initial preheating to 350-450°C;

-Second preheating to 750-850°Cin salt bath at 850°C;

-Austenitizing at 960-100°C;

-Cooling in fluid oil.

Tempering hardness: 64-65 HRC

5.Application of Cr12 Steel

1.Steel with wear resistance and fairly good dimensional stability during heat treatment.

2.Rolls for cold strip mills and wire squeezer mills, circular knives and shear blades.

3.Dies for small metal parts, punches and drawing dies, dies for sintering, forming tool rollers, shear blades.

4.Molds for plastic materials. Statically and dynamically stressed components for vehicles,engines and

 machines.

5.For parts of larger cross-sections,crankshafts,gears,wear-resisting press tool and guide palte.ect.

6.Characteristic of Cr12 Steel

1.Very high resistance against abrasive and adhesive wear due to a high volume of hard carbidesin the steel.

2.Matrix moderate machinability good dimensional stability

3.Toughness and through hardenability

7.Machinability

The machinability rating of D3 is roughly 25 % that of free machining carbon steel 1018.

Due to its abrasion resistant nature, machining in the hardened condition should be limited to finish grinding.

8.Inspection

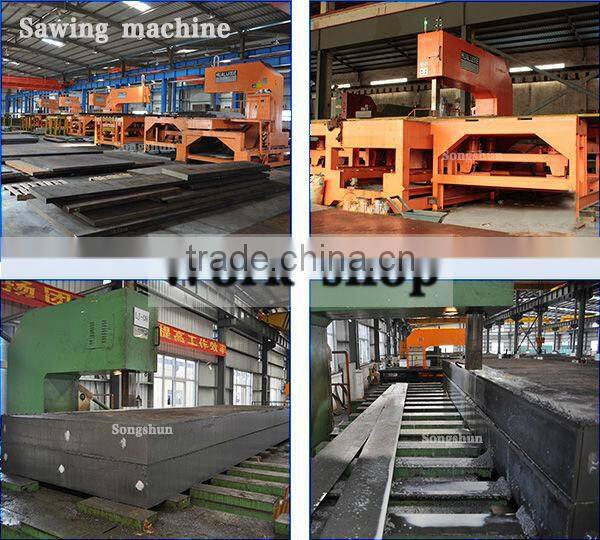

Cutting service provided

Workshop is equipped with the most advanced CNC grinding machine, CNC milling machine, Vertical and Horizontal band saw cutting machine, Max. 30MT Loading Cranes, ultrasonic Test machines... These equipments are manipulated with professional engineers with many years work experiences.

Cr12 Steel each step is strictly controlled to make sure the products are high quality!

• Dongguan Songshun Mould Steel Co., Ltd. is located in Chang'an Town - the famous town of mold in Pearl River Delta of China. After 10 years' development.
• Now we have the capacity to provide complete services from manufacturing and marketing to distributing.
• Our steel has exported all over the world.
• Our factories for peeling,milling,grinding,cutting and heat treatment etc.
• The export steel will through high quality detection.
• If you cooperate with us ,you will be our returned customer.

Hot work tool steel

DIN

1.2344,1.2343,1.2365,1.2581,1.2367,1.2714 etc.

AISI

H13,H11,H10,H21,L6 etc.

JIS

SKD61,SKD6,SKD5,SKT4 etc.

Cold work too steel

DIN

1.2601,1.2379,1.2080,1.2363,1.2842,1.2419,1.2510,1.2550,1.2767 etc.

AISI

D2,D3,A2,O2,O1 etc.

JIS

SKD1,SKD11,STD12,SKS31,SKS3 etc.

Plastic mould steel

DIN

1.2083,1.2311,1.2312,1.2316,1.2738 etc.

AISI

P20, P20+Ni,P20+S,420 etc.

JIS

NAK80

High speed tool steel

DIN

1.3355,1.3343

AISI

T1,M2

JIS

SKH2,SKH51

Structural alloy steel

DIN

1.7225,1.6511

AISI

4140,4340

JIS

SCM440

We also supply customized special steel, welcome for more information.
