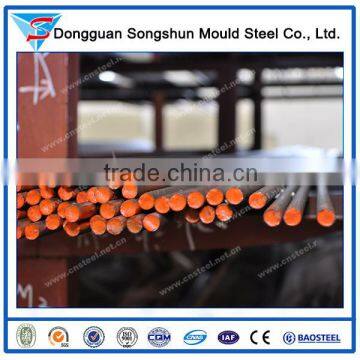

Hot Forged Round Bar AISI 420 Steel

Hot Forged Round Bar AISI 420 Steel

1.Specifications of Hot Forged Round Bar AISI 420 Steel

2.Chemical compositon(%) of Hot Forged Round Bar AISI 420 Steel

3.Delivery condition

4.Heat treatment of Hot Forged Round Bar AISI 420

Annealing:

-Heat to 750~800°C, with hold at minimum rate for 3 hours.

-Furnace cooling.

Stress relieving:

To be carried out after machining and before the final heat treatment.

Heating to 600~650°C for 2 hours.

Hardening:

Preheating to 600~700°C;

- Austenitizing at 990~1040°C

- Oil or thermal bath cooling at 500~550°C, then oil cooling according to the steel shape and size.

Quenched hardness: HRC 52~56

Tempering:

To be carried out after hardening according to the required hardness; at 170-270 °C in order to match hardness and resistance to corrosion; permanence for at least 2 hours;

Tempering must be repeated at least twice at a temperature 30 °C lower than the previous. Cooling in air.

5.Characteristic of Hot Forged Round Bar AISI 420

1 medical carbon high chrome martensite shape stainless steel

2 high purity good performance of high mirror polish,anti-acid, anti-rust after heat treatment

3 good corrosion resistance

4 resistance for erosive attack,good stability

6.Application of Hot Forged Round Bar AISI 420

Used for plastic moulds, particularly for acid aggressive plastics (e.g. acetate and PVC), or plastics containing abrasive fillers. Suited for the manufacture of glass, such as moulds of optical products.

Cutting service provided

Workshop is equipped with the most advanced CNC grinding machine, CNC milling machine, Vertical and Horizontal band saw cutting machine, Max. 30MT Loading Cranes, ultrasonic Test machines... These equipments are manipulated with professional engineers with many years work experiences.
