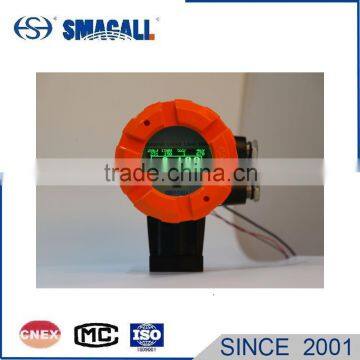

Externally Ultrasonic Water Level Transmitter with One-key Recovery Function
- 500 Set / Sets per Month
- Shanghai Tianjin or other ports customer request
- T/T Credit Card
You May Like
-
Externally Automatic Ultrasonic Water Level Transmitter
-
Non-contact Installation Ultrasonic Water Level Transmitter
-
Very Intelligent Externally Ultrasonic Water Level Transmitter Price
-
Smagall Manufacture External Liquid Level Control
-
External explosion proof ultrasonic petrol liquid level measurement meter
-
Four-wire system non contactl liquid level controller with wide application
Product Details
| Place of Origin | Shaanxi, China | Brand Name | SMAGALL | |
| Model Number | HS-2000 |
Product Description
Externally Ultrasonic Water Level Transmitter with One-key Recovery Function
The intelligent external ultrasonic liquid level meter applies advanced signal processing technology and high-speed signal processor. It overcomes the obstacle of tank wall thickness and ultimately achieves non-contact measurement of liquid height in hermetic tanks.
The ultrasonic sensor is designed to be mounted at the bottom of the tank exine without the need of drilling any holes on the tank so that easy assembly is, hence, realized and the measurement will not interrupt the normal operation of the liquid tank.
Detailed Images:
| Items | Values |
| Power supply | 24V DC, ±15%,10W |
| External material | cast aluminum |
| Tank wall thickness | 2~70mm |
| Measuring range | 3m,5m,10m,20m,30m |
| Measuring error | 1‰~1% |
| Liquid level display | 6 digits OLED display (Unit: m) |
| Display resolution | 1mm |
| Short time repetition rate | 1mm |
| Span shift | ±10m |
| Current output | 4~20mA, max load 750Ω |
| Communication interface | RS-485, IrDA |
| Ambient temperature for operation panel | -50℃~+70℃ (-58℉-158℉) |
| Ambient temperature for ultrasonic probe | -50℃~+120℃ (-58℉-248℉) (Probe with wider temperature range is available) |
| Ambient humidity | 15%~100%RH |
| Explosion proof mark | ExdⅡCT6 |
| Housing ingress protection | IP66 |
| Net weight | 3.4kg |
- Non contact measurement of liquid level
- Self calibration
- Infrared debugging during working
- Self test
- One-key recovery
- On-site display and remote transmitting
It is suitable to acquire curate liquid level measurement for high pressure hermetically tank containing toxic, strong acid, strong alkali and various kinds of pure liquids. It has wide application under various conditions.
- Vertical tank installation:
- Spherical tank installation:
- Horizontal tank installation:
