Immersion Gold Rigid PCB Board
- shenzhen
- T/T Credit Card
You May Like
-
audio player circuit board printed circuit board pcb
-
PCB Clone,PCB design,Electronic PCB Copy,OEM/ ODM service
-
High quality pcb prototype/elextronic pcb Manufacturer
Quality Choice
-
Low Cost PCB Prototype Machine Prototype PCB
-
one-stop pcb making,components sourcing and pcb assembly manufacturing
-
OEM Rigid Wifi PCB Board
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | FCPCBA003 | Number of Layers | 4-Layer | |
| Base Material | FR4 | Copper Thickness | 1OZ | |
| Board Thickness | 0.40mm | Min. Hole Size | 0.1mm | |
| Min. Line Width | 0.15mil | Min. Line Spacing | 0.15mil | |
| Surface Finishing | immersion gold |
Product Description

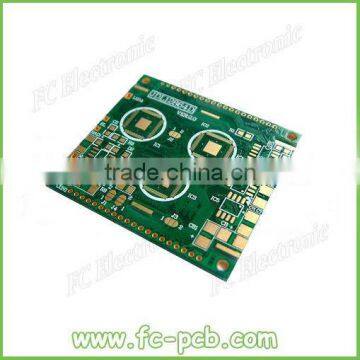

Immersion Gold Rigid PCB Board
Your Best Choice for Printed Circuit Board Manufacturing & Assembly
PCB material we often used:
Kingboard,Shengyi,Guoji,Nanya
.tw
PCB BOARD MANUFACTURE AND PCB ASSEMBLY SERVICE:
* PCB design,pcb layout and pcb production
* Every board is to IPC Class II or higher standard
* All boards are UL approved and made in ISO-9001 certified facilities
* 100% tested (flying probe or E-test)
* Free panelizing and PCB design check with no extra cost
* 24/7 engineering support. We work with customers closely to ensure the boards are standards compliant.
Our PCBs are used for wide range of electronic products,
Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,Telecomunication ,LED, etc.
TECHNICAL DATA:
PCB Item | Manufacture Capacity |
Layer Counts | 1--20L |
Base Material | FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
Material Thickness(mm) | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
Max board size(mm) | 1200x400mm |
Board Outline Tolerance | ±0.15mm |
Board Thickness | 0.4mm--3.2mm |
Thickness Tolerance | ±8% |
Minimum line/space | 0.1mm |
Min Annular Ring | 0.1mm |
SMD Pitch | 0.3mm |
Holes |
|
Min Hole Size(mechanical) | 0.2mm |
Min Hole Size(laser hole) | 0.1mm |
Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol | ±0.075mm |
Plating |
|
HASL/LF HAL | 2.5um |
Immersion Gold | Nickel 3-7um Au:1-5u'' |
Surface Finish | HAL,lead-free HAL,ENIG,Plated Gold,Immersion Gold,OSP |
Copper |
|
Copper Weight | 0.5--6oz |
Color |
|
Soldermask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
Silkscreen | White, Black, Blue,Yellow |
Acceptable File Format | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
Certificate | ROSH,ISO9001,UL |
LEAD TIME FOR PRODUCTION ORDERS:
Sample Lead time | Mass production lead time | |
Single sided PCB | 1~3 | 4~7 |
Double sided PCB | 2~5 | 7~10 |
Multilayer PCB | 7~8 | 10~15 |
PCB and Assembly | 8~15 | 15~20 |
QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if available.
- Inspection method for PCB Assembly.
We purchase material from Original company.
We make products by strict engineer processes .
We send products by vacuum package and carton box .
We always try our best ! So we do,we conquer,and we get there! Try us!
