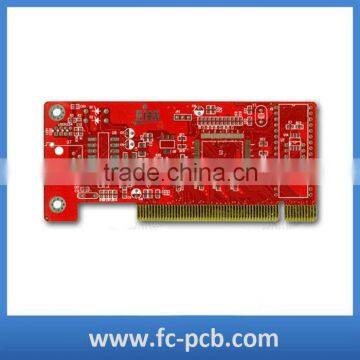

Red Solder Mask 2-layer PCB

FOB Price

US$ 0.1 - 5 / Piece

5 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OEM only
Model Number	FCPCBA003	Base Material	FR4
Copper Thickness	1oz	Board Thickness	1.6mm
Min. Hole Size	0.1mm	Min. Line Width	0.1mm
Min. Line Spacing	0.1mm	Surface Finishing	Immersion Gold

Product Description

Red Solder Mask 2-layer PCB
Your Best Choice for Printed Circuit Board Manufacturing & Assembly

PCB material we often used:

Kingboard,Shengyi,Guoji,Nanya

.tw

PCB BOARD MANUFACTURE AND PCB ASSEMBLY SERVICE:

* PCB design,pcb layout and pcb production

* Every board is to IPC Class II or higher standard

* All boards are UL approved and made in ISO-9001 certified facilities

* 100% tested (flying probe or E-test)

* Free panelizing and PCB design check with no extra cost
* 24/7 engineering support. We work with customers closely to ensure the boards are standards compliant.

Our PCBs are used for wide range of electronic products,

Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,Telecomunication ,LED, etc.

TECHNICAL DATA:

PCB Item	Manufacture Capacity
Layer Counts	1--20L
Base Material	FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)
Material Thickness(mm)	0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2
Max board size(mm)	1200x400mm
Board Outline Tolerance	±0.15mm
Board Thickness	0.4mm--3.2mm
Thickness Tolerance	±8%
Minimum line/space	0.1mm
Min Annular Ring	0.1mm
SMD Pitch	0.3mm
Holes
Min Hole Size(mechanical)	0.2mm
Min Hole Size(laser hole)	0.1mm
Hole Size Tol (+/-)	PTH:±0.075mm;NPTH: ±0.05mm
Hole Position Tol	±0.075mm
Plating
HASL/LF HAL	2.5um
Immersion Gold	Nickel 3-7um Au:1-5u''
Surface Finish	HAL,lead-free HAL,ENIG,Plated Gold,Immersion Gold,OSP
Copper
Copper Weight	0.5--6oz
Color
Soldermask	Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue
Silkscreen	White, Black, Blue,Yellow
Acceptable File Format	Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000
Certificate	ROSH,ISO9001,UL

LEAD TIME FOR PRODUCTION ORDERS:

	Sample Lead time	Mass production lead time
Single sided PCB	1~3	4~7
Double sided PCB	2~5	7~10
Multilayer PCB	7~8	10~15
PCB and Assembly	8~15	15~20

QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if available.
- Inspection method for PCB Assembly.

We purchase material from Original company.

We make products by strict engineer processes .

We send products by vacuum package and carton box .

We always try our best ! So we do,we conquer,and we get there! Try us!
