aluminium based board
- shenzhen hongkong
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Base Material | Aluminum | Copper Thickness | 1oz | |
| Board Thickness | 1.6mm | Min. Hole Size | 0.1mm | |
| Min. Line Width | 0.1mm | Min. Line Spacing | 0.1mm | |
| Surface Finishing | Immersion Gold |
Product Description
Specifications

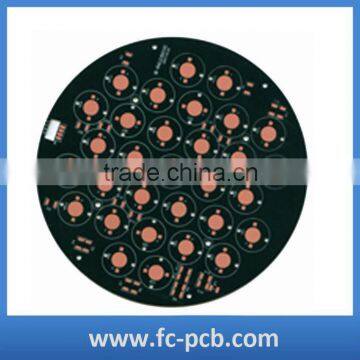

Round LED Light PCB BoardEfficient Quote,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast Material Purchase
Your Source for Printed Circuit Board Manufacturing & Assembly
LED Star board PCB, led light circuit boards
FC Electronics provides PCB prototype fabrication and PCB production capabilites with no limits!We produce a wide range of aluminum pcb which used in LED technologies
LAYER STACK UP:
1. Circuit layer: the equivalent of an ordinary PCB,copper thickness from 1oz to 4oz.
2. Insulation layer: Insulation is a layer of thermal insulating material with low thermal resistance.Thickness: 0.003 "to 0.006" inch is the aluminum pcb core technology.
3. Based Layer: a metal substrate,usually aluminum or copper may be chosen.
TECHNICAL DATA:
| Capability |
Product Type | Al Clad PCB 1 layer~2 layer |
Maximum Panel size | 20"*24" (1170mm*600mm) |
Copper thickness | 0.5oz, 1oz, 2oz, 3oz and 4 oz |
Dielectric Thickness | 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
Substrate Core Thickness | 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm |
Finished Board Thickness | 0.4mm To 4.0mm |
Thickness Tolerance | +/-10% |
Aluminum Machining | Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available |
Min. Finish hole size | 0.25mm |
ing voltage | 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
Min.Track Width | 0.2mm (8mils) |
Min.Track gap | 0.2mm (8mils) |
Min. SMD pad pitch | 0.2mm (8mils) |
Surface Finishing | HASL, HASL Leadfree, Immersion gold, Flash gold, OSP |
Soldermask color | White, Black, others Available |
Legend color | Black, White, others Available |
Etest | YES |
Rohs | YES |
Reference Standard | IPC-A-600G Class 2 |
Special holes | Spot facing, Cup holes |
Data Input | Gerbers, AutoCad, Cam350, PROTEL 99SE,PROTEL DXP, |
DETAILED PRODUCT DESCRIPTION:
Advantage: High Heat dissipation, Electromagnetic Shielding, High Mechanical Strength, Excellent processing performance.
Application: Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.
LEAD TIME FOR PRODUCTION ORDERS:
| Sample Lead time | Mass production lead time |
Single sided PCB | 1~3 | 4~7 |
Double sided PCB | 2~5 | 7~10 |
Multilayer PCB | 7~8 | 10~15 |
PCB and Assembly | 8~15 | 15~20 |
QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly.
