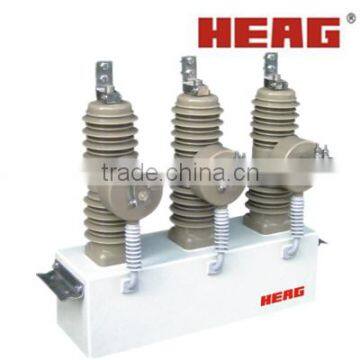

ZW43-12 Outdoor AC Vacuum Circuit Breaker

Summary of ZW43-12 Outdoor AC Vacuum Circuit Breaker:
ZW43-12 model outdoor AC vacuum circuit breaker is used to make and break load current, overload current and short-circuit current in12kV, 50/60Hz power system. It is applicable for substations, industry and mining, urban and rural electricity power networks, especially applicable in occasions with frequent operation and automatic power distribution network. It accords with the standard of IEC62271-100 & GB1984: AC high voltage cir cuit breaker, IEC60694 & GB/T11022: HV general technical requirement of switch and control apparatus.

Technical Specification of ZW43-12 Outdoor AC Vacuum Circuit Breaker:

Structure of ZW43-12 Outdoor AC Vacuum Circuit Breaker:

Ambient Condition of ZW43-12 Outdoor AC Vacuum Circuit Breaker:
1. Altitude: ≤2000mm;
2. Ambient temperature: -40℃~+45℃ ;
3. Earthquake intensity: ≤8 degree;
4. Ice thickness: 10mm;
5. Wind speed: ≤34m/s (air pressure≤700Pa).

Product Feature of ZW43-12 Outdoor AC Vacuum Circuit Breaker:
1. Mini vacuum arc extinguish
High reliability; small volume; long life time; fixed inside the epoxide resin.
2. Epoxide resin sealing
Anti-ozone, anti-ultraviolet; It is firm, light and convenience for transport.
3. Permanent magnet mechanism
Small volume, reliable performance, non-maintenance.
4. Manual breaking
Improve the reliability, It can operate under the urgent condition.
5. Direction tester
It is mounted on the linkage axial to check the opening and closing direction.
6. Switch case
Aluminium-alloy material, anti-rust steel and armor plate.

Certifications:

Cooperation Projects:

Company Pict:
