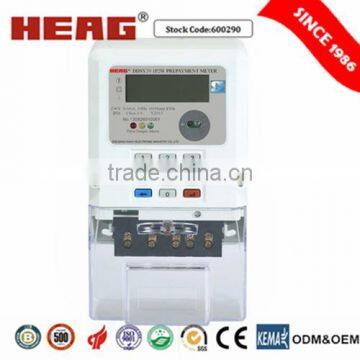

DDSY39 Single phase prepayment energy meter(STS)

    Main Products

Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categaries:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipments and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipments and LV electrical Apparatus.

    Product Details

 >> Summary :

DDSY39 (LED) single-phase prepayment static energy met er is which adopts based on special large-scale integrated circuit and SMT technology, adopting industrial elements and components with long lifetime introduced form abroad. It preserves data under power-off situation. This product conforms to IEC62055-21-2005 & GB/T18460: Electricity metering, prepayment systems. and IEC62053 & GB/T18460.3- 2001: class 1 and class 2 static AC active watt-hour meter. It mainly applies to the occasions like-as advancing power purchasing to carry out power prepayment and max. load control. This product has characteristics like-of long service duration, high accuracy, good over-load capacity and small volume.

 >> Technical Specification :

1. Electrical performance:
Class of accuracy: 1.0, 2.0;
Conformed standards: IEC62053 & IEC62055; GB/T17215-2002; GB/T18460.3-2001;
Normal working voltage: 0.9Un~1.1Un;
Limit working voltage: 0.8Un~1.15Un;
Insulating voltage: ≥2000VAC;
Power consumption: ≤2W&10VA;
Power of voltage circuit: ≤1.5W(8VA);
Power of current circuit: ≤3VA;
Start-up: as reference voltage, reference frequency and power factor are 1, load current is 0.4 %Ib and 0.5%Ib, the meter should be metering in continuity.
Shunt running: when voltage circuit is enforced with 115% of reference voltage, without current, the meter light loss indication, meter output no impulse.
Life: 10 years.
2. Ambient condition
Normal working temperature: -30℃ ~+55℃;
Limit working temperature: -40℃ ~+70℃;
Stockpile and transportation temperature: -45℃ ~+70℃;
Relative humidity: annual average ≤80%.

 >> Structure :

    Related Items

 DDS3 Single Phase Meter                   DDSY39 Prepayment Meter                         DSS3 Prepayment Meter

    Why Choose Us

 >> Certifications :

 >> Package :

    Company View

    Contact Us

 We will be always at your service!

 >> FAQ :

1: What certifications do you get?

 A: We have ISO, CE, KEMA, SGS, etc.

2: Are OEM&ODM available?

A: Yes, we accept OEM and ODM.

3: When to get the price?

A: We usually quote within 24 hours after getting your inquiry.

if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

4: Is sample available and free?

A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

5. How to pay?

A: T/T and L/C are acceptable, and T/T will be more appreciated.

30% deposit before producing, 70% balance before loading by T/T.

6. What is the delivery time?

A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

7. What about the Package?

A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.

8.How to contact?

A: Send your inquiry details in the below, Click “send” now!

                                                                         ↓
