Home > Products > Outdoor Load break switch > FZW28F-12 Outdoor Vacuum Load Break Switch Pole Mounted Load Break Switch
FZW28F-12 Outdoor Vacuum Load Break Switch Pole Mounted Load Break Switch
- NingBo/ShangHai
- T/T
You May Like
-
FZW39 -27.5 Railway Vacuum Load Break Switch Sf6 Load Break Switch
-
FKW18-12/24/40.5 Outdoor High Voltage Load Isolation Switch
-
FZW38-12 Outdoor High Voltage Pole Mounted Load Break Switch
-
FLW34-12/24 Outdoor SF6 Load Break Switch Load Isolation Switch
-
FZW32 China Load Break Switch Vacuum Disconnect Switch
-
FZW38-12/24 Outdoor High Voltage Alternative Current Load Break Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HEAG | |
| Model Number | FZW28F-12 | Max. Current | 630A | |
| Max. Voltage | 12KV |
Product Description
Main Products
Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categories:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipment and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipment and LV electrical Apparatus.
Product Details
>> Summary :
FZW28F-12 outdoor vacuum load break switch is pole mounted handle and motor free maintenance switch, which adopt vacuum arc extinguish and SF6 insulation medium. It conforms with IEC6 2271-103 & GB/T3804: High voltage AC load break switch. This load break switch (switch and controller) have function of fault checking, protection and communication.

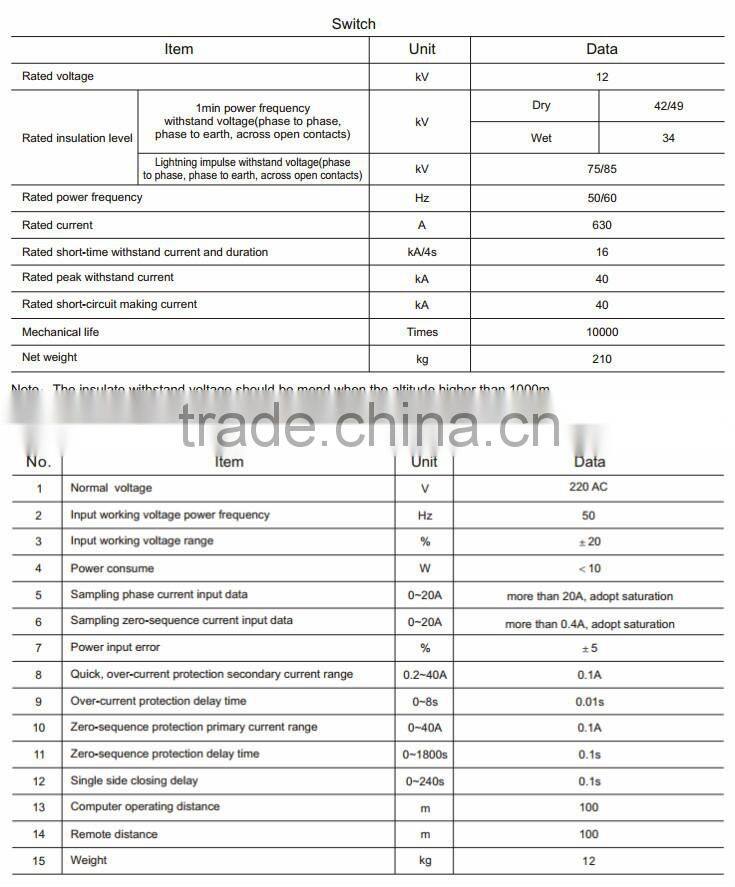

>> Technical Specification :
>> Structure :
