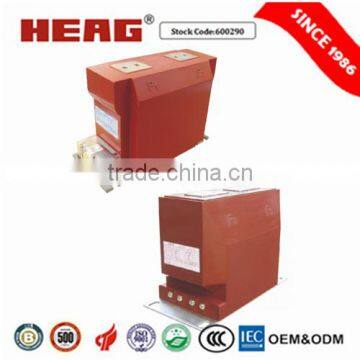

LZZBJ9-12 (A B C) Current Transformer

    Main Products

Huayi Electric Co., Ltd(HEAG) is one of leading manufacturers in China mainly for power distribution and transmission line, at present we mainly produce the following 7 categories:
1. Wind Energy Power Systems;
2. Outdoor Power Transmission and Distribution Systems till 252kV;
3. Indoor Metal-clad switchgear and control systems;
4. Medium voltage equipment and Accessories;
5. Intrument energy meters & Protection Relays;
6. Instrument Current Transformers & Potential Transformers;
7. Mining Electrical equipment and LV electrical Apparatus.

    Product Details

 >> Summary :

Current transformer LZZBJ9-12 is made indoor cast-resin insulated, totally enclosed structure, it's designed for current, power measurement and relay protection in AC power system with rated frequency 50/60 Hz, rated voltage 12kv and below.

The product has a leg type, totally-enclosed structure and its ring core, primary winding and secondary winding are casted resin insulated. Reinforced insulation makes it workable under humidity condensation and pollution II. Three wiring ways are for your choice.(A B C)

The outlet marks of the product are: primary P1 to P2, the secondary current from S1 to S2 through outside returncircuit. High voltage appears if secondary return circuit opens while primary current is flowing by.

 >> Technical Specification :

1. Altitude:  ≤ 1000m;

2. Ambient tempreture: -5 ℃~+40 ℃;

3. Relative humidity: less than 90%, at 20 ℃;

4. No gas, steam, chemical deposition, pollution, explosive gas or etching gas which way badly influence the insulation of the transformer;

5. No chattering of bumping.

 >> Structure :
