Product Details
Place of Origin | Zhejiang, China | Brand Name | QS/OEM | |
Model Number | RG11 | Type | Coaxial | |
Application | Multimedia | Color | Black, Other, Black, according to custmor | |
Packing | Carton Box | Connector Color | Other, silver | |
Connector Type | F | Shielding | Combination | |
Gender | Male-Female |
Product Description
Specifications
1.CE ISO RoHS SGS2.Quick Delivery
3.Stable High Quality
4.Competitive Price
We are OEM with rich experience we can supply all kinds of coaxial cable with good quality and competitive price .
Specifications

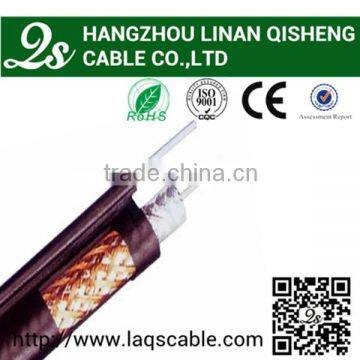

CATV RG11-M (RG11 with messenger) Coaxial cable
1-3GHz with low db loss For CATV systyem
3% price lower then others
Standard Specification :
1.63mm CCS + 7.11mm FPE + AL/ pet Foil bonded + 96*0.16mm Al Braiding( 60% coverage) +10.03mm PVC+1.83mm steel
Electrical Characteristics :
1) Characteristics Impedance: 75+/- 3 Ohms
2) Capacitance Conductor to Shield: 53.1 pF/m
3) Velocity of Propagation : 82%
4) Delay: 4.065 ns/m
5) Min.Structural Return Loss (5-3000MHz) : 20 dB
6) Max. Attenuation :
@ Frequency (MHz) | dB/100 ft (MAX.) | dB/100 meters(MAX) |
5 MHz | 0.38 dB | 1.25 dB |
55 MHz | 0.96 dB | 3.15 dB |
211 MHz | 1.90 dB | 6.23 dB |
250 MHz | 2.05 dB | 6.72 dB |
270 MHz | 2.13 dB | 7.00 dB |
300 MHz | 2.25 dB | 7.38 dB |
330 MHz | 2.35 dB | 7.71 dB |
350 MHz | 2.42 dB | 7.94 dB |
400 MHz | 2.60 dB | 8.53 dB |
450 MHz | 2.75 dB | 9.02 dB |
500 MHz | 2.90 dB | 9.51 dB |
550 MHz | 3.04 dB | 9.97 dB |
600 MHz | 3.18 dB | 10.43 dB |
750 MHz | 3.65 dB | 11.97 dB |
870 MHz | 4.06 dB | 13.31 dB |
1000 MHz | 4.35 dB | 14.27 dB |
Application :
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
Our company is engaged in cables making, our main products comprise all kinds of coaxial cable ,lan cable ,speaker cable, low voltage electric cable etc,with many years of rich experience in cable Industry ,our company is commited to meet the customer's individual request ,always with the "technical innovation ,strict management ,quality first service foremost "the concept of continuous innovation ,to build a global leader in the cable manufacturer's goal.
Entrance
Our Workshop
Packing Options:
--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.
--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,
--200m or 250m per Drum, two drums per carton,
--305m/Wooden Drum, one drum per outer carton or pallet loading,
--500m/Wooden Drum, one drum per outer carton or pallet loading,
--1000m or 3000m wooden drum, then pallet loading.
*We can also offer customized OEM packing according to clients' request
shipping
1. Quick Response --All inquiries on our products will be replied within 24 hours.
2. Professional Quotation --All pricing will be made on customers' detailed specifications & requirements.
3. OEM & ODM Service
--We can print your own brand on our cable printing with foot or meter marking.
--Make customized designs for stickers, drums, outer cartons, etc.
4. Stable Quality --All materials and products passed restrict QC procedures, compliant with international standards.
5. Fast Delivery --LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
6.Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients
Our products
we also have other products for you reference :
Coaxial Cable:
RG58,RG59, RG6, RG7,RG8, RG8X,RG11,RG213,RG214,RG174.
RG179,RG316, 17vatc, 19vatc, QR400, QR500, QR540, KX6, KX8,
CT100, CT125, CT165, BT3002, SAT602, SAT502,SAT703, 3C-2V,
5C-2V, 7C-2V,3D-2V, 5D-2V, 3D-FB, 5D-FB,7D-FB,8D-FB, 10D-FB etc.
*Lan Cable:CAT5, CAT5e UTP/FTP/SFTP, CAT6 UTP/FTP/SFTP, CAT6A, etc.
*Electric Wire
*Speaker Cable
*Control Cable
*Combined Cable
*Patch cord
