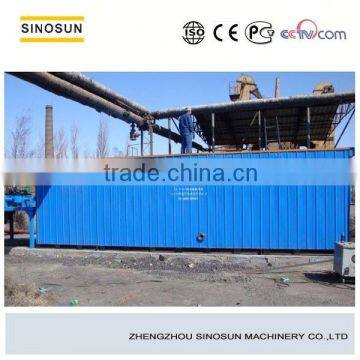

asphalt melting machine for sale
- qingdao port
- T/T
You May Like
-
Drummed asphalt melting machine
-
Asphalt drum melting plant with capacity of 10t/h
-
hot sale 10t/h asphalt melting machinery,energy saving asphalt machine
-
SINOSUN semi-mobile structure asphalt melting equipment on sale
-
environment friendly 10t/h bitumen melting equipment,drummed asphalt melter for hot sale
-
SINOSUN 6-8t/h energy saving drummed asphalt melting equipment
Product Details
| Place of Origin | Henan, China | Brand Name | SINOSUN | |
| Model Number | DT-2 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Asphalt melting machine features1. Energy saving
2. Fast heating
3. Easy to operate
4. Quickly to install and move.
A. Specification of the asphalt melting machine:
1. Protecting environment: closed-construction and no pollution.
2. Saving energy: which make fully use of hot gas (320-450°C) of Burner to melt and make asphalt coming out of drums (it is about150°C while waste gas was let off to air). The closed-construction saves 50% energy sources compared with the exposed one.
3. Taking asphalt out of drums thoroughly: the equipments use hot gas (320-450°C) of Burner to directly heat up the wall of drums, asphalt near the wall of drums can be rapidly melted, and then the whole asphalt in drum will discharge thoroughly.
4. Having the function of automatically removing residue with a residue filter.
5. Perfect applicability: it can be applicable to many types of drums.
6. Better dehydration: it uses asphalt pump with vast displacement to realize inner-cycle and sub-atmospheric dehydration of asphalt.
7. High reliability: the equipments introduce automatically control system and international-brand auto-ignite burner.
8. Easy to assemble and disassemble.
B.Asphalt melting machine technical specification
(1) Complete machine technical parameter
1 | Model | DT2 |
2 | Outer dimension(transport) | 6.35×2.2×2.56(L x W x H)(m) |
3 | Production rate:(t/h) | 2-4 (when the temperature is 20°C) |
4 | Suitable barrel shape | Barrel bitumen wit different model both home and abroad |
5 | Barrel quantity(barrel/trolley) | 18 |
6 | Bitumen oil pool capacity(M3) | 9 |
7 | Thermal oil furnace capacity(Kcal/h) | 300000 |
8 | Electric installed capacity(KW) | 19 |
9 | Complete machine weight(t) | 14 |
(2) Thermal oil furl heating furnace performance parameter
1 | Model | DRY30 |
2 | Rated heating capacity(KCAL/H) | 300000 |
3 | Max. service temperature(°C) | According to the process requirement, generally ≤250 |
4 | Design pressure(Mpa) | 1.0 |
5 | Electric power(Kw) | 16.5 |
6 | Total weight(t) | 6 |
7 | Outer dimension(L x W x H)(M) | 5.0x1.7x2.3 |
