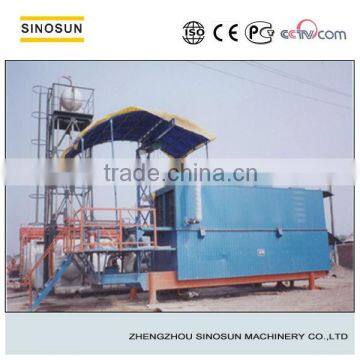

Asphalt decanting equipment/bitumen heating equipment
- Qingdao Port
- T/T
You May Like
-
asphalt melting machine for sale
-
Drummed asphalt melting machine
-
Asphalt drum melting plant with capacity of 10t/h
-
hot sale 10t/h asphalt melting machinery,energy saving asphalt machine
-
SINOSUN semi-mobile structure asphalt melting equipment on sale
-
environment friendly 10t/h bitumen melting equipment,drummed asphalt melter for hot sale
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | SINOSUN | Model Number | DT8 | |
| Voltage | 220V/380V | Power(W) | 57kw | |
| Dimension(L*W*H) | 11.5x2.25x2.7m | Weight | 24t | |
| Certification | CE, ISO, GOST | Warranty | 12 months after erection | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Asphalt decanting equipment DT8apacity: 8-10t/h
complete weith(without thermal oil system):18t
Power(main machine): 32kw
The function and features of asphalt decanting equipment:
1. This equipment utilizes oil furnace chimney exhausts heat directly heat the barrel, thus can utilize the heat to the maximum degree.
2. This equipment has bitumen circulatory system, the bitumen can realize dehydration at the same time of warming.
3. This equipment has automatically scarfing cinder system, the sediment automatically focus to one end during bitumen circulation, indraft to sediment tank with the help of bitumen pump.
4. Bitumen level meter adopts float level meter, which is display all the process, simple and convenient.
5. Electrical equipment adopts centralized control, has button and indicator for each electronic control part.
6. Main engine is semi-mobile structure, easy to remove, fast to install. Planetary containerized for easy road transport.
Asphalt decanting equipment technical specification
(1) Complete machine technical parameter
1 | Model | DT8 |
2 | Outer dimension(transport) | 11.8x2.25x2.7(LxWxH)m |
3 | Production rate:(t/h) | 8-10(when the temperature is 20°C) |
4 | Suitable barrel shape | Barrel bitumen wit different model both home and abroad |
5 | Barrel quantity(barrel/trolley) | 44 |
6 | Bitumen oil pool capacity(M3) | 18 |
7 | Thermal oil furnace capacity(Kcal/h) | 100X10000 |
8 | Electric installed capacity(KW) | 32 |
9 | Complete machine weight(t) | 18 |
(2)Thermal oil fuel heating furnace performance parameter
1 | Model | DRY100 |
2 | Rated heating capacity(KCAL/H) | 100x10000 |
3 | Max. service temperature(°C) | According to the process requirement, generally ≤250 |
4 | Design pressure(Mpa) | 1.0 |
5 | Electric power(Kw) | 25 |
6 | Total weight(t) | 6 |
7 | Outer dimension(L x W x H)(M) | 5.5x1.7x2.3 |
