Supplier for galvanized water tank mold process

ISO certificate

BV certificate

Application:

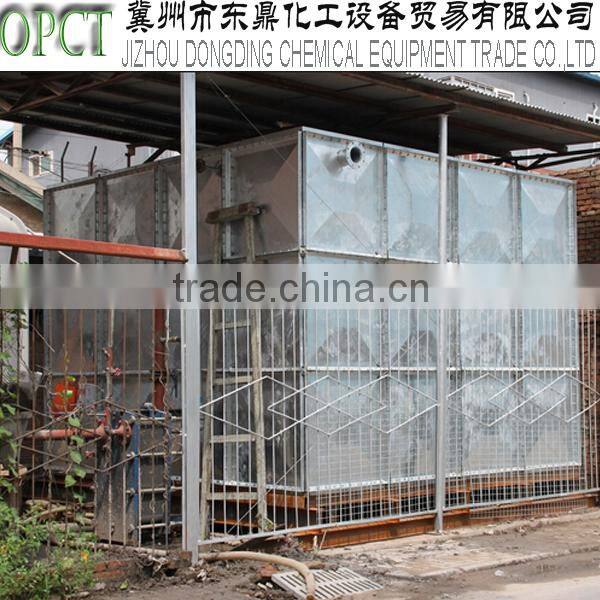

This water tank is widely used in storage and regulation of living water supply & construction water supply, and temporary water storage tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc.

Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water treatment, medicine, petroleum, chemical and so on. Taking flexible, reasonable plate design, suitable for all sizes combined water tank.

Suitable for living water with PH value:6.5-8.5, using life:≥20 years

Installation Instructions:

1.Water tank foundation requires the geometry dimensions of concrete foundation should follow relative stipulations of GB02S101 to be made. The height tolerance of the concrete foundation flat is <5mm;
2.Water Tank Installation:

Construction and Acceptance: professional welders weld by argon arc welding at site;

With standard power in construction field;

Around the water tank , there are intervals ≥500mm for inspection;

visual inspection: no rust, no pollution; cabinet without obvious deformation, weld without leakage;

Meet all above mentioned conditions is qualified.

3.Water Tank Usage, repair and maintenance:

When match the pipe, please don’t put excessive pressure on both inlet and outlet of the pipe;

Don’t put the weight of valve and large diameter pipe on the tank outlet. If necessary, please set pipe support or lifting support;

For the expansion, contraction and vibration the welded pipe , ,please must install stretched flexible connectors;

4.Water tank allocation and accessories:

The supplying scope of our water tank mainly includes: cabinet, maintenance hole with lock, ladder, short pipe and single flange.

Our company can also provide matching accessories according to customer’s  requirement, such as floating ball valve, glass tube level gauge and all kinds of water tank disinfection equipment and so on.
