Home > Products > Industrial fabrics > Tri-axial Fiberglass Fabrics of 1200 gsm for FRP Pipe (45, -45, 90 degree) for Wind Turbine Blade Manufacture (GL certificated)

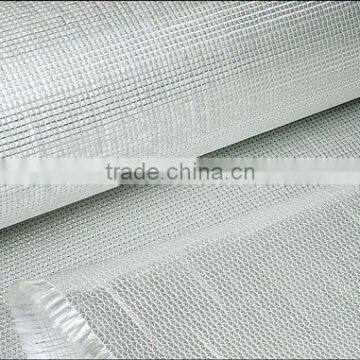

Tri-axial Fiberglass Fabrics of 1200 gsm for FRP Pipe (45, -45, 90 degree) for Wind Turbine Blade Manufacture (GL certificated)
- 6 Ton / Tons per Month
- SHANGHAI CHINA
- T/T
You May Like
-
Tri-axial Warp-Knitted Fiberglass Fabrics of 750 gsm (GL certificated)
-
Double Bias Warp-knitted 450 Fiberglass Fabrics (0 degree, 90 degree) (GL certificated)
-
Double Bias 600 Fiberglass Fabrics (0 degree, 90 degree) (GL certificated)
-
Double Bias Fiberglass Fabrics of 900 gsm (0 degree, 90 degree) (GL certificated) for wind turbine blade manufacture
-
750gsm Multi-axial Fiberglass Fabrics for General Construction Reinforcement (45, -45, 90 degree) (GL certificated)
-
900gsm Kitted Multi-axial Fiberglass Fabrics (0 degree, 45 degree, -45 degree, 90 degree) (GL certificated)
Product Details
| Place of Origin | Jiangsu, China | Brand Name | ding | |
| Model Number | ETW 1200 | Application | Wall/Roof covering Cloth | |
| Weight | 1200g per square meter | Width | 127cm (normal width), mainly according to clients' requirements | |
| Weave Type | Plain Woven | Yarn Type | E-Glass | |
| Alkali Content | Alkali Free |
Product Description
Specifications
Biaxial and Multiaxial Fabrics: consist of two or more layers fiberglass at different orientations with mats stitched on fabrics
1. Products Specifications
Biaxial and Multiaxial Fabric
Style | Mass (g/m2) | Mass (oz/yd2) | Roll length (m) | Width (cm) | Roll Weight (kg) | Resin Compatibility |
EB450(0/90) | 450 | 13.3 | 87 | 127 | 50 | UP or Epoxy Resin |
EB600(0/90) | 600 | 17.7 | 65 | 127 | 50 | UP or Epoxy Resin |
EB900(0/90) | 900 | 26.6 | 35 | 127 | 50 | UP or Epoxy Resin |
EU400(45/-45) | 400 | 11.8 | 98 | 127 | 50 | UP or Epoxy Resin |
EU800(45/-45) | 800 | 23.6 | 49 | 127 | 50 | UP or Epoxy Resin |
ETW750(45/-45/90) | 750 | 22.1 | 52 | 127 | 50 | UP or Epoxy Resin |
ETW1200(45/-45/90) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
ETL800(0/45/-45) | 800 | 23.6 | 49 | 127 | 50 | UP or Epoxy Resin |
ETL1200(0/45/-45) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
EMU900(0/45/-45/90) | 900 | 26.5 | 44 | 127 | 50 | UP or Epoxy Resin |
EMU1200(0/45/-45/90) | 1200 | 35.4 | 33 | 127 | 50 | UP or Epoxy Resin |
Used in: boats, wind power, basic facilities, sports apparatus, as well as the general industries,
the fabrics also can be stitched with mats according to clients' requirements.
2. Applications
