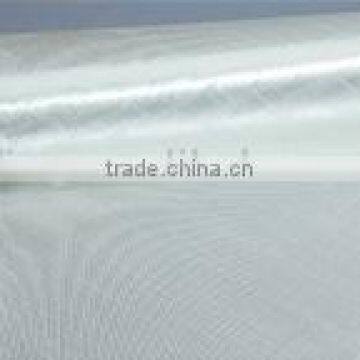

Biaxial Fabric and Multiaxial Fabric
You May Like
Product Details
| Supply Type | Make-to-Order | Pattern | Other | |
| Style | Other | Place of Origin | Jiangsu, China | |
| Brand Name | Ding |
Product Description
Specifications
biaxial and multiaxial fabric have excellent designable Character and great combination character with mat.
Biaxial and multiaxial fabric consists of two or more layers roving fiberglass at different orientations (0, 90, +45, -45), which are stitched together by fine polymer yarn. Standard configurations include biaxial (0,90), (+45,-45), traxial(0,+45,-45) or (90, +45, -45) and multiaxial (0,90,+45,-45).
Because of its excellent designable ability and great combination character with mat perfectly, it is omnipotent with any complex FRP/Composites products needing reinforcement. For instance, wind turbine blade,shipbuilding industry, auto industry, sports apparatus, medical apparatus, the furniture, etc.
SPECIFICATION:
| STYLE | MASS | MASS | LENGTH | WIDTHcm | WEIGHT | RESIN COMPATIBILITY |
EB450 (0/90) | 450 | 13.3 | 110 | 100 | 49.5 | UP or Epoxy resin |
EB600(0/90) | 600 | 17.7 | 80 | 100 | 48.0 | UP or Epoxy resin |
EB700(0/90) | 700 | 20.6 | 70 | 100 | 49.0 | UP or Epoxy resin |
EB800(0/90) | 800 | 23.6 | 60 | 100 | 48.0 | UP or Epoxy resin |
EB950(0/90) | 950 | 26.5 | 50 | 100 | 47.5 | UP or Epoxy resin |
EB1000(0/90) | 1000 | 29.5 | 50 | 100 | 50.0 | UP or Epoxy resin |
EB1200(0/90) | 1200 | 35.4 | 40 | 100 | 48 | UP or Epoxy resin |
EU400(45/-45) | 400 | 11.8 | 100 | 127 | 50.8 | UP or Epoxy resin |
EU600(45/-45) | 600 | 17.7 | 65 | 127 | 49.5 | UP or Epoxy resin |
ETW750(45/-45/90) | 750 | 22.1 | 50 | 127 | 47.6 | UP or Epoxy resin |
ETL800(0/45/-45) | 800 | 23.6 | 50 | 127 | 50.8 | UP or Epoxy resin |
EMU900(0/45/90/-45) | 900 | 26.5 | 50 | 127 | 57.2 | UP or Epoxy resin |
NOTE
Normally the width is 127cm,it can be cut to any width according to the customers requirements. We can also combinate the chopped strand mat.
PACKING:
Each roll covered by polyethylene plastic bag,then placed into cardboard box. Cardboard box size: 1000mm×260mm×260mm,also can be set on pallet, Each pallet vertical stack 16 cardboard boxes which sizing: 1120mm×1120mm×1150mm.
STORAGE:
Product shall be placed under dryness condition and shall not be opened the covering membrane until applying.
