FRP Structural Profiles

Specifications

Our FRP products are produced through pultrusion process by curing thermosetting resins enhanced with glassfiber reinforcement.Main products include round tube,square tube,rectangular tube,pultruded grating,flooring,channel,angle,plate,rod etc.

Features:

1. High Strength
2. Light Weight
3. Corrosion Resistance
4. Electrically & Thermally Insulation
5. Flame Retardance
6. Non-Magnetism
7. Good Tactility & Nice Appearance
8. Easy Assembly (No Welding)
9. Low Maintenance & Long Service Life

Specifications:

Round tube:Φ19*14,Φ25.4*20.5,Φ25.4*18.4,Φ28*24,Φ31*25,Φ32*27.5, Φ32*26, Φ32*22, Φ33.7*27.7, Φ39*34, Φ45*35, Φ50*42, Φ75*67, Φ110*90

Square tube: 25.4*25.4*2, 25.4*25.4*3.2, 38*38*4, 41.4*41.4*4.2,50*50*4, 50*50*5, 50*50*6, 50.8*50.8*6.35, 62.2*62.2*6.4,63.5*63.5*6.35, 75*75*6, 76.2*76.2*6.35, 80*80*6, 100*100*8,120*120*5, 120*120*8, 150*150*8

Rectangular tube:38.1*25.4*2,42*20*2,48.8*23*3,70*26*3,80*50*5,117.5*92.1*4.8,150*100*8,190.5*101.6*9.5,228*152*6

Channel:50*30*5,52*30*5,57*60*3,60*50*5,70*26*4*3,79*28.5*3,84*30*5.5,100*35*5,

100*50*6,101.6*35*4.8,150*50*6,150*40*10,152.4*42*6.35,152.4*42*9.5,200*50*10,203.2*56*9.5,250*70*12

Angle:40*40*4,50*50*5,75*75*6,76.2*76.2*6.4,76.2*76.2*8

Rod: Φ4, Φ5, Φ7.9, Φ10, Φ12.7, Φ14, Φ18, Φ19, Φ22, Φ23.7, Φ25, Φ28, Φ30, Φ32

I shaped beam:25*15*15*4,25*15*40*4,38*15*15*4,50.8*15*25.4*4,50.8*50.8*50.8*4.2,

58*15*15*5,76.2*76.2*76.2*6.35,101.6*50.8*50.8*6.35,152.4*76.2*76.2*6.35,200*100*100*10

Plate:12.7*3,12.7*6.35,40*4,50*8,64*6.4,64*9,76*9

Photos:

Application of structural profiles

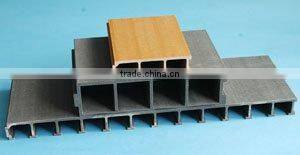

Flooring panel

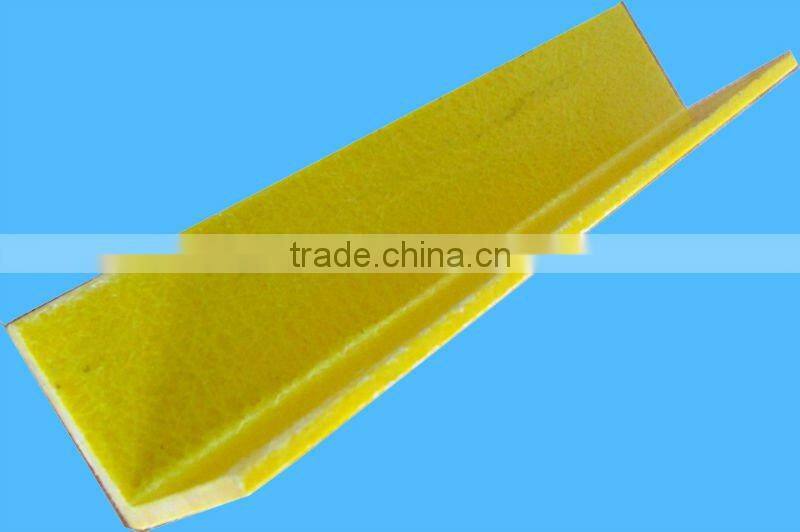

angle
