Home > Products > New Products > 5 In. Bore 10 In. Stroke Tie Rod Hydraulic Cylinder Catalogue
5 In. Bore 10 In. Stroke Tie Rod Hydraulic Cylinder Catalogue
US$ 20 - 50
/ Piece
1 Piece(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
| Power | Hydraulic | Body Material | Steel | |
| Maximum Stroke | 10" | Shaft Diameter | 5" | |
| Place of Origin | Shandong, China | Model Number | 5010 | |
| Brand Name | Salid |
Product Description
5 In. bore 10 In. stroke Tie Rod Hydraulic Cylinder catalogue
Product Description

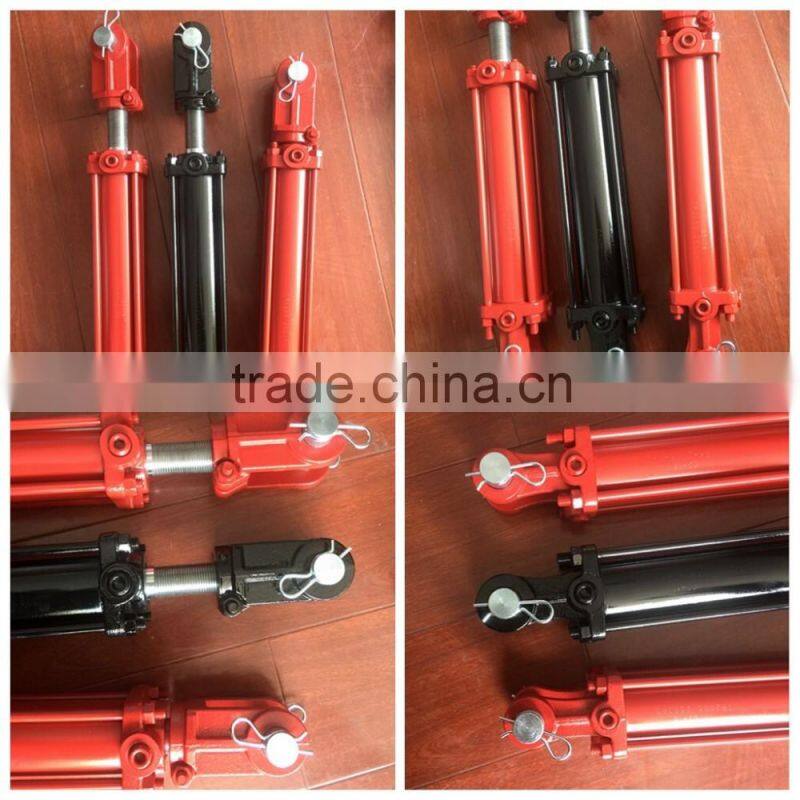

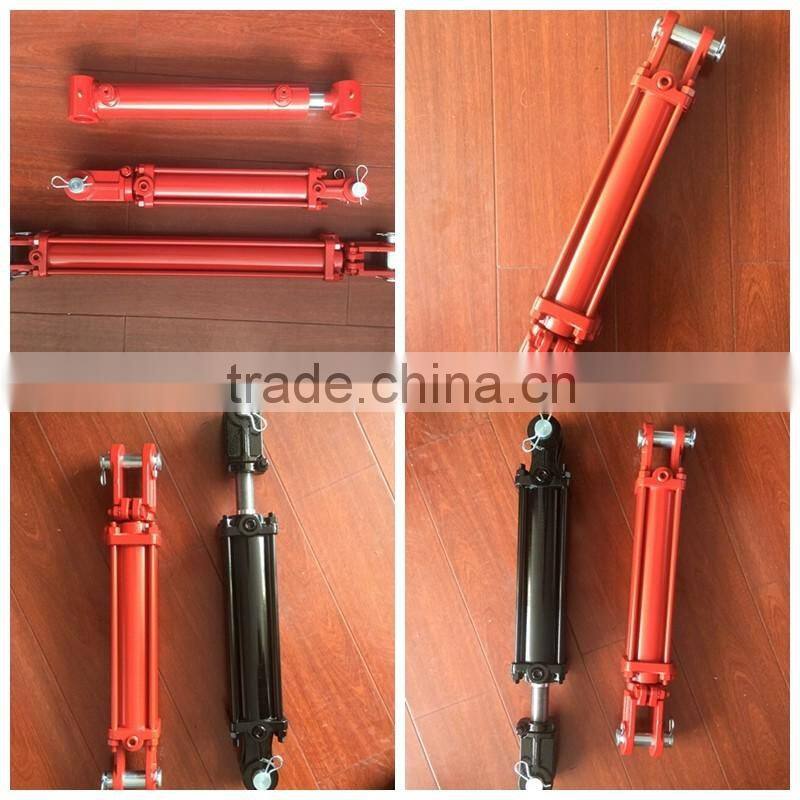

5010 tie rod clevis hydraulic cylinders
double acting cylinders
| SPECIFICATION | |||||||
| 1. Pin Clip | High tensile zinc-plated steel | ||||||
| 2. Pin | High tensile zinc-plated steel | ||||||
| 3. Port Plug | Plastic | ||||||
| 4. Piston Nut | Lock nut,grade 8, high tensile zinc-plated | ||||||
| 5. Tie Rod | ASTM 5140, high tensile, rolled threads for durability | ||||||
| 6. Tube | High tensile cold drawn tube, precision honed for extended seal life | ||||||
| 7. Rod | High tensile SAE C1045, ground & olished hard chrome plated rod | ||||||
| 8. Tie rod nut | Grade 8 | ||||||
| 9. Female Rod Clevis | Ductile iron ASTM A536 65-45-12 | ||||||
| 10. Clevis ClampBolt | Grade 8.8 | ||||||
| 11. Clevis Clamp Nut | Grade 8 | ||||||
| 12. Gland | Ductile iron ASTM A536 65-45-12 | ||||||
| 13. Piston | Ductile iron ASTM A536 65-45-12 for excellent life | ||||||
| 14. Port Plug(Sealed) | Steel w/Teflon tape | ||||||
| 15. Cap | Ductile iron ASTM A536 65-45-12 | ||||||
| A. Wiper | Polyurethane | ||||||
| B. Rod seal | Std PolyPak with B lip design (Polyurethane U-cup with nitrile O-ring expander) | ||||||
| C. Tube seal | O-ring | ||||||
| D. Piston ID Seal | O-ring | ||||||
| E. Piston OD seal | Bronze impregnated PTFE piston ring w/rectangular CS nitile expander | ||||||
NON ASAE
All SALID hydraulic NON ASAE cylinders are designed per ASAE requirements, however are not classified ASAE due to their varying pin to pin dimensions.
A*: 12.50" for 8" stroke ASAE cylinders and 15.50" for 16" stroke ASAE cylinders;
C*: (PORT): NPTF is standard and SAE port is available;
R*(Pin diameter): 1.25" for 16" stroke ASAE cylinder form 3.0" to 5" bore.
ASAE
All SALID hydraulic cylinders (TR, CW, BW)meet ASAE(American Society of Agricultural Engineers) specifications. These specifications establish common mounting i.e.(pin to pin dimensions) and clearance dimensions i.e.(clevis cap/rod clevis throat width and pin diameters) for cylinders and trailing-type agricultural implements. This criteria is only applicable to 8" and 16" stroke cylinders.
ASAE CYLINDER "TR SERIES"
| SALID3504TR | 3 1/2 X 4 | 1 1/4 | 14 1/4 | 18 1/4 | Full PSI | 24053 | 24 |
| SALID3506TR | 3 1/2 X 6 | 1 1/4 | 16 1/4 | 22 1/4 | Full PSI | 24053 | 25.9 |
| SALID3508TR | 3 1/2 X 8 | 1 1/4 | 18 1/4 | 26 1/4 | Full PSI | 24053 | 27.8 |
| SALID3510TR | 3 1/2 X 10 | 1 1/4 | 20 1/4 | 30 1/4 | Full PSI | 24053 | 30 |
| SALID3512TR | 3 1/2 X 12 | 1 1/4 | 22 1/4 | 34 1/4 | Full PSI | 24053 | 33 |
| SALID3514TR | 3 1/2 X 14 | 1 1/4 | 24 1/4 | 38 1/4 | Full PSI | 24053 | 34.9 |
| SALID3516TR | 3 1/2 X 16 | 1 1/4 | 26 1/4 | 42 1/4 | *2060 | 19840 | 35.9 |
| SALID3518TR | 3 1/2 X 18 | 1 1/4 | 26 1/4 | 46 1/4 | *1719 | 16539 | 39.9 |
| SALID3520TR | 3 1/2 X 20 | 1 1/4 | 30 1/4 | 50 1/4 | *1458 | 14028 | 41.9 |
| SALID3524TR | 3 1/2 X 24 | 1 1/2 | 34 1/4 | 58 1/4 | *2250 | 21645 | 50.9 |
| SALID3530TR | 3 1/2 X 30 | 1 1/2 | 40 1/4 | 70 1/4 | *1545 | 14880 | 60.9 |
| SALID3536TR | 3 1/2 X 36 | 1 1/2 | 46 1/4 | 82 1/4 | *1125 | 10850 | 68.9 |
| SALID4004TR | 4 X 4 | 1 1/4 | 14 1/4 | 18 1/4 | Full PSI | 31416 | 30 |
| SALID4006TR | 4 X 6 | 1 1/4 | 16 1/4 | 22 1/4 | Full PSI | 31416 | 32 |
| SALID4008TR | 4 X 8 | 1 1/4 | 18 1/4 | 26 1/4 | Full PSI | 31416 | 35 |
| SALID4010TR | 4 X 10 | 1 1/4 | 20 1/4 | 30 1/4 | Full PSI | 31416 | 37.9 |
| SALID4012TR | 4 X 12 | 1 1/4 | 22 1/4 | 34 1/4 | *2400 | 30195 | 40.9 |
| SALID4014TR | 4 X 14 | 1 1/4 | 24 1/4 | 38 1/4 | *1925 | 24210 | 42.9 |
| SALID4016TR | 4 X 16 | 1 1/4 | 26 1/4 | 42 1/4 | *1580 | 19840 | 44.9 |
| SALID4018TR | 4 X 18 | 1 1/2 | 28 1/4 | 46 1/4 | Full PSI | 31416 | 48.9 |
| SALID4020TR | 4 X 20 | 1 1/2 | 30 1/4 | 50 1/4 | *2315 | 29085 | 52.9 |
| SALID4024TR-150 | 4 X 24 | 1 1/2 | 34 1/4 | 58 1/4 | *1720 | 21645 | 60.9 |
| SALID4024TR-175 | 4 X 24 | 1 3/4 | 34 1/4 | 58 1/4 | Full PSI | 31416 | 62.9 |
| SALID4024TR-200 | 4 X 24 | 2 | 34 1/4 | 58 1/4 | Full PSI | 31416 | 65 |
| SALID4030TR | 4 X 30 | 2 | 40 1/4 | 70 1/4 | Full PSI | 31416 | 86.8 |
| SALID4036TR | 4 X 36 | 2 | 46 1/4 | 82 1/4 | Full PSI | 31416 | 108 |
| SALID4048TR | 4 X 48 | 2 | 58 1/4 | 106 1/4 | *1635 | 20560 | 150 |
| SALID5008TR | 5 X 8 | 1 1/2 | 18 1/4 | 26 1/4 | Full PSI | 49088 | 73.3 |
| SALID5010TR-150 | 5 X 10 | 1 1/2 | 20 1/4 | 30 1/4 | Full PSI | 49088 | 77 |
| SALID5010TR-200 | 5 X 10 | 2 | 20 1/4 | 30 1/4 | Full PSI | 49088 | 78.5 |
| SALID5012TR | 5 X 12 | 2 | 22 1/4 | 34 1/4 | Full PSI | 49088 | 82.5 |
| SALID5014TR | 5 X 14 | 2 | 24 1/4 | 38 1/4 | Full PSI | 49088 | 89.1 |
| SALID5016TR | 5 X 16 | 2 | 26 1/4 | 42 1/4 | Full PSI | 49088 | 95.7 |
| SALID5018TR | 5 X 18 | 2 | 28 1/4 | 46 1/4 | Full PSI | 49088 | 102.3 |
| SALID5020TR | 5 X 20 | 2 | 30 1/4 | 50 1/4 | Full PSI | 49088 | 107.8 |
| SALID5024TR | 5 X 24 | 2 | 34 1/4 | 58 1/4 | Full PSI | 49088 | 117.7 |
| SALID5030TR | 5 X 30 | 2 | 40 1/4 | 70 1/4 | *2265 | 44470 | 136.4 |
| SALID5036TR | 5 X 36 | 2 | 46 1/4 | 82 1/4 | *1665 | 32700 | 155.1 |
| Note: Indicates cylinder strength is affected.*cylinder Column Load - Column strength loading normally affects all types of longer stroke cylinders. Affected cylinder should not be operated beyond these limits as the SALIDlinder rod may buckle or bend causing failure. Stroke limitation applies to compressive loading only. Applications that fall outside the noted parameters, contact SALID Machinery directly for further assistance. | |||||||
Company Information
We can make as your drawing or sample.
