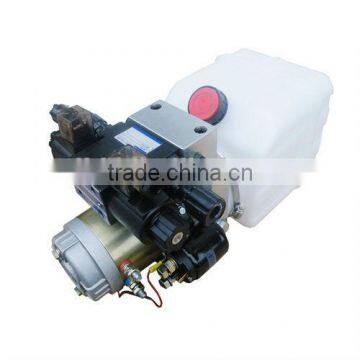

12VDC POWERUNIT COMPLETE WITH 2 STATION DOUBLE ACTING CETOP 3 VALVES .

•  To operate  2 double acting cylinders on any type of hydraulic application.
• 1.7 cc/rev gear pump.
• 12Vdc electric motor.
• 7 or 10  Litre black sprayed horizontal steel reservoir c/w drain plug.
• Reservoir c/w suction strainer, return oil conveyor and filler breather and level indicator.
• Horizontally mounted Max pressure 175 bar.
• Max flow 5 l/min.
• Complete with main relief valve.
• Fitted with 2 station manifold complete with 12Vdc double acting cetop 3 valves.
• 4  Button pendent on a 4 metre lead . complete with plug

1.Stable quality in harsh environment

2.Small order

3.Competetive price

4.Customization according to oil circuit

NOTES:

1. Hydraulic power units can only be worked intermittently

2.Clean all the hydraulic parts concerned before mounting the power unit

3. Viscosity of the oil shoud be 15~68 cst, and the oil should be clean and free of impurities, N46 hydraulic oil is recommended

4. Check the oil level in the tank after the initial running of the power unit.

5. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.
