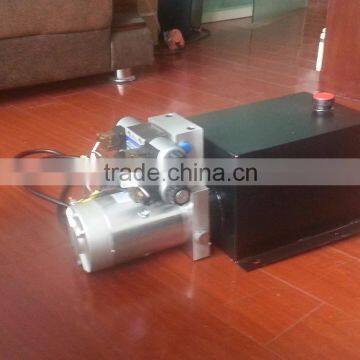

12V DC double acting double solenoid hydraulic power units for barriers

FOB Price

USD $100 - $500 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Hydraulic Power Units		Model Number	GD-HPU12V
Brand Name	SALID		Place of Origin	Shandong, China

Product Description

12VDC power unit.
2.1cc/rev gear pump.
1.6kw 12VDC electric motor c/w relay and plastic
motor cover.
4.5 Litre or 8.0 Litre reservoir c/w drain plug.
Powerpack complete with suction strainer, return oil conveyor and filler breather.
Horizontal mounting.
Max pressure 200 bar.
Relief valve set at 160 bar but adjustable from 40-200 bar as standard.
Max flow 5 l/min.
Relief valve and P line check.
Port size 3/8" BSP.
4 Button pendant on a 4 metre lead.
Suitable for all double acting applications.

NOTES:

1. Hydraulic power units can only be worked intermittently

2.Clean all the hydraulic parts concerned before mounting the power unit

3. Viscosity of the oil shoud be 15~68 cst, and the oil should be clean and free of impurities, N46 hydraulic oil is recommended

4. Check the oil level in the tank after the initial running of the power unit.

5. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.

Qingdao Salid Machinery CO.,LTD.
Product
tie rod hydraulic cylinder, welded hydraulic cylinder, telescopic cylinders cylinder, flange type hydraulic cylinder, hydraulic cylinder with valve function, hydraulic power unit, Hydraulic manifold block, pneumatic fitting,
Material	Tube — Cold Drawn Precision seamless Tubing End Caps — Steel, threaded fixed; Wear Ring — Nylon Backup Washer Rod Seals — Polyurethane U-Cap Rod — Chromed, ground & polished piston rod Mounts — Trunnion with angular Swivels Rod Wiper — Polyurethane
Application	Agriculture, Concrete & Asphalt, Cranes, Fire & Rescue, Forestry & Logging,Mining & Rock Crushing,Oil & Gas, Snow & Ice Control,Waste Management and Material Recycling Industry , Engineering Equipment, Special Vehicle
Feature	1.High quality with a reasonable price 2.ISO9001-2008 3.Customized specification are accepted
Payment	T/T;L/C,WESTERN UNION.
Port	Qingdao ,China
Quotation	According to the specific request
MOQ	According to the product
Packaging	metal case;plywood case;carton or as requirement
Delivery time	30days upon receipt of 30% deposit; or upon receipt of relevant L/C;

CONTACT:

Emma Hong

Qingdao Salid Machinery Co., Ltd.

Tel:+86-532-87659877

FAX:+86-532-81157731

MOBILE:+86-15966829490

SKYPE: emmahong199110

Please feel free to contact me at any time.
