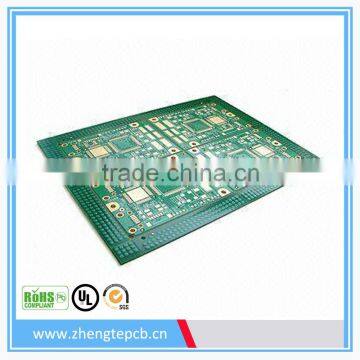

Pcb product manufacturer driver board Sell Good Price circuit board manufacturer
- 50000 Square Foot / Square Feet per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Driver board Quality Quotes pcb production circuit board manufacturer
-
Professional OEM PCB Board Manufacturer,Multilayers/thick copper PCB Manufacturer
-
multilayer PCB with immersion gold TS 16949&UL certificates
-
Lead free printed circuit board PCB
-
The lowest price double-sided pcb sample and pcb prototype
-
Good quality led electronic PCB Manufacturer for customized electronic led PCBA
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM ODM | |
| Model Number | ZT-B106-4L | Number of Layers | 4-Layer | |
| Base Material | FR-4 | Copper Thickness | 2 OZ | |
| Board Thickness | 1.6mm | Min. Hole Size | 0.2mm-6.3mm | |
| Min. Line Width | 0.076mm | Min. Line Spacing | Min. Line Spacing: 3mil (0.075mm) | |
| Surface Finishing | HASL,Immersion Gold,Immersion Silver,Immersion Tin,OSP... |
Product Description
Pcb product manufacturer driver board Sell Good Price circuit board manufacturer
Item | Capability | |
1.Base Material | FR-4 / High TG FR-4 / Lead free Materials (ROHS Compliant) / Halogen Free material /CEM-3/CEM-1/ /PTFE/ROGERS/ARLON/TACONIC | |
2.Layers | 1-18 | |
3.Finised inner/outer copper thickness | 1-6OZ | |
4.Finished board thickness | 0.2-7.0mm | |
Tolerance | Board thickness≤1.0mm: +/-0.1mm 1<Board thickness≤2.0mm: +/-10% Board thickness>2.0mm: +/-8% | |
5.Max panel size | ≤2sidesPCB: 600*1500mm Multilayer PCB: 500*1200mm | |
6.Min conductor line width/spacing | Inner layers: ≥3/3mil Outer layers: ≥3.5/3.5mil | |
7.Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm | |
Drilling precision: first drilling | First drilling: 1mil Second drilling: 4mil | |
8.Warpage | Board thickness≤0.79mm: β≤1.0% 0.80≤Board thickness≤2.4mm: β≤0.7% Board thickness≥2.5mm: β≤0.5% | |
9.Controlled Impedance | +/-5% | |
10. Aspect Ratio | 15:1 | |
11.Min welding ring | 4mil | |
12.Min solder mask bridge | ≥0.08mm | |
13.Plugging vias capability | 0.2-0.8mm | |
14. Hole tolerance | PTH: +/-3mil NPTH: +/-2mil | |
15.Outline profile | Rout/ V-cut/ Bridge/ Stamp hole | |
16.Surface finished | OSP: 0.5-0.5um HASL: 2-40um Lead free HASL: 2-40um ENIG: Au 1-10U’’ ENEPIG: PB 2-5U’’/ Au 1-8U’’ Immersion Tin:0.8-1.2um Immersion silver: 0.1-1.2um Peelable blue mask Carbon ink Gold plating: Au 1-150U’’ | |
17. E-testing pass percent | 97% pass for the first time,+/-2%(tolerance) | |
FQC-Physical Lab: Reliability tests | ||
18. Certificate | ROHS UL:E327776 ISO9001:2008 IPC SGS | |
Sample exhibition
Application
Widely used in consumer electronic products, electrical appliances, small household electrical appliances, communication products, automotive, medical equipment and other fields (such as mobile phone, telephone, LED lighting equipment, TV, DVD, computer products and peripherals, game consoles, charger, power adapter, remote control and home appliances).
Details
1. Related Certificate --- UL ,ISO9001:2000 , TS16949, RoHS.
2. 100% electrical test, AOI testing, four times 100% QC inspection beofre shipping.
3. High reliable, Germany equipment ,competitive price andSpeedy delivery.
4. Fast Prototype Service.
5. One stop electronic assembly service(provide prototype, plastic injection molding, part painting,
components purchasing, SMT COB,DIP,PCBA service as one unit).
PCB package way : Vacuum package + desiccant bag
Delivery
Advantage
1.Fast PCB Fabrication for Samples and Mass Production
2.Electronic Components Sourcing Services
3.PCBA Assembly Services:SMT,DIP,BGA...
4.Function Test
5.Stencil and Enclosure Assembly
6.Standard Packing and On time Delivery
