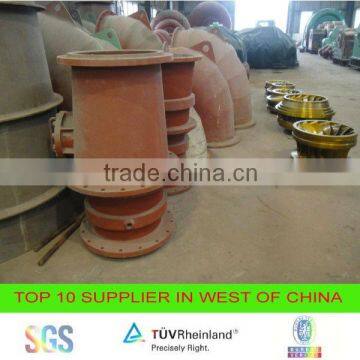

water turbine parts

Hongya Power Generating Equipment to Utilities Limited (HPGE for short)is professional manufacturer of hydro power turbine from 50KW to 20MW. Hydro turbines manufactured by HPGE are of different types, with high efficiency, reliable quality, and they enjoy good reputation in both domestic and overseas market.

Oversea project

    we have exported water turbine generator sets to

            Vietnam——April,2007(2*3200KW)

            Peru——November,2007(2*1250KW)

            Burma——December,2008(2*400KW)

            Burma——November,2009(2*200KW)

            Albania——July,2011(2*1250KW,1*630KW,2*400KW)

            Indonensia----August,2012(1X4400KW)

            Satie plant in the republic of Burundi (3X3200KW)

            state power corporation of republic of peru (2X1250KW)

            Bane plant in Tailand (2X2500KW)

            Easup3 plant in Daklak province, Vietnam (2X2300KW)

For Francis turbine, You can find the general specification as below.

1. A type of hydropower reaction turbine.

2. Runner blades typically 9 to 19 in number, which cannot be adjusted.

3. Runner Diameter 0.35m to 4m.

4. The applicable design head is 2m to 800m,.

5. Unit capacity 50KW to 12 MW.

6. Specific speed 50 to 300 rpm.

7. Efficiency 85% to 95%.

8. Life span 30 to 50 years.

For Turgo turbine, You can find the general specification as below.

1.A type of impulse turbine, similar to pelton turbine but can handle higher flow rates.

2. Applicable net head 40m-300m.

3. Unit capacity 50KW to 20MW.

4. Efficiency 85% to 95%.

5. Life span 30 to 50 years.

For Pelton turbine, You can find the general specification as below.

1. Also called a free-jet turbine or Pelton wheel, a type of impulse turbine.

2. Suited to high head, low flow applications.

3. Can contain up to 6 nozzles.

4. Applicable net head 50m to 1000m.

5. Efficiency 85% to 95%.

6. Life span 30 to 50 years.

For Kaplan turbine, You can find the general specification as below.

1. A propeller-type of water turbine, evolution of the Francis turbine with adjustable blades, widely used throughout the world in high-flow, low head power production.

2. Head ranges from 2m to 40m.

3. Runner diameters from 2m to 8m.

4.Turbine range from 79rpm to 429rpm.

Power plant senery:

Gnerator:

How to inquire our product?

1. please send us the detailed parameters of the HPP

    A   Water head-----     m

    B   Flow------            m³/s

    C   Installed capacity---     KW

    D   Frequency----     50HZ or 60HZ

    E   Generator excitation--   static SCR excitation or brushless excitation

Those parameters will decide which type of turbine and generator best satisfy your water condition.

2. Tell us your requirements of the water turbine generator unit.

   A   Does special material required for the equipments?

   B   Does the unit controlled manually or by computer?

   C   What should be quoted in the proposal?

         Mechanical and Electrical part? Swithyard?

If you have any questions, pls. feel free to contact us! We promise you a professional service!
