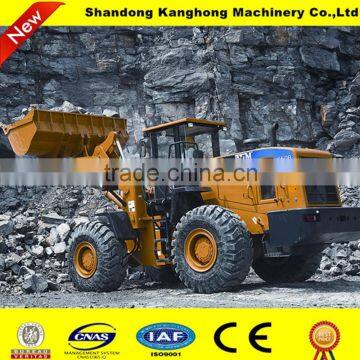

wheel loader with ce made in China 5 ton ZL50F
- Qingdao
- T/T
You May Like
-
small bulldozer with ce made in China 5 ton ZL50F
-
small loader tractor with ce made in China 5 ton ZL50F
-
best saller front end loader mini loader made in China 5 ton ZL50F
-
XEM 5 ton loader with ce for sale ZL50F
-
snow blower from express china supplier ZL50
-
wheel loader from express china supplier ZL50
Product Details
| Condition | New | Brand Name | Kanghong | |
| Model Number | ZL50 | Place of Origin | Shandong, China | |
| Type | Other, Front Loader, wheel loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7934x3060x3483 | Rated Load | 5000 kg | |
| Certification | CE ISO BV | Warranty | 1 year, 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
why choose us?
we are more professional
1.we have 10 years history to produce it.
2.We have more than 300 workers,50 engineers,plant area of more than 70000m2.
3.CE and ISO certification,quality assured.
4.All of the wearing parts come form famous supplier,Caterpillar transmission technology,Isuzu axle,high quality.
5.The first electrophoresis and electrostatic powder spraying line in the field of engineering machinery in China.
6.Each product through rigorous testing before leaving the factory.
7.The best after-sales services,using more ease.
8.We can supply you with OEM and design products as your request.
| 5 t | ||
| Performance | Rated Load | 5000 kg |
| Total weight | 17500 kg | |
| Rated Bucket Capacity | 3.0 m3 | |
| Max.Gradeability | 30° | |
| Dumping Height | 3100 mm | |
| Dumping Reach | 1250 mm | |
| Raising Time | ≤ 6 s | |
| Total Cycle Time | ≤ 11.5 s | |
| Overall Dimensions(LxWxH) | 7934x3060x3483 | |
| Steering Angle | 36.5±1° | |
| Maximum Pulling Force | 170 kn | |
| Min.Turning Radius | 6640 mm | |
| Engine | Model | WEICHAI STEYR WD10G220E22 |
| Type | In-line,Water-cold,Four-stroke,Direct injection | |
| Rated Power | 162 kw | |
| Rated Speed | 2200 rpm | |
| Gear box | Hydraulic Torque Converter | YJ375X |
| Gear Shift | 4 forward,4 backward | |
| Max.Speed | 40 km/h | |
| Drive Axle | Model of Axle | Xuzhou Mtritor |
| Wheel Base | 3200 mm | |
| Drive | Mode | 4-way Drive |
| Hydraulic System | System Working Pressure | 18 Mpa |
| Brake system | Service Brake | Air over hydraulic disc break on 4 |
| Parking Brake | Hand Flexible Shaft Control Disk Brake | |
| Tyre | Type Specification | 23.5/25 |
| Front Tyre Pressure | 0.40 Mpa | |
| Rear Tyre Pressure | 0.35 Mpa | |
