BTO Concertina Razor Barbed Wire Manufacturing
- 1200 Ton / Tons per Month
- Xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | PUERSEN | |
| Model Number | SP-CNDIMA0003 | Material | Other, Steel Wire, Stainless Steel or Steel Wire or Iron Wire | |
| Surface Treatment | Galvanized | Type | Barbed Wire Coil | |
| Razor Type | Other, Cross Razor, Single Razor or Cross Razor |
Product Description
Concertina Razor Wire
Concertina Razor barbed wire is crimped on a hot dip galvanized high tensile spring steel core wire and hence cannot be cut by ordinary means.
It is easily and expediently installation.It has been widly used in airport, key military sites, border line, prison, government, bank, bounding wall of villa, highway, security window ,fence of railway and etc. in many countries,barbed razor wire is welcomed by army and police.
Concertina Razor barbed wire:
1.Materials:galvanized steel sheet and wire, or stainless steel sheet and wire , as client require,
2.Razor thickness:0.5mm
3.Wire diameter:2.5mm
4.Razor width : 15 mm
5.Razor length: 22 mm
6.barb spacing: 26mm--100mm
7.Outside diameter of roll:600 mm
8.Number of loops:33--102
9.Standard spreading length per roll:8m --16m
10.Razor barbed type : cross type
11.Packing : compression rolls,waterproof paper, woven bag packing.
Cross type razor barbed wire(double loops)
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Crosstype |
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |

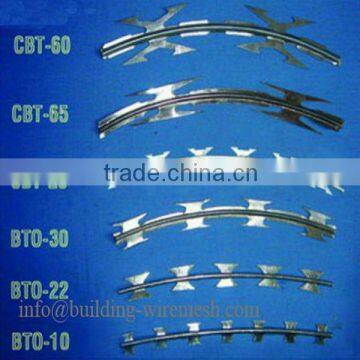

Blade style
Reference No. | Blade Style | Thickness | Core wire diameter | Blade length | Blade Width |
BTO-10 |
| 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 |
BTO-12 |
| 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 |
BTO-15 |
| 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 |
BTO-18 |
| 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 |
BTO-22 |
| 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 |
BTO-28 |
| 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 |
BTO-30 |
| 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 |
CBT-60 |
| 0.6±0.05 | 2.5±0.1 | 60±2 | 21±1 |
CBT-65 |
| 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 |
