LED FPC Board Assembly LED Strip Assembly FPC Board Assembly
US$ 5 - 30
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T Credit Card
You May Like
-
PCB LED Manufacturing ,High Standard PCB Electronics Assembly
-
LED PCBA Assembly
-
LED PCB Assembly
-
T8 Pcba With Chip Led Assembly in Dongguan
-
Best Quality for LED Bulbs, LED Bulbs 1.5 V Advertising Board,LED Destination Board,industrial pc Board
-
Led Tube Pcb Assembly Factory LED Tube Pcb Assembly Service
Product Description
Specifications
LED FPC board assemblyStrict ESD control
Low cost
ISO9001 ROHS
High quality FPC& Flex PCB, Flex PCB Assembly
Our PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. PCB board with parts assembled
4. Electronic testing circuit board or PCBA
5. Fast delivery, anti-static package
6. RoHS Directive-compliant, lead-free
7. One stop service for PCB design, PCB layout, PCB manufacture, components purchasing,
PCB assembly, test, packing and PCB delivery
Technical Specification For PCB assembly FPC assembly
| Number of Layer | 1,2,4 or 6,upto 18 layer |
| Order Quantity | 1 to 50,000 |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Board Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
| Board Cutting | Shear,V-score,Tab-routed |
| Board Thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper Weight | 1.0, 1.5, 2.0 oz |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Silk Screen Min Line Width | 0.006'' or 0.15mm |
| Max Board Dimensions | 20 inch*20inch or 500mm*500mm |
| Min Trace/Gap | 0.10mm, or 4mils |
| Min Drill Hole Diameter | 0.01'',0.25mm, or 10mils |
| Surface Finish | HASL immersion gold |
| Board Thickness Tolerance | ±10% |
| Copper Weight Tolerance | ± 0.25 oz |
| Minimal Slot Width | 0.12'', 3.0mm, or 120mils |
| V-Score Depth | 20-25% of board thickness |
| Design File Formate | Gerber |

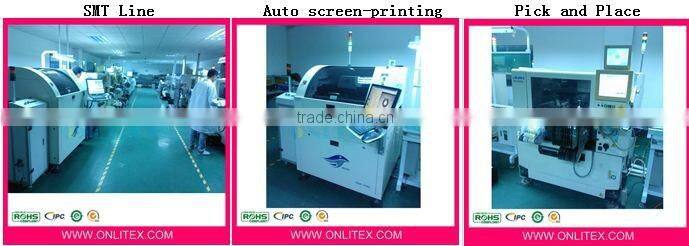

FPC assembly factory overview
FPC assembly PCBA factory ISO9001 certification
