FTF2 2/2 BTS Auto Ventilation System
- ningbo or shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Electric Current Type | DC | Mounting | Wall Fan | |
| Blade Material | Cast Iron | Place of Origin | Zhejiang, China | |
| Brand Name | XINJIAN | Model Number | FTF2 | |
| Voltage | DC 48V | Power | 44W | |
| Air Volume | 800 m3/h | Speed | 3200RPM | |
| Certification | CE, ROHS |
Product Description
Specifications
auto air ventilation system for BTS/ communication shelter.DC48V, axial fan, rain cover, safe-guard.
suit brick wall

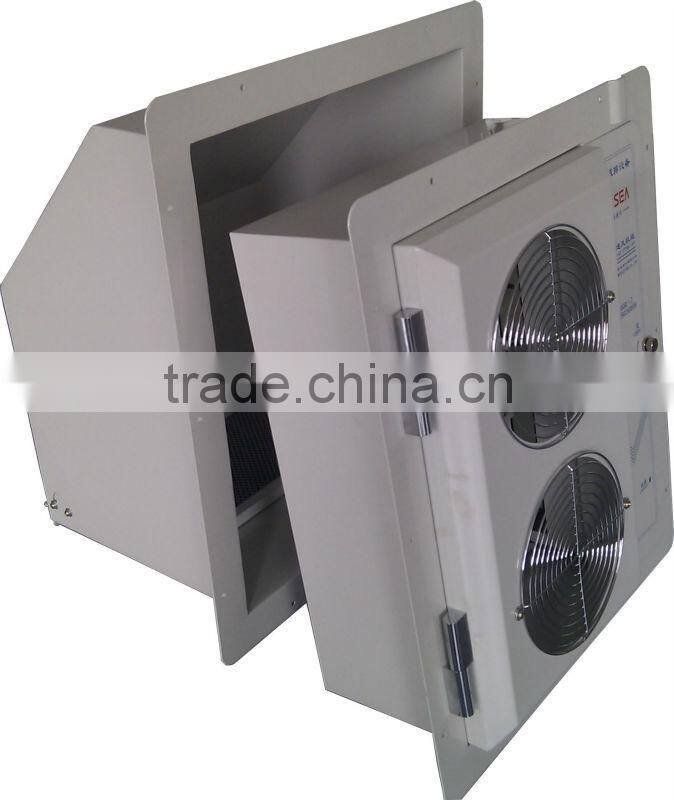

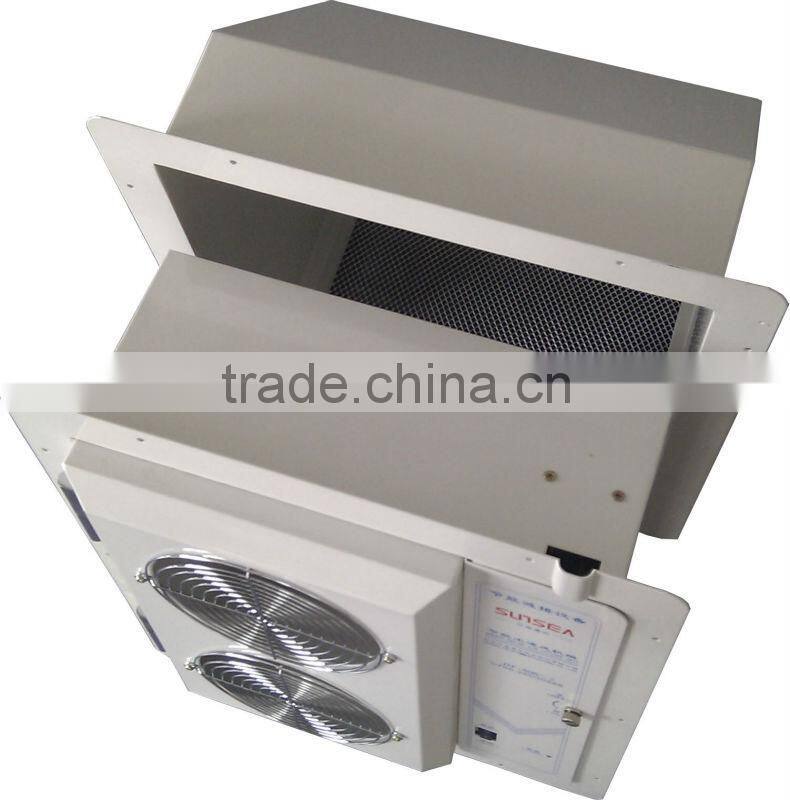

FTF2 2/2 BTS auto ventilation system
Air ventilation system can import clean and cold air to BTS or shelter to cool , and exhaust hot air. And it can work with A/C, instead of A/C for cooling in most time of year. This not only can save energy, but also can longer A/C life time.
l Use DC axial fan, can choose another type of fan with same size based on requirements.
l Suit for sandwich wall, width is between 70mm and 100m, can customize split type to suit other type of wall.
l Contains air-intake unit and air-outtake unit.
l Choose the number of fan based on size and heat release of BTS/ shelter, 2 pcs or 3 pcs or 4 pcs or 6 pcs. Ventilation of air-outtake unit shall smaller than air-intake unit to avoid negative pressure.
l Air-outtake unit can use nature exhaust method, without DC axial fan. Choose the number of exhaust hole based on requirements, 2 or 4 or 6.
Parameter | Unit | Value |
Rating voltage | V | DC 48 |
Theory ventilation capability per fan | m3/h | 400 |
Speed of fan | RPM | 3200 |
Current per fan | Amp | 0.4 |
Power per fan | W | 19.2 |
Use life per fan @ 40°C | Hours | 50000 |
Size per fan | mm | 172x150x51 |
Work time of damper | number | ≥100,000 |
Ventilation efficiency | % | ≥65 |
Switch time for two groups of fan | Hours | 3 |
Fan work together temp. | °C | 43 or 48 (programmable) |

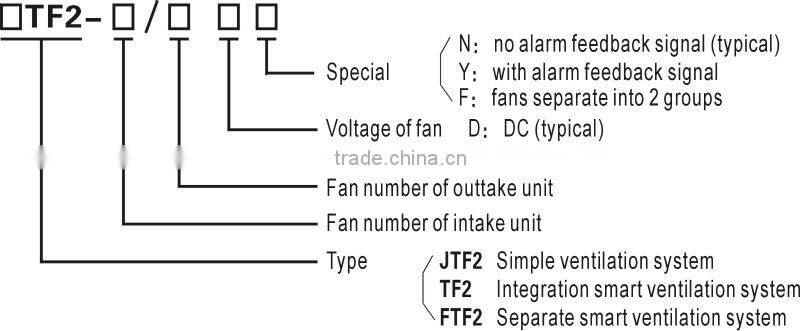

Type:

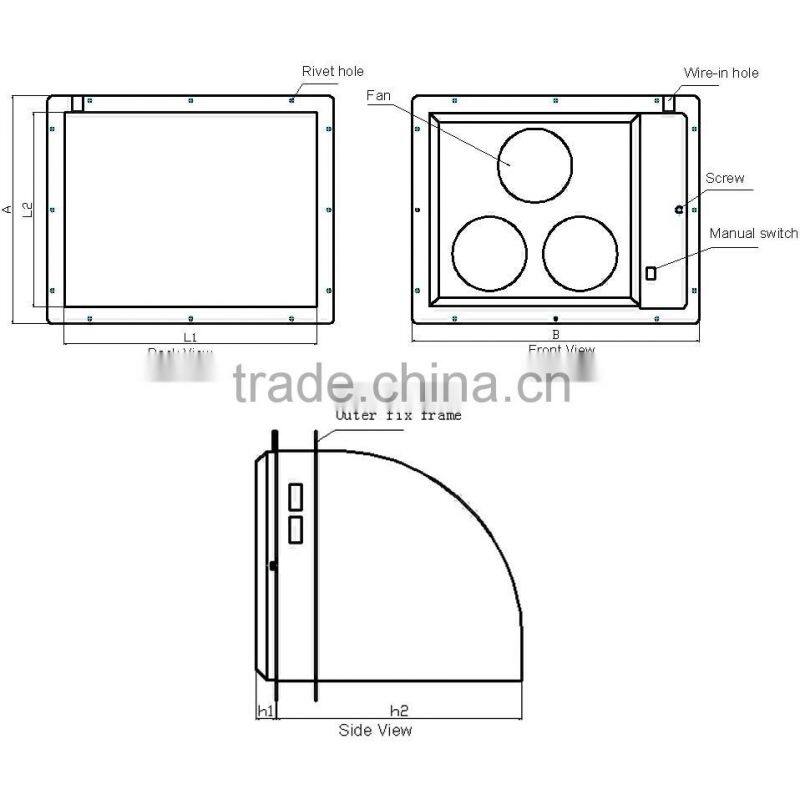

Dimension:
Number of fan | Dimension (unit:mm) | |||||
L1 | L2 | A | B | h1 | h2 | |
2 | 320 | 385 | 452 | 388 | 34 | 410 |
3 | 500 | 385 | 452 | 568 | 34 | 410 |
4 | 500 | 385 | 452 | 568 | 34 | 410 |
6 | 670 | 385 | 452 | 738 | 34 | 410 |

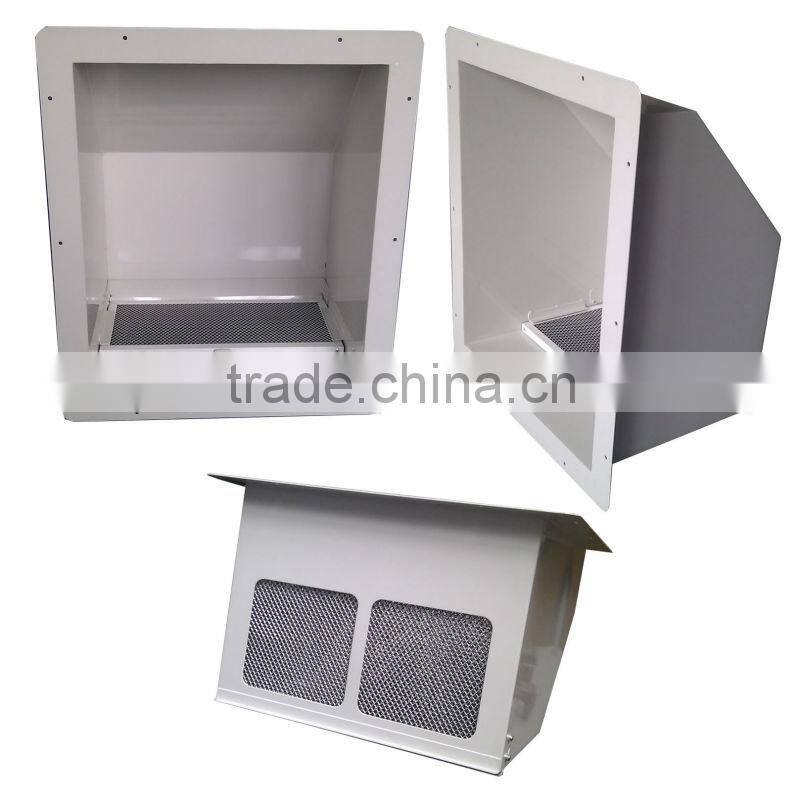

Nature exhaust fan unit has the same size as above table.
BTS/ COMMUNICATION SHELTER
HANGZHOU XINJIAN ELECTRINOC CO., LTD. is a ISO9001 certified manufacturer, and also is a hi-tech company. It has been specialized in designing and producing industrial control solution since 1997. All products are designed and made for the global market, and we’ve offered OEM/ODM service to world-class brands. We have been highly recognized not only for its good quality but also excellent after-dales services both in domestic and international market.
